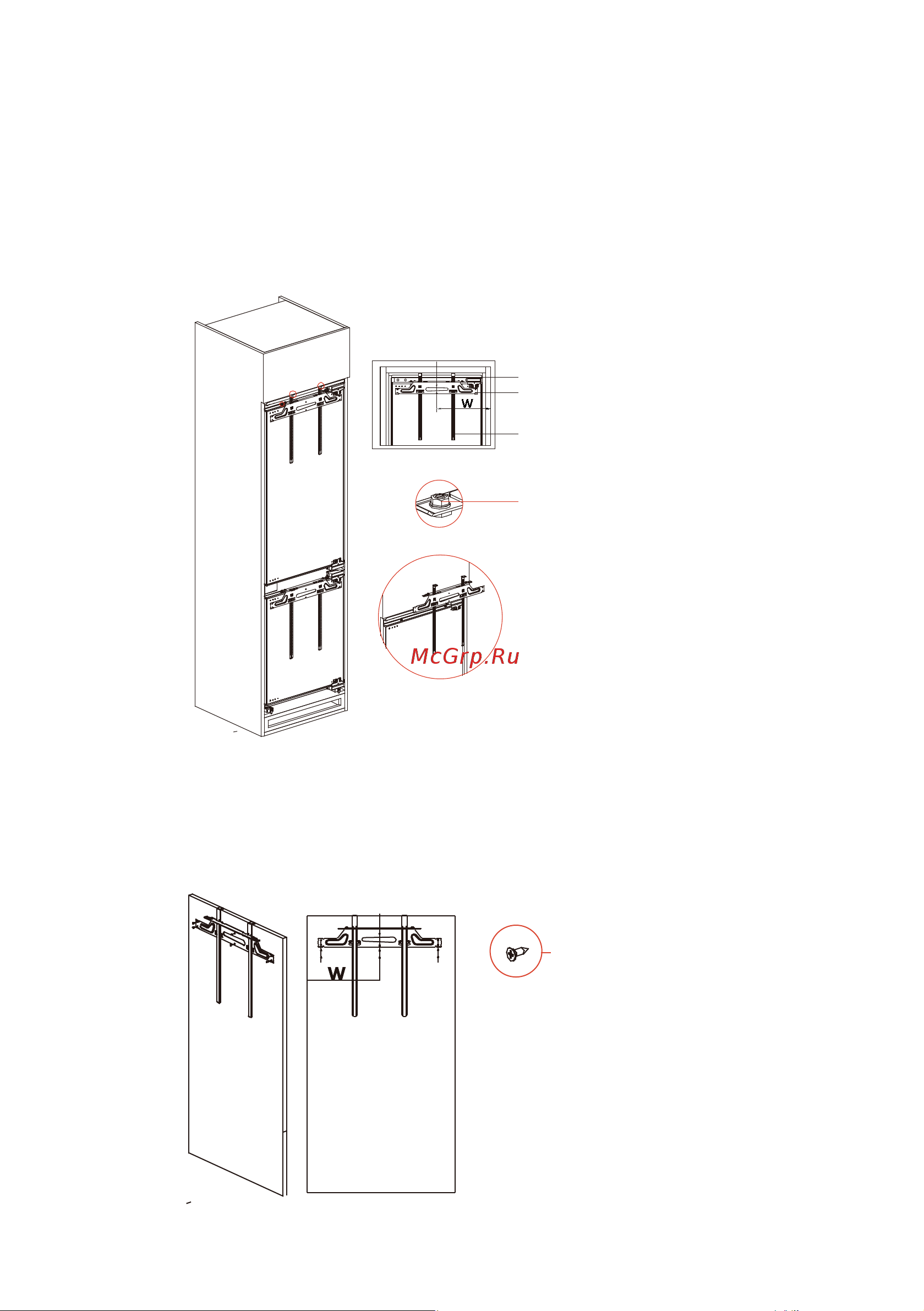

Установка верхней двери
Закройте верхнюю дверцу холодильника, выньте установочную планку для верхней
дверцы холодильника и поместите ее в установочное отверстие верхней крепежной
пластины дверцы и прикрепите ее к верхней торцевой поверхности шкафа.
Отрегулируйте крепежную пластину в сборе по центру и измерьте расстояние (W) между
центром среднего крепежного отверстия и боковым краем шкафа. Сохраняйте
положение установочного зажима неизменным; ослабьте гайки фланца узла
фиксирующей пластины и снимите узел фиксирующей пластины и установочную
планку;
Шарнир
Крепежная пластина
Установочная планка
Фланцевая гайка
Саморез с потайной головкой,
крестовый шлиц
Переверните верхнюю дверцу шкафа; прикрепите установочную планку к верхнему концу
двери шкафа, а крепежную пластину в сборе - к дверной панели. Отрегулируйте
фиксирующую пластину в сборе так, чтобы расстояние между ее центральной линией и
боковым краем деревянной двери было W, и зафиксируйте ее винтами. После установки
снимите установочную планку;
RUS-12
