Установка прибора в шкаф

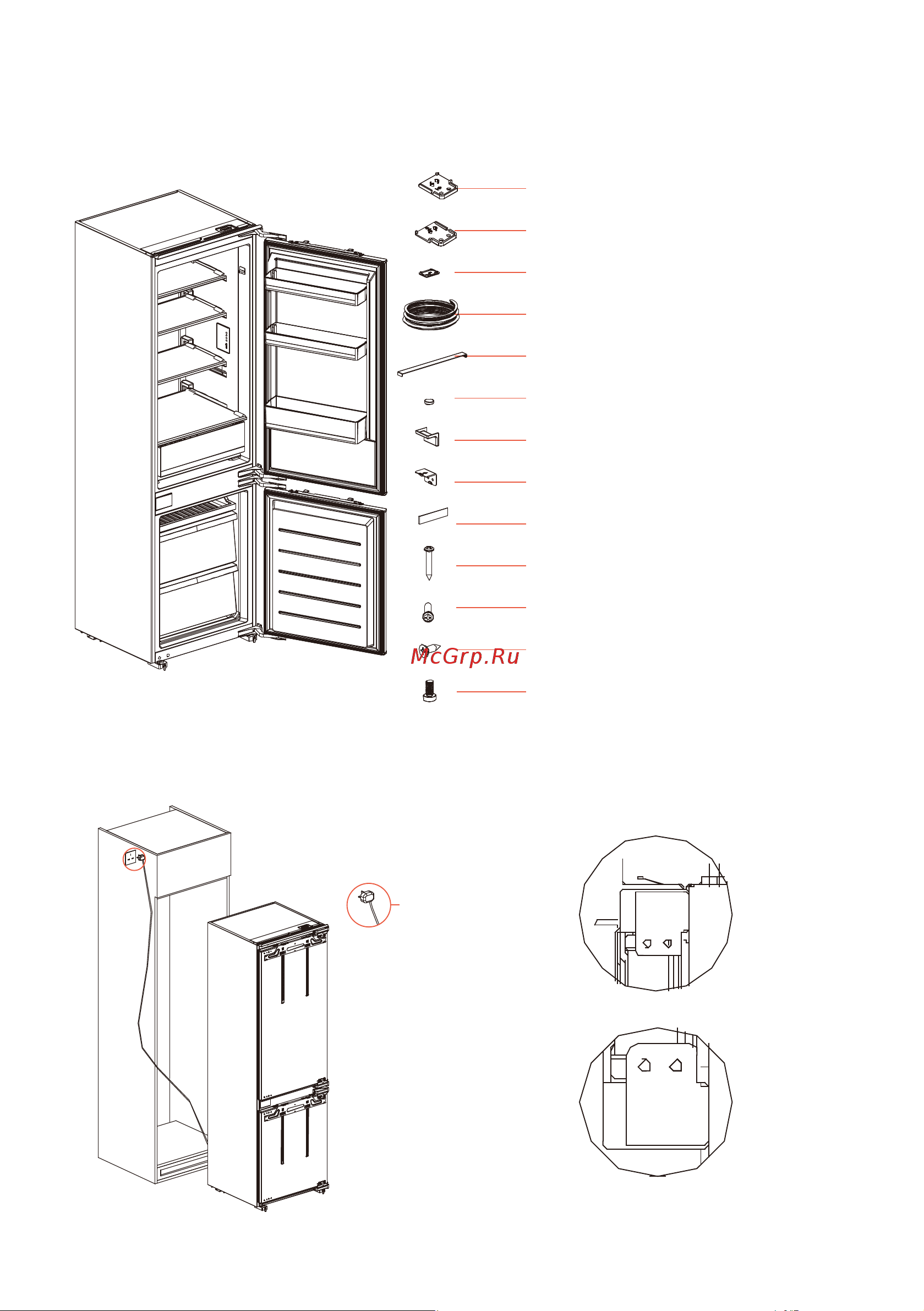

Распакуйте холодильник, достаньте из него установочный комплект.
Декоративная накладка нижнего
шарнира*2
Декоративная накладка верхнего
шарнира*2
Заглушка верхнего козырька*2
Уплотнительная прокладка*1
Декоративная накладка на верх двери*2
Заглушка нижней опоры*4
Декоративная накладка на низ двери*4
Нижняя опора двери*4
Декоративная накладка на шарнир*4
Саморез с потайной головкой,
крестовым шлицем*4
Саморез с овальной головкой,
крестовым шлицем*4
Саморез с потайной головкой,
крестовым шлицем*24
Винт с крестовым шлицем*4
Вилка
Верхний
шарнир
Нижний
шарнир
Вставьте холодильник в установочный шкаф. Вставьте вилку в розетку. Установите
верхнюю и нижнюю декоративную накладки на бока шарнира, как показано на рисунке.
RUS-10
