Установка прибора в шкаф

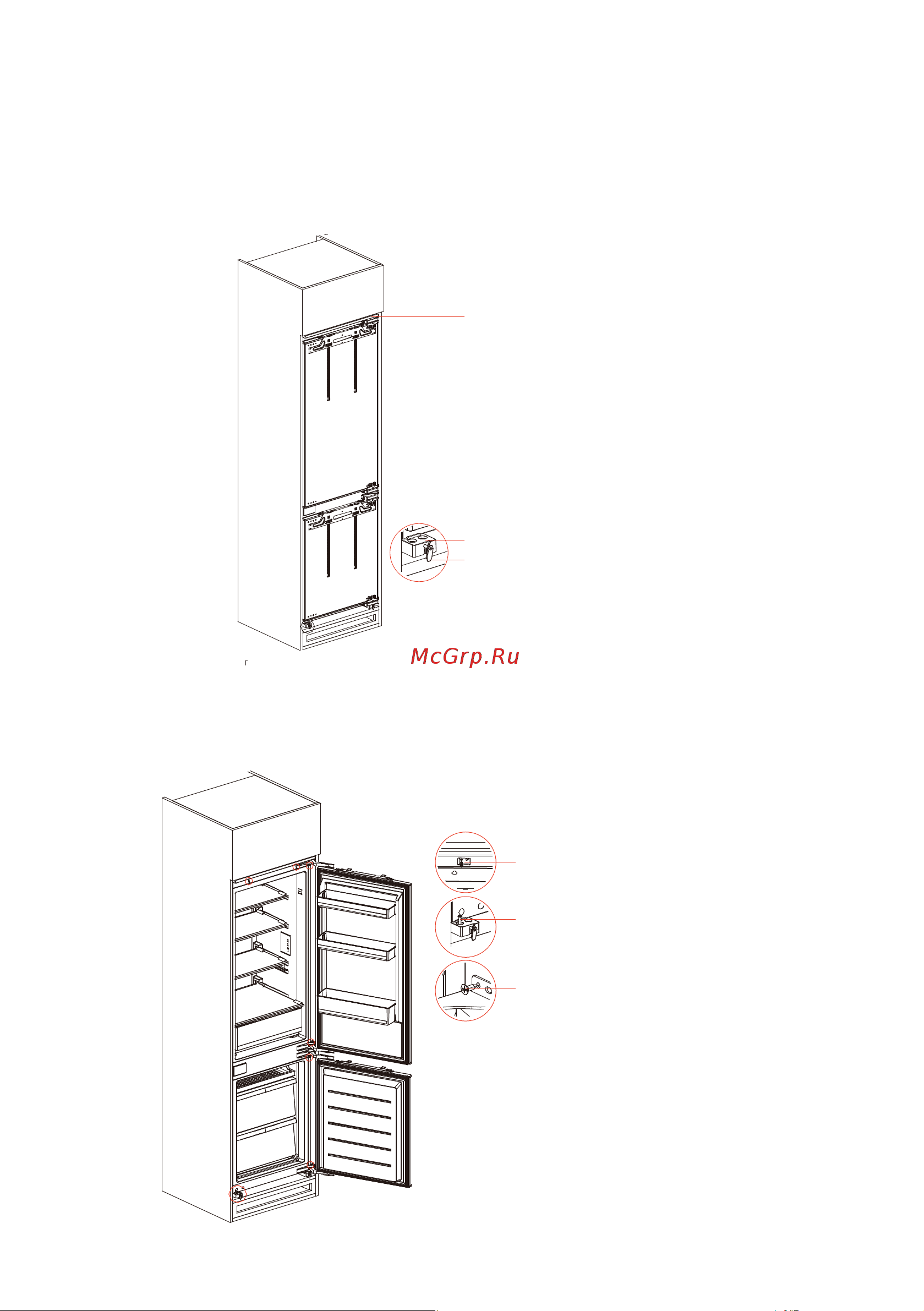

Установите холодильник в шкаф не полностью. Выдвините крючки-ограничители из
опор холодильника. Затем вставьте его так, чтобы края верхнего козырька равномерно
прилегали к верхнему краю шкафа, а крючки-ограничители опорных ножек полностью
касались нижнего края шкафа. Будьте осторожны и не пережмите шнур питания в
процессе установки.
Козырек
Опоры
Нижние ограничители
Прикрепите основание холодильника к шкафу при помощи саморезов. Задвиньте
ограничители обратно в основание холодильника.
Прикрепите верхний козырек к шкафу при помощи саморезов.
Откройте двери холодильника и прикрепите петли при помощи саморезов к стенкам шкафа.
Саморез с овальной головкой, крестовый шлиц
Саморез с потайной головкой, крестовый шлиц
Саморез с потайной головкой, крестовый шлиц
Убедитесь, что в процессе установки не
возникло перекоса.
RUS-11
