ВСТРОЙКА

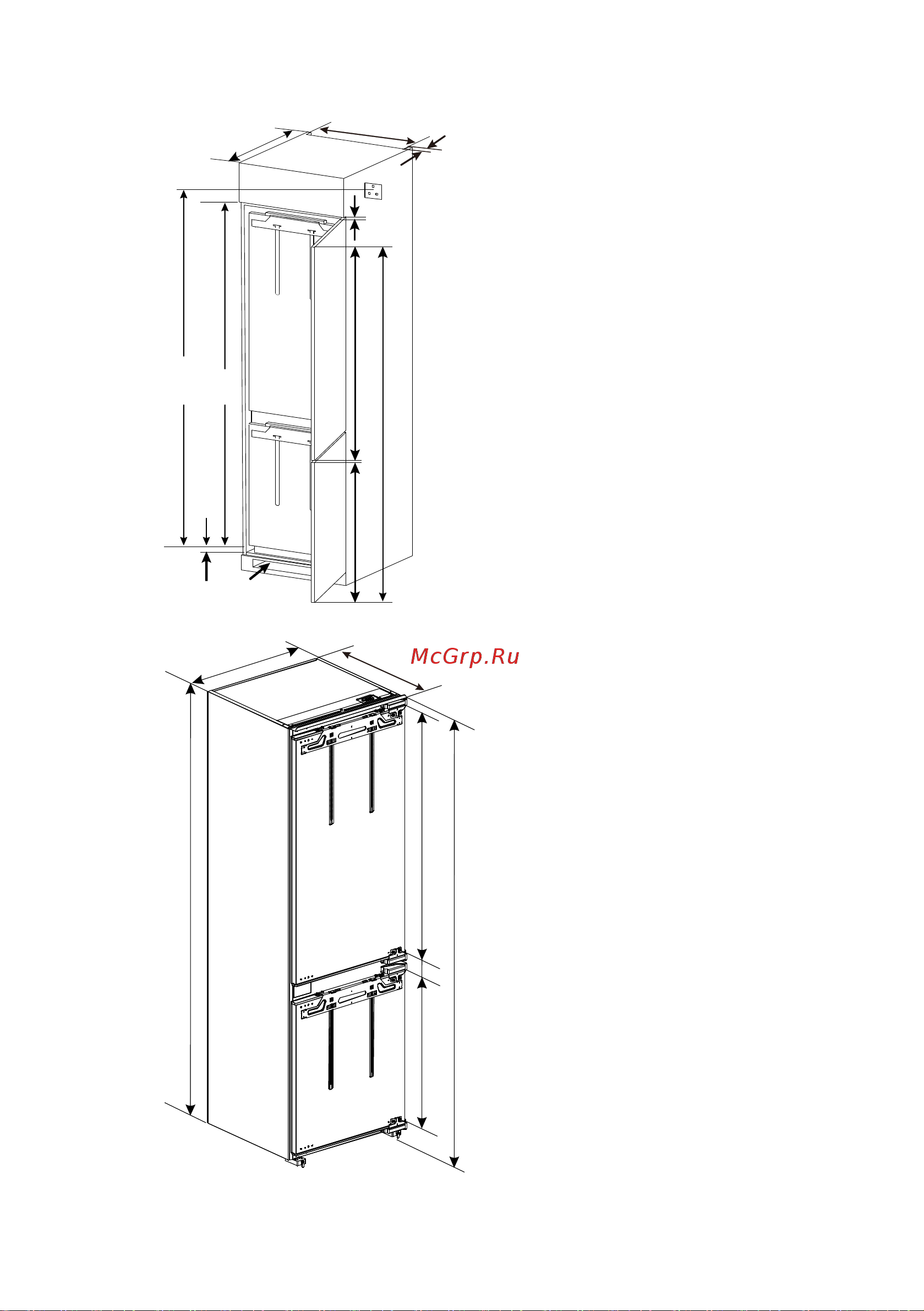

Размеры установочного шкафа
Пожалуйста, перед установкой
холодильника прочитайте внимательно
все прилагающиеся инструкции, и
сохраните руководство по эксплуатации
для возможного обращения в будущем.
Убедитесь, что обеспечено достаточное
пространство для вентиляции.
Холодильник не должен находиться в
контакте или непосредственной
близости от труб водоснабжения, газа,
канализации или металлических
объектов.
555~562mm
>
50mm
560mm
1071+A~1079+Amm697+Amm
1776+2A~1784+2Amm
4mm
A
1776~1784mm
>
A:толщина основания
шкафа
200cm
2
1800~2000mm
>
4mm
1785
63
1007622.5
1770
540
550
Размеры прибора
RUS-9
