12
Note: Be careful not to squeeze the power cable. A fire may be caused if the power
cable is damaged.

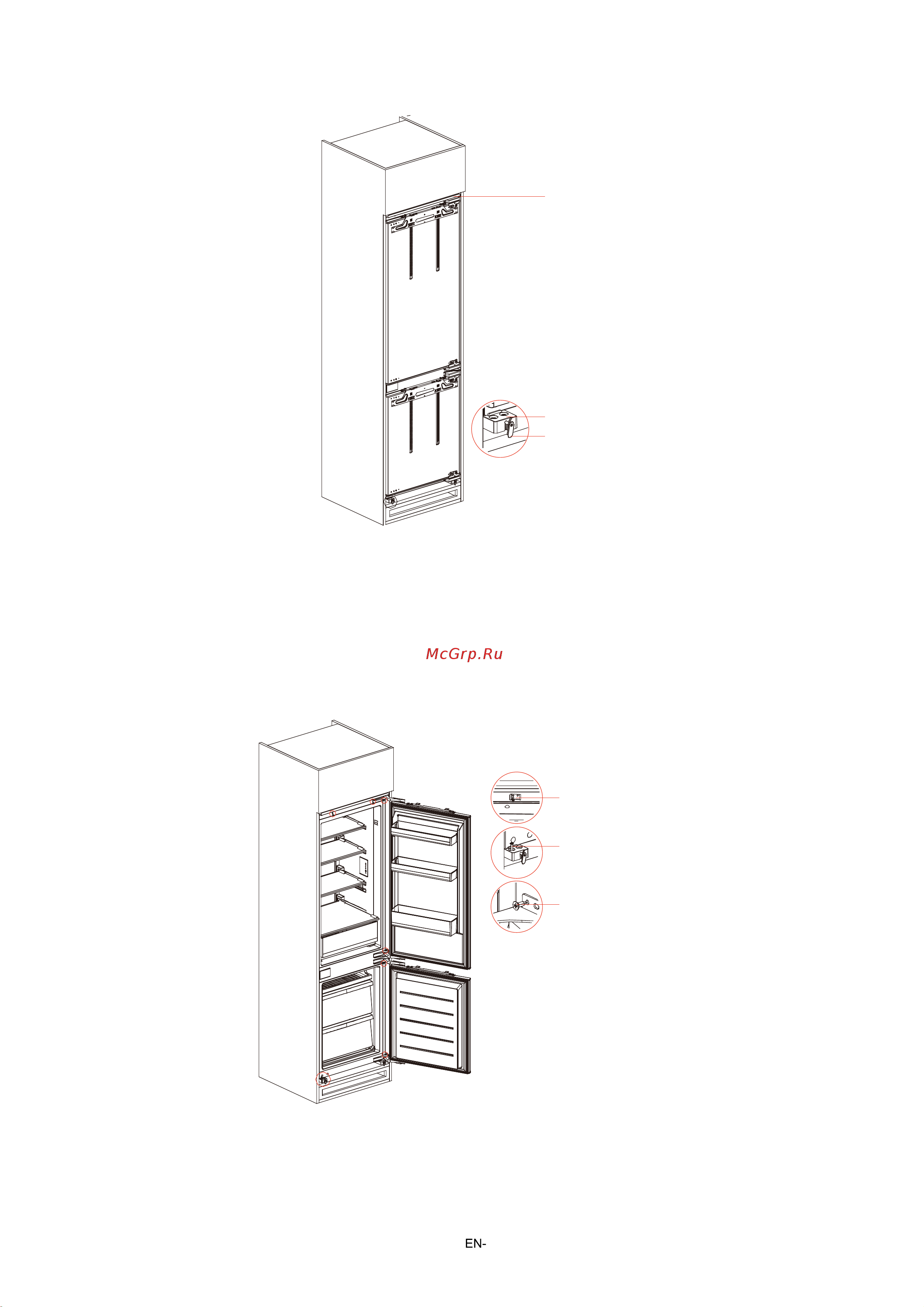

d. Fix the bottom support (with cross recessed countersunk head self-tapping screw) and the top
baffle (with cross recessed oval head self-tapping screw) of the refrigerator, then open the fridge and
freezer doors, and lock the hinges (with cross recessed pan head self-tapping screw). During the
fixing process, it is necessary to ensure that the refrigerator has no deflection;
Top baffle
Bottom support
Limit hook
Cross recessed oval head
self-tapping screw
Cross recessed countersunk
head self-tapping screw
Cross recessed pan head
self-tapping screw
