Midea MDRE354FGF01M [16/57] Installation of lower door
![Midea MDRE354FGF01M [16/57] Installation of lower door](/views2/2017606/page16/bg10.png)
14

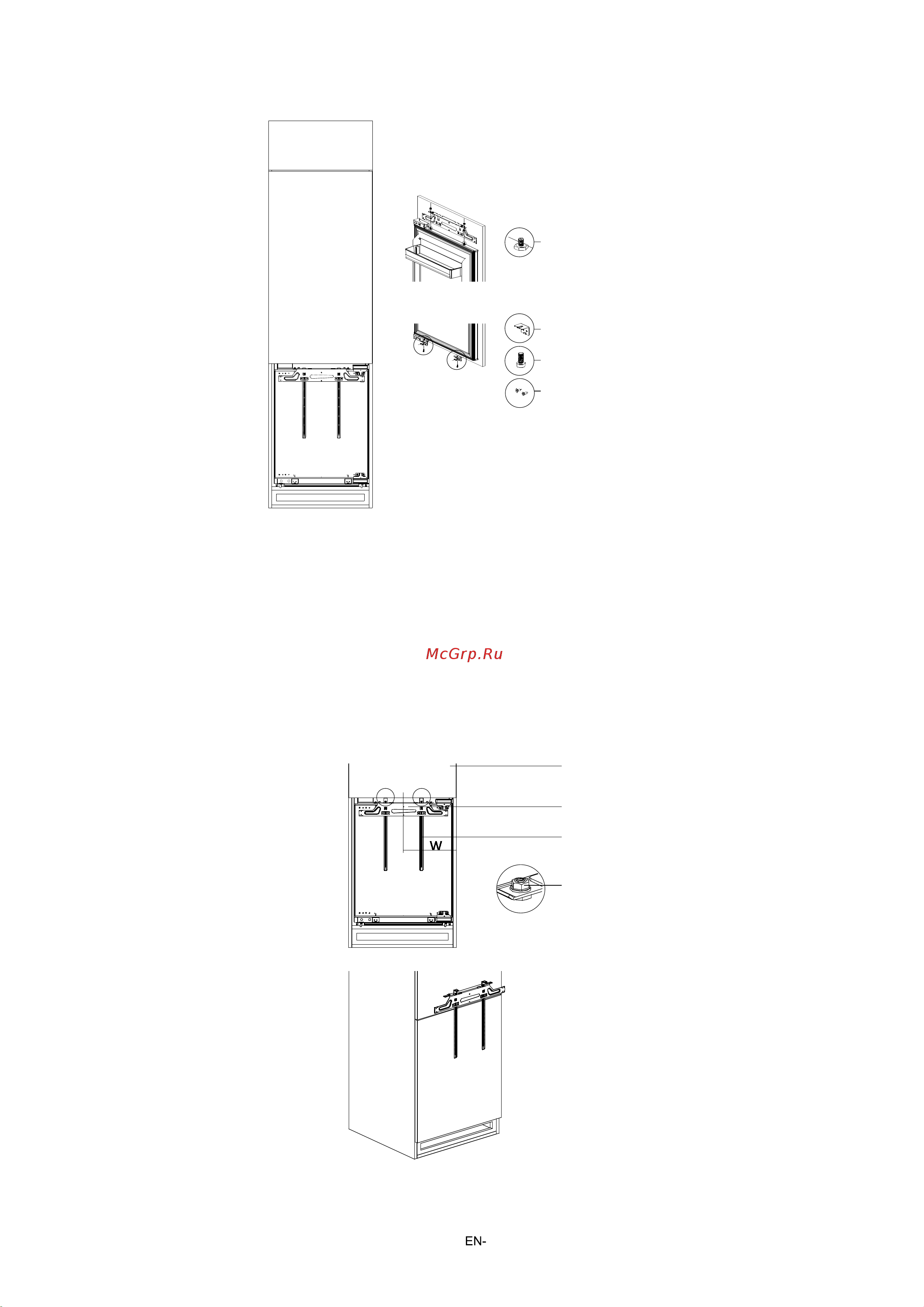

6). Installation of lower door
a. Close the lower door of the refrigerator, take out the positioning strip on the lower door of the
refrigerator and place it in the positioning hole of the lower door fixing plate, and attach it to the lower
end surface of the upper door of cabinet. Adjust the fixing plate assembly to make it centered, and
measure the distance (W) between the center of the middle fixing hole and the side edge of the
cabinet. Keep the position of the pos
itioning clip unchanged; loosen the flange nuts of the fixing plate
assembly, and remove the fixing plate assembly and positioning strip;
Stud
Door bottom support
Cross recessed countersunk head
thread forming screw
Cross recessed pan head
self-tapping screw
Upper door of cabinet
Positioning strip
Flange nut
