15

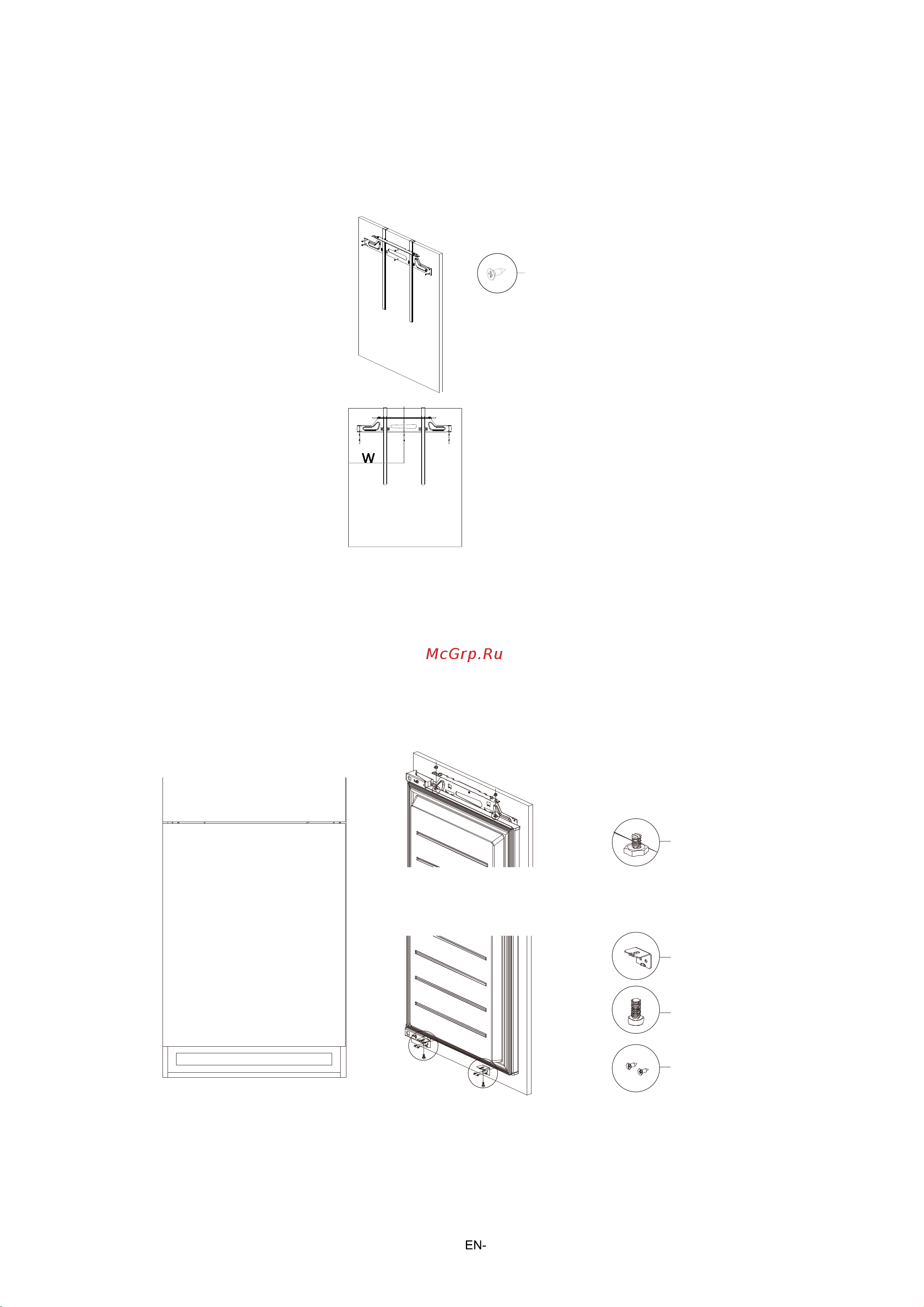

b. Turn over the upper door of cabinet; let the positioning strip cling to the upper end of the wooden
door, and the fixing plate assembly cling to the door panel. Adjust the fixing plate assembly so that the
distance between its center line and the side edge of the wooden door is W, and lock it with screws.
Remove the positioning strip after installation;
c. Place the assembled door on the stud of refrigerator door, then close the door to check the
attachmen
t between wooden door and cabinet, and fasten it with flange nuts after confirming the
closing effect. Then install the door bottom support, and lock the refrigerator door and upper door of
cabinet with cross recessed countersunk head thread forming screws and cross recessed pan head
self-tapping screws. Refer to Adjustment to cabinet doors for the adjustment of cabinet doors.
Cross recessed pan
head self-tapping screw
Stud
Door bottom support
Cross recessed countersunk
head thread forming screw
Cross recessed pan
head self-tapping screw
