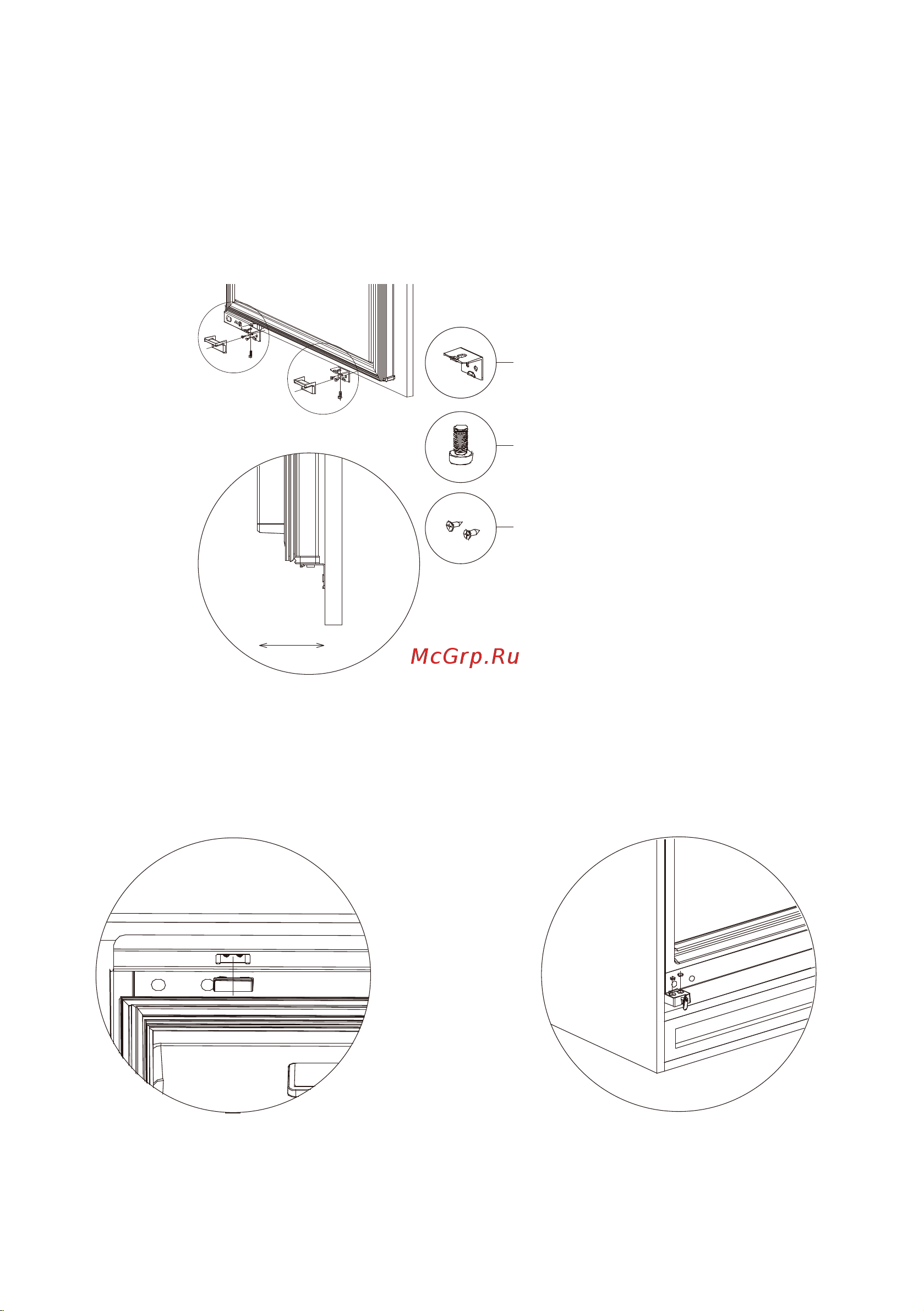

Прикрепление к нижней стороне двери:
• Слегка ослабьте винты для формирования резьбы с потайной головкой и
крестообразным шлицем, переместите дверцу вперед и назад, чтобы
отрегулировать переднее и заднее положение (Y) (около 5 мм), и зафиксируйте
винты с потайной головкой с крестообразным шлицем после того, как она будет
отрегулирована до нужного положения;
• Зафиксируйте дверь, завинтив саморезы с полукруглой головкой и
крестообразным шлицем, чтобы завершить регулировку и установку двери
Y
Нижняя опора двери
Винт с потайной головкой,
крестовый шлиц
Саморез с потайной
головкой, крестовый шлиц
Завершение установки
• Установите верхнюю заглушку козырька;
• Установите заглушку нижних опор
RUS-16
