![Midea MDRE354FGF01M Руководство по эксплуатации онлайн [43/57] 785852](/views2/2017606/page43/bg2b.png)

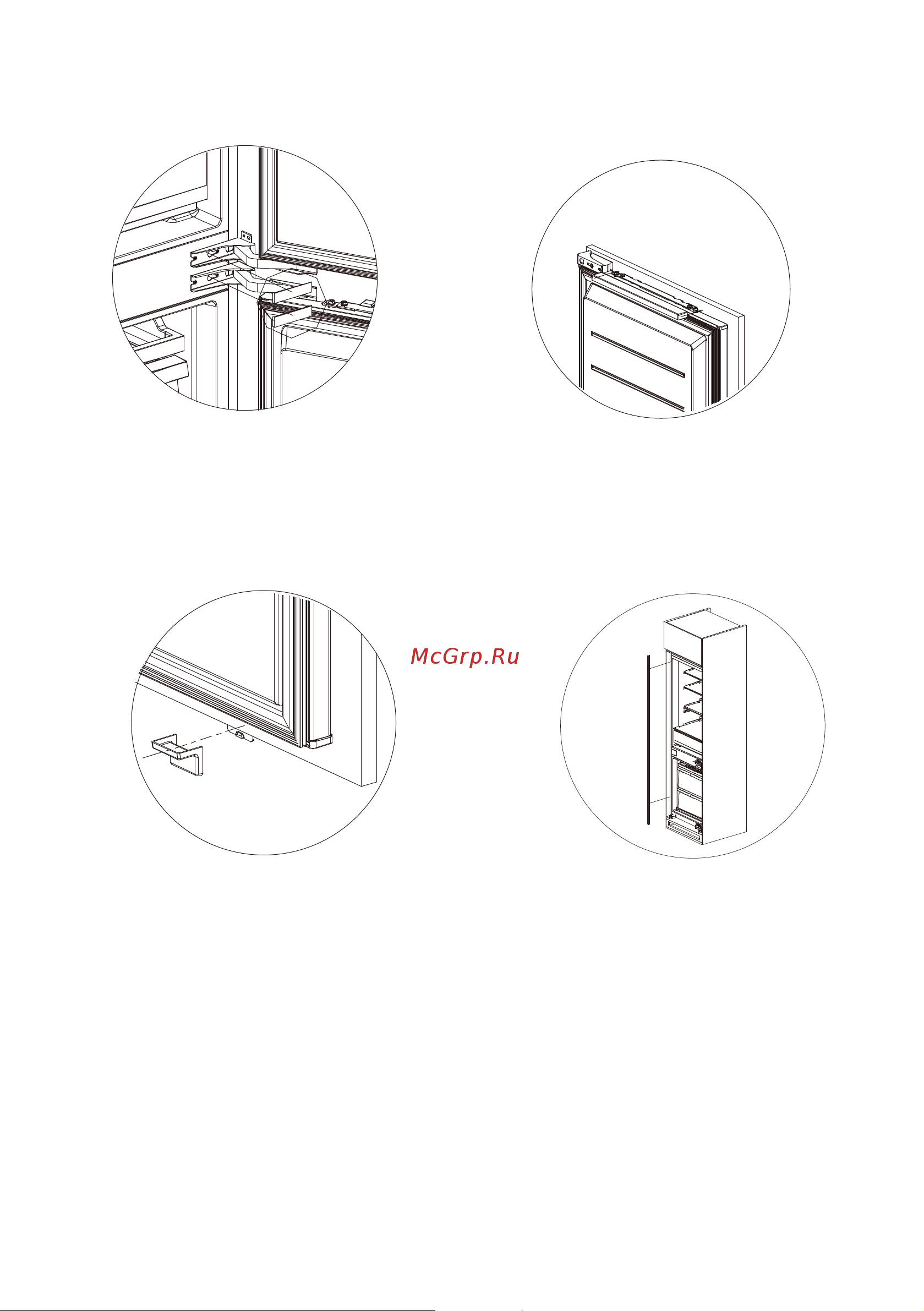

• Установите декоративную накладку на верх дверцы;
• Установите уплотнительную прокладку
• Установите накладку на шарнир;
• Установите декоративную накладку на верх дверцы
RUS-17
