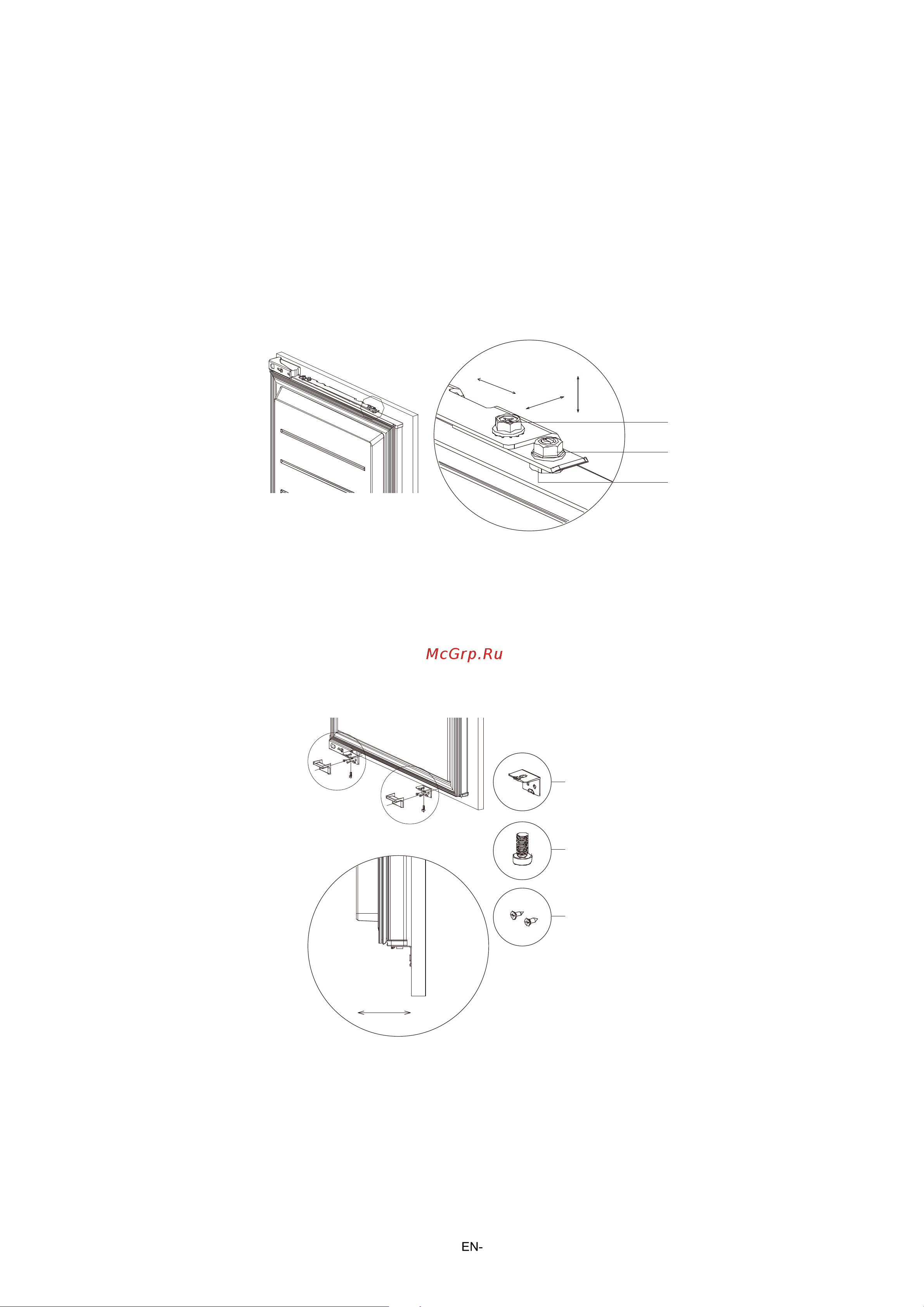

7). Adjustment to cabinet doors
a. Adjustment to upper end of cabinet door
Adjust height (Z) (about 5 mm) by adjusting the nuts on the stud with a wrench;
Slightly loosen the flange nuts, move the door leftward and rightward to adjust its position (X)
(about 5mm), and fasten the flange nuts after it is adjusted to a proper position;
Slightly loosen the cross recessed hexagon head screws, move the door body back and forth to
adjust the front and back position (Y) (about 5mm), and tighten the Cross re
cessed hexagon
head screw after it is adjusted to a proper position;
b. Adjustment to lower end of cabinet door
Slightly loosen the cross recessed countersunk head thread forming screws, move the door
back and forth to adjust the front and back position (Y) (about 5mm), and lock the cross
recessed countersunk head thread forming screws after it is adjusted to a proper position;
Lock the door by locking the cross recessed pan head self-tapping screws, so as to complete the
adjus
tment and installation of the door.
8). Closing of installation
a. Install the top baffle cover;
b. Install the bottom support cover;
X
Y
Z
Cross recessed hexagon head screw
Flange nut
Stud
Door bottom support
Cross recessed countersunk
head thread forming screw
Cross recessed pan head
self-tapping screw
Y
