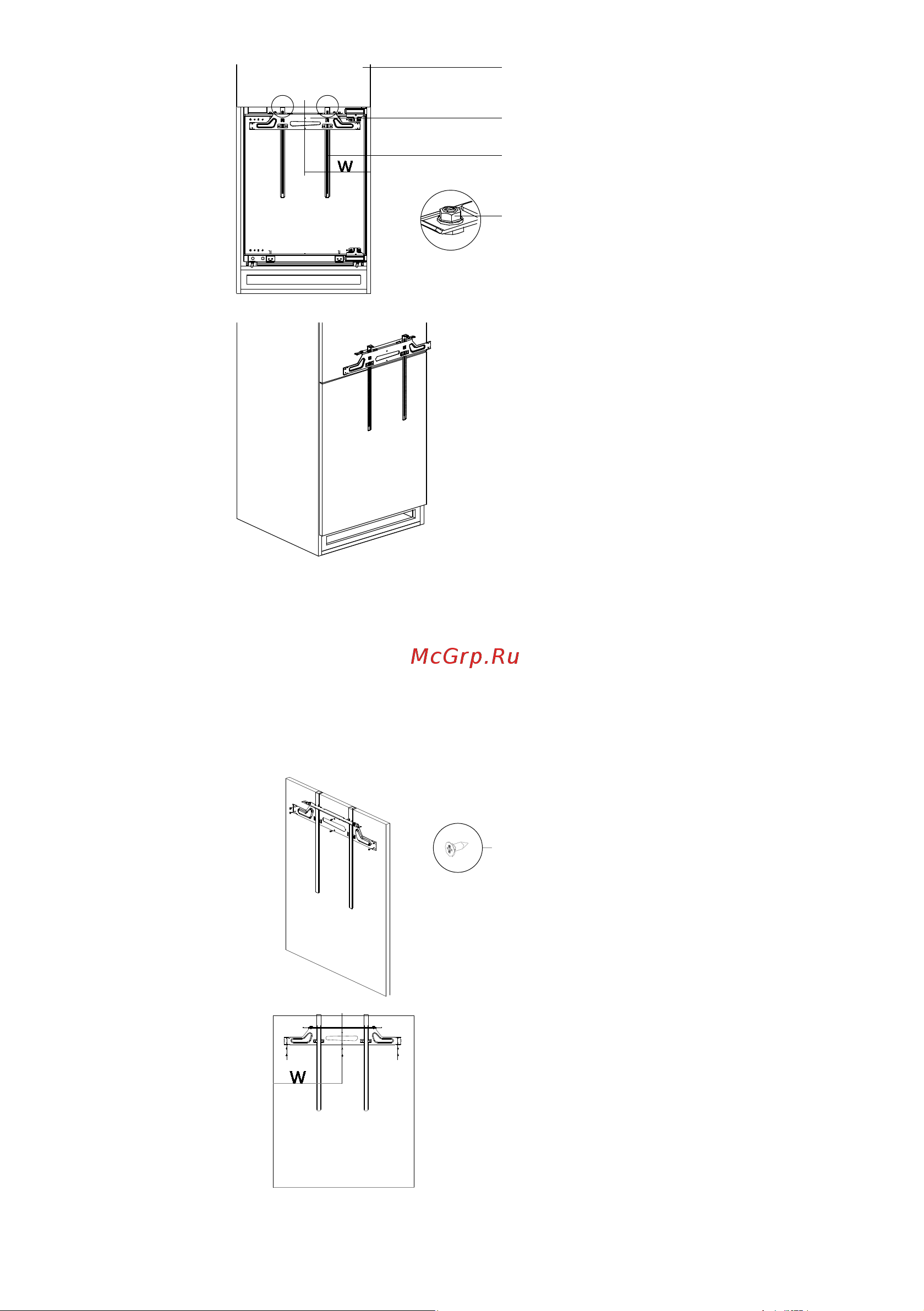

Верхняя дверца шкафа
Установочная планка
Гайка
Переверните декоративную дверцу установочного шкафа; прикрепите установочную планк
у
к верхнему концу декоративной дверцы, а крепежную пластину в сборе - к дверной панели.
Отрегулируйте фиксирующую пластину в сборе так, чтобы расстояние между ее
центральной линией и боковым краем деревянной двери было W, и зафиксируйте ее
винтами. После установки снимите установочную планку;
Саморез с потайной головкой,
крестовый шлиц
