12
Z9 Series
3) HDD 분리

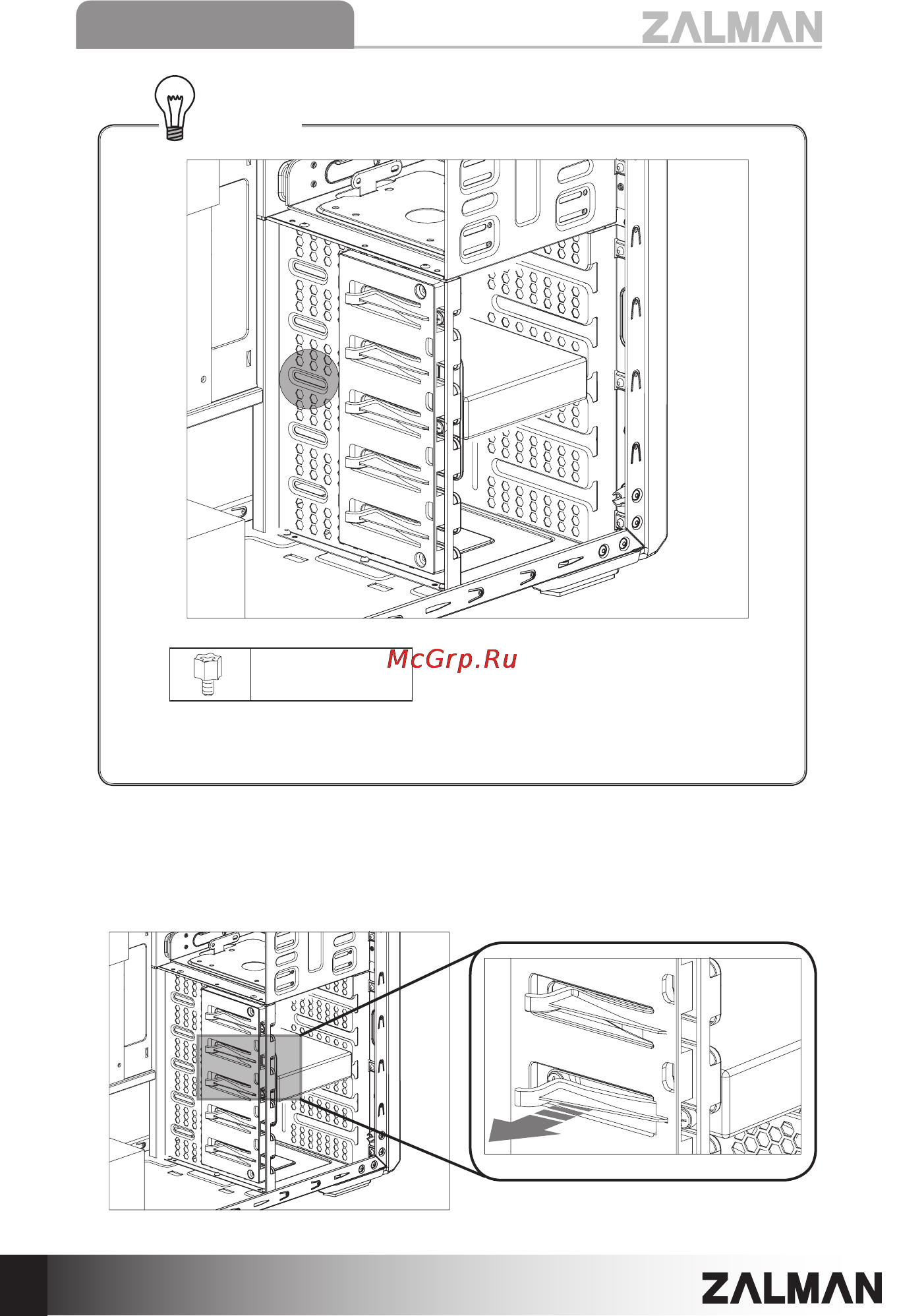

HDD를 분리할 때는 고정레버를 적당히 밖으로 당긴후 분리하십시오.
참 고
조립 후 시스템을 이동할 때는 해당위치에 E 나사로 HDD를 고정해 주시기 바랍
니다.
E 나사
