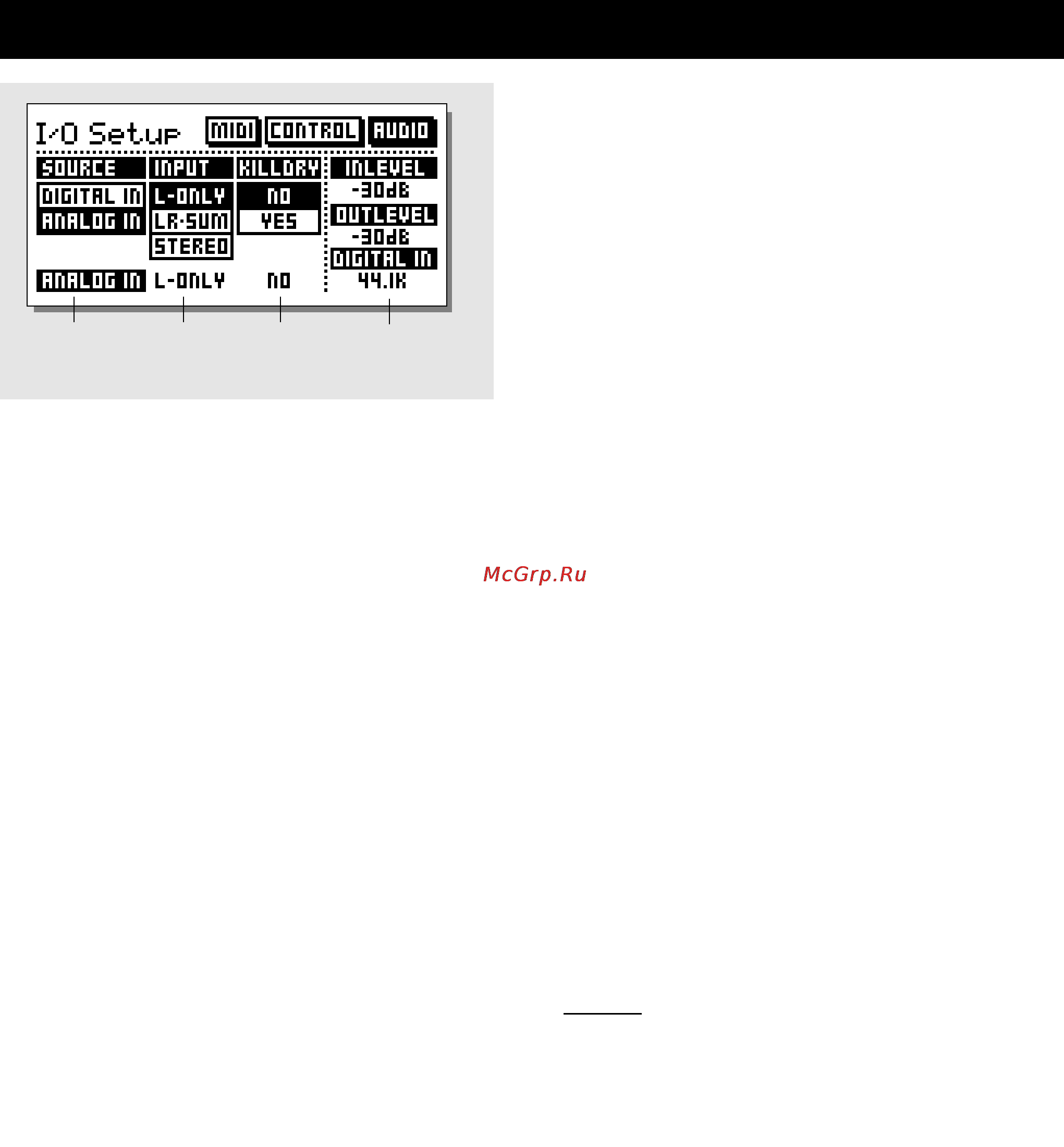

Tc Electronic G-FORCE [23/63] I o setup

Digital clock

indicator

Kills all

dry signal

Input

signal

Input

selector

The parameters in the I/O Setup contain setups of all

the G-Force’s external connections: - MIDI, Pedal,

Digital and Analog Audio. In the I/O Setup display, you

can select between MIDI, Control and Audio using the

< > Arrow keys. All settings of the I/O Setup are global,

i.e. they do not change with the preset.

I/O SETUP

Audio

To set up the Audio In/Out parameters, press the I/O

Setup key and use the < > Arrow keys to select Audio.

The Source

With this parameter you can select between the Digital

input of the G-Force, or the Analog input. G-Force is limited

to 44.1kHz sample rate at both Analog and Digital inputs.

The Input

The G-Force can use the Left input only (mono), the sum

of left and right input (LR-sum), or both left and right input

(stereo). If you are only using one input on the G-Force,

you should select L-Only.

If you want to input two mono sources, you can select LR-

sum, this will enable both left and right to be summed

together

Killdry

The Killdry function enables you to remove all dry (direct)

signal in the G-Force. This function is very useful when you

are running the G-Force in a parallel setup.

NOTE: When Killdry is active, the overall bypass key will

work as a mute. Since you killed all of the dry signal and

are bypassing the effect there is no output. The blocks will

preserve their internal relationships by keeping the mix

level of the effect.

In Level, Out Level, Digital In

These are read-only parameters displaying the Input level

(adjusted with the front panel controls), Output level

(adjusted with the front panel controls), and the Digital

input sample rate (shown only when you are using the

digital input).

Note: The input level of the G-Force automatically

optimizes the signal to noise ratio via a small relay in the

input section. You may hear a small click from this relay

when the input is being adjusted.

MIDI

In the MIDI section you set up the parameters of the

global MIDI in the G-Force, meaning program change,

MIDI mapping etc.

Basic Channel

The basic MIDI channel of the G-Force. This is the channel

that you should transmit Prg. changes on to change

presets in the G-Force.

Note: The G-Force’s Modifiers are configured separately,

meaning that they may refer to other MIDI channels.

Program change

With this parameter you set up how the G-Force should

respond to incoming program changes. There are three

possibilities:

Disabled - Will cause the G-Force to ignore any incoming

program change. Preset Recall - Will enable the G-Force to

use program changes sent on the “Basic channel”.

+ Partial Recall - When this value is selected, the G-Force

will still respond to program changes sent on the basic

channel, but at the same time each of the eight effect

blocks will have their own MIDI channels enabling you to

recall a single block without affecting the rest of the preset.

The channel numbers of the blocks are continuous from

the Basic channel.

Example:

If the basic channel is set to 1, the blocks

channels will be Compress ch. 2, Filters ch. 3, Pan ch. 4 etc.

Bank Selection

This function is a new MIDI standard, making it possible to

Recall presets above #128. The parameter determines

whether the G-Force should respond to this message or

Tc Electronic G-FORCE [23/63] I o setup
