Kranzle Ventos 35 [15/40] Vento_15
![Kranzle Ventos 35 [15/40] Vento_15](/views2/1119857/page15/bgf.png)
15
Handling

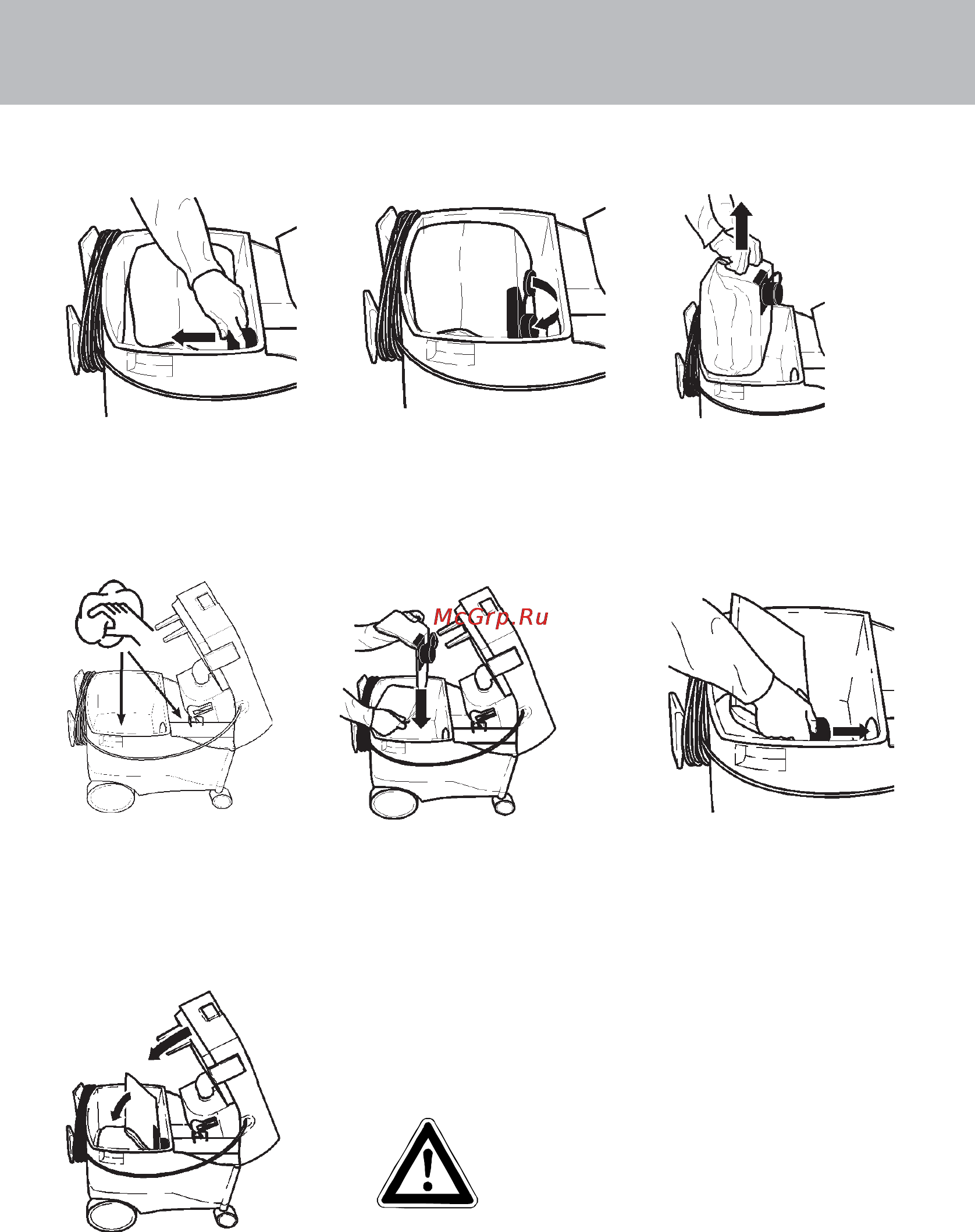

Changing the filter bag
To change the filter bag first open the cleaner.
Remove filter bag cap
from suction orifice
(see print on bag).
Close the opening with
the plastic cap.
Lift the bag out of the dirt
chamber and dispose of it
responsibly.
Clean the dirt
chamber and the
space around the
vacuum turbine
thoroughly (wipe with
a damp cloth).
Put in a new filter
bag.
Fit the black plastic
cap into the
aperture.
Important!
Press the rim of the filter
bag tightly onto the
aperture.
Close the cleaner.
