17
Handling
Removing the suction head
To empty the dirt chamber, first take off
the top part of the cleaner - the suction
head.

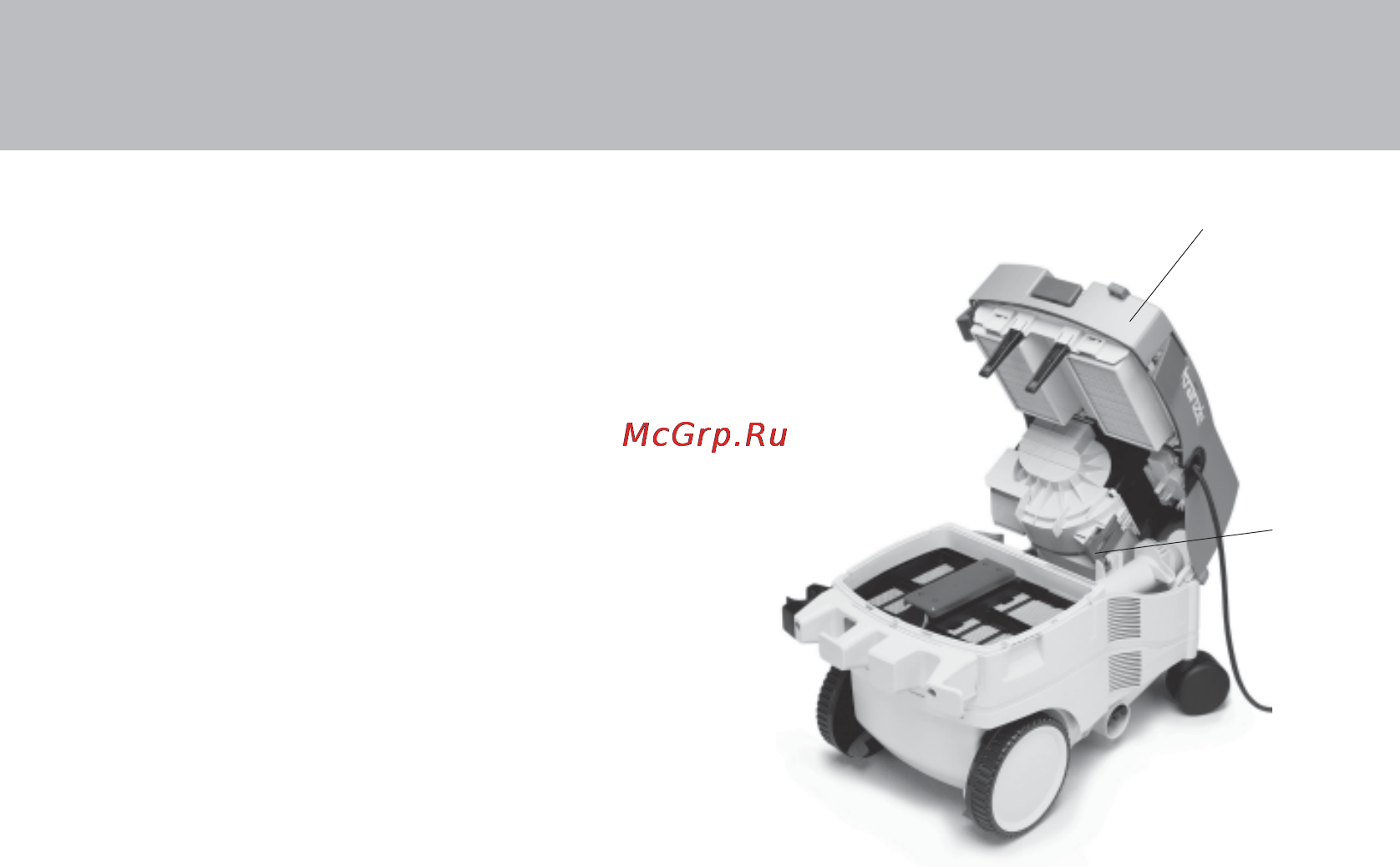

Taking off the suction head
Open the cleaner (see page 11). Lift the
top part (23) slightly and press the lug
(20) from the side. Swivel the top part
further until it reaches the stop (vertical
position) and take it off horizontally
forwards.
Replacing the suction head
Slide the suction head from the front onto
the base. Make sure that both bolts in the
top part slide properly into the recesses.
Emptying the dirt chamber
Take off the suction head as described above. Dispose of the contents
responsibly. Clean the top rim of the dirt chamber and the space around the
suction turbine.
20
23
