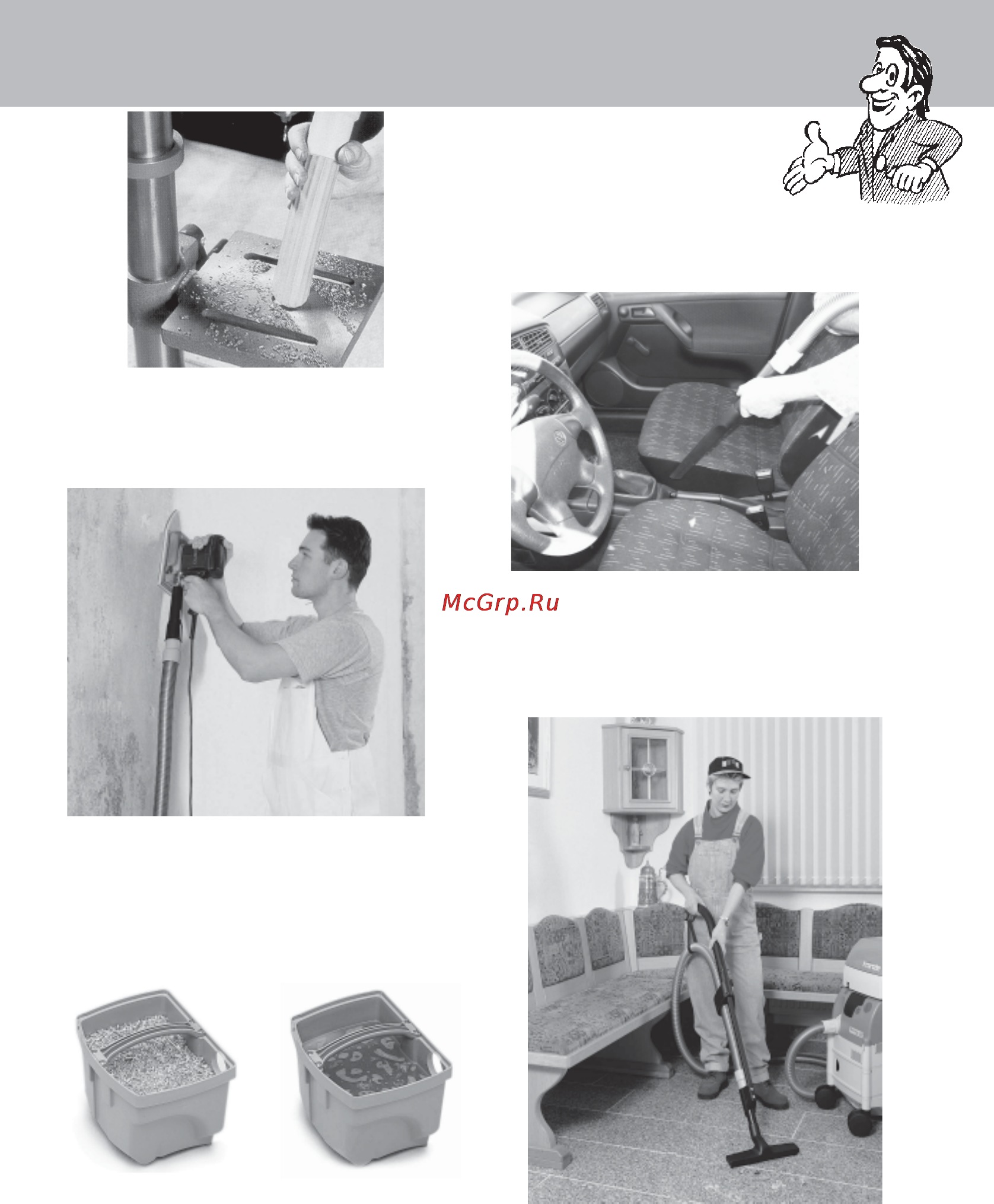

21
Cleaning carpets and other floor surfaces
with the carpet nozzle
(order number 58 401 8)
Cleaning of irregular and coarse surfaces
using oblique type rubber nozzle (order
number: 58 402 2)
Separate vacuuming of machinery using
different work materials (eg, brass and
aluminium) by simply changing the dirt
container. (Ventos 25 order number: 45 302
9 Ventos 35 order number: 45 303 0)
Vacuuming dust when working with
electrical tools controlled by power-up of
the vacuum when the electrical tool starts.
(order number 58 405 1)
with other KRÄNZLE - accessories
Vacuuming in tight and and deep crevices
eg, between car seats, or cleaning
machinery with the 300 mm long gap
nozzle (order number: 58 402 3)
