Kranzle Ventos 35 [9/40] You have purchased all this
![Kranzle Ventos 25 [9/40] You have purchased all this](/views2/1119857/page9/bg9.png)
9
1. Suction hose
36mm x
3.5m
1. KRÄNZLE - Wet/dry vacuum
cleaner Ventos 25 / Ventos 35
with accessories box
3. Suction nozzle set
comprising upholstery nozzle,
vacuum brush, corner nozzle,
floor nozzle with 2 inserts, hand
pipe and 50 cm extension
9. Operating
instructions
5. Filter bag

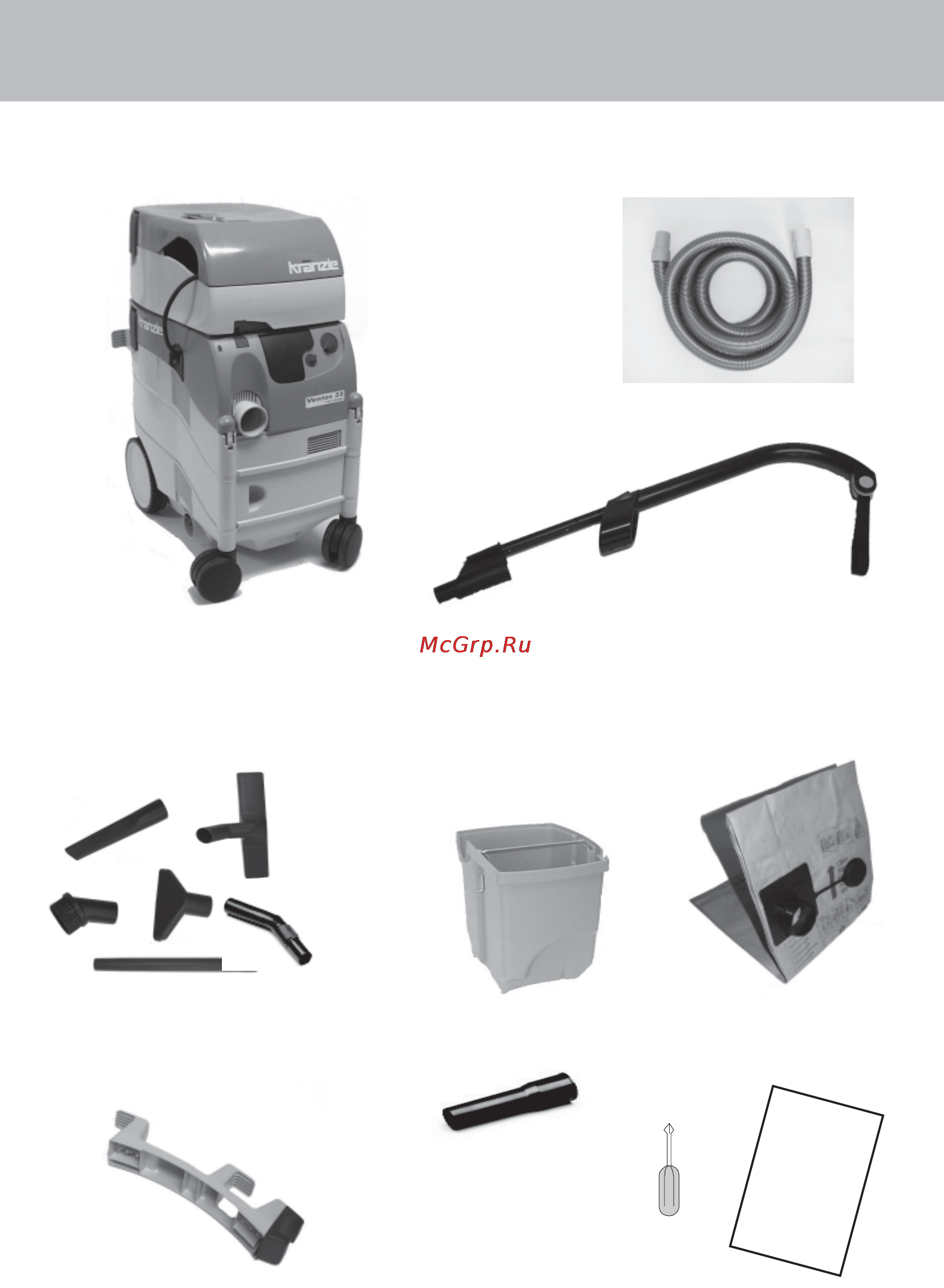

You have purchased all this:
4. Dirt container
with lid and
front filter
integrated
in lid
8. Phillips screwdriver
7. Cable holder with
fastening screws
6. Adapter
suction hose nozzles
2. Suction handle
