Kranzle Ventos 35 [37/40] Vento_37
![Kranzle Ventos 25 [37/40] Vento_37](/views2/1119857/page37/bg25.png)
37

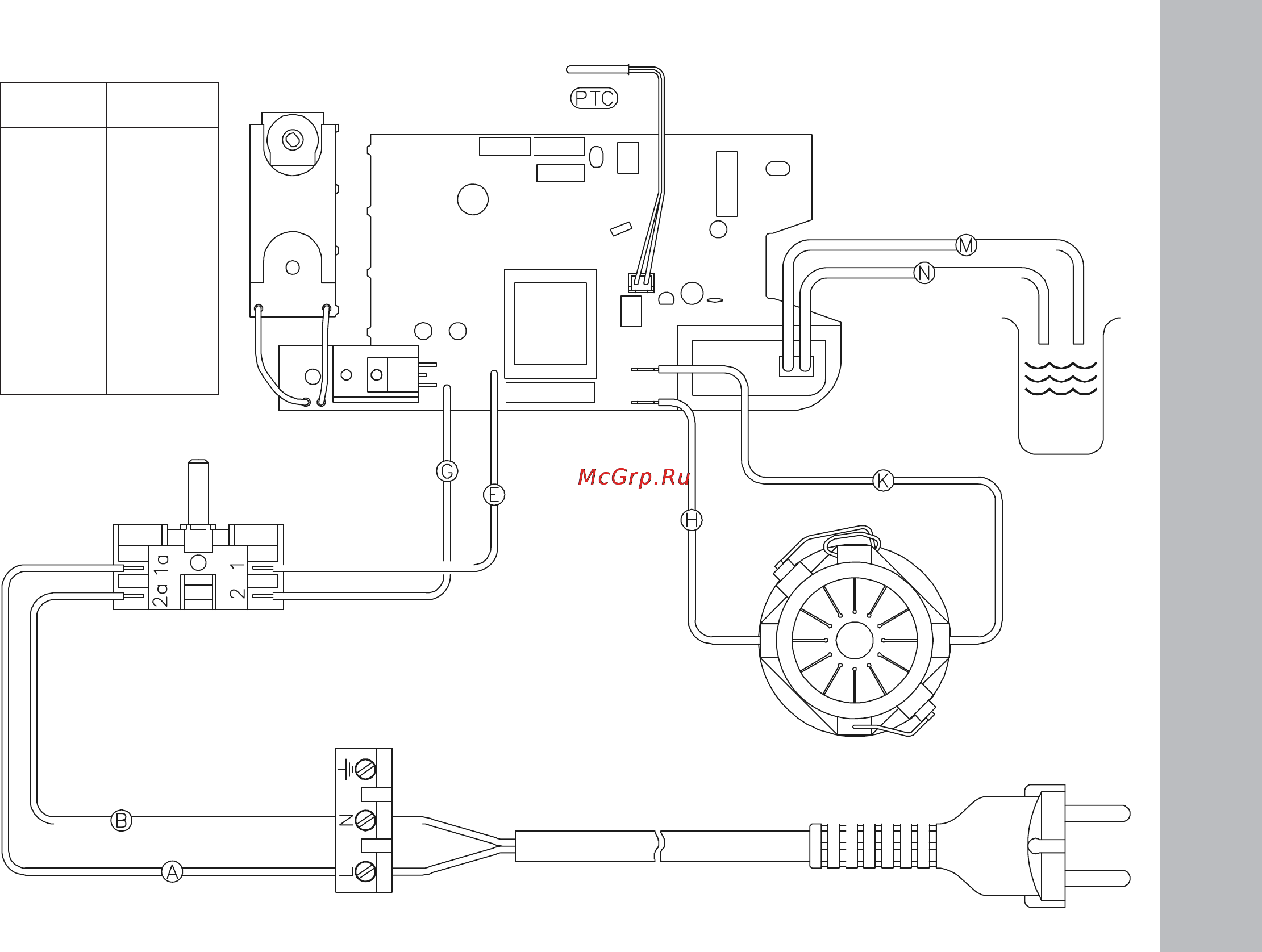

Circuit diagram
Code Colour
A Black
B Black
E Red
G Blue
H Black
K Black
M Black
N Black
PTC White
Master
switch
Terminal
Power cable
Water contacts
Temperature overload
switch Turbine
Control board
Turbine motor
Vacuum regulator
