18
Close the cleaner.
Handling
Place a new filter
element into the
cassette.
Hang the cassette in the
holder and tilt it upwards until
the locking buttons engage.
Press the locking buttons
of the filter cassette. Tilt
the cassette downwards.
Remove the filter
element and dispose
of it responsibly.
Clean the dirt chamber
and the space around
the suction turbine
(wipe with a damp
cloth).

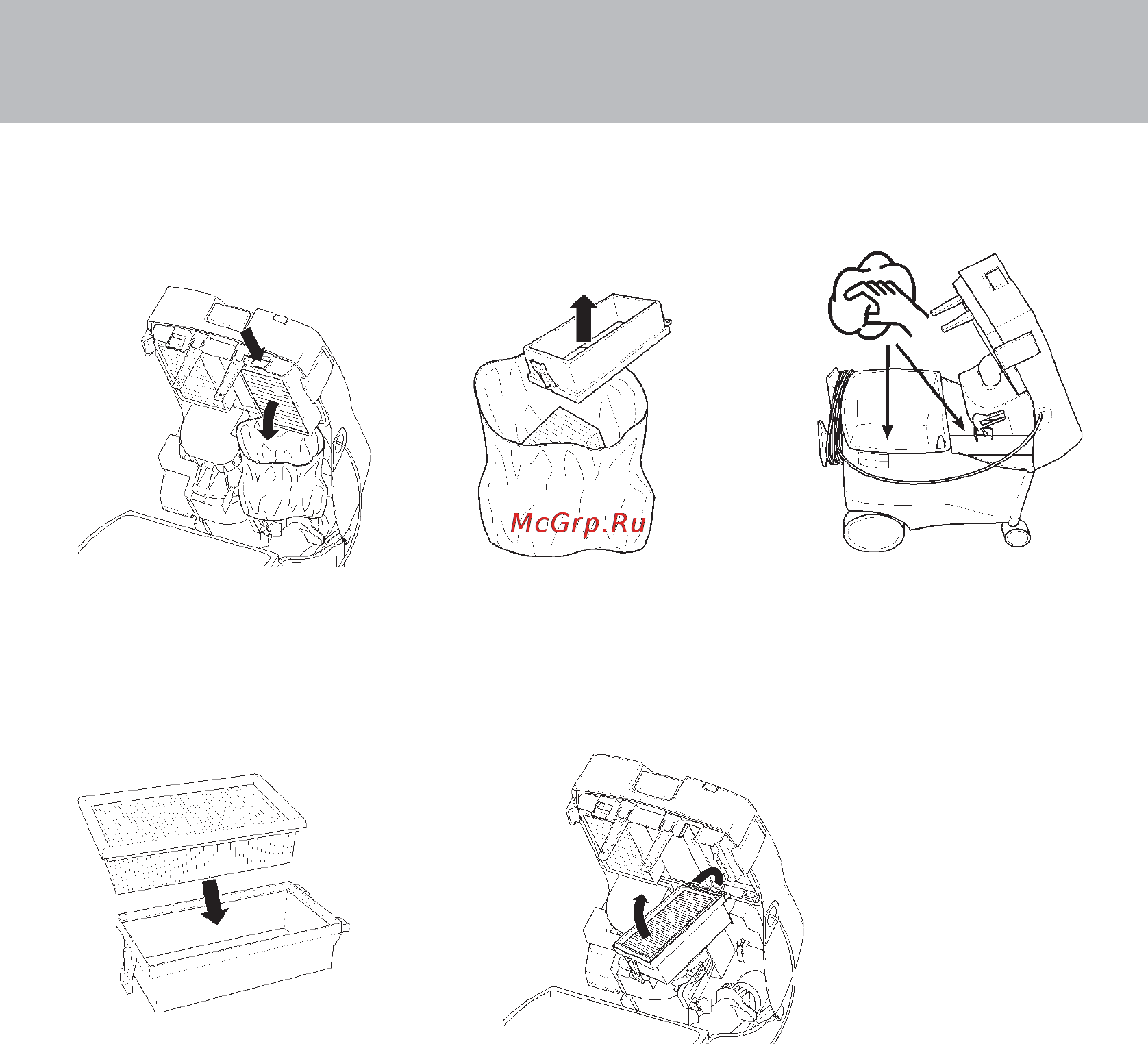

Changing the filter elements
Open the cleaner.
