Storage bin (only on Ventos 35)
The Ventos 35 is equipped with a storage bin (7). This offers convenient
space for vacuuming utilities and other work materials.
This bin is opened with a handle (7.1).
Brake
The brake (9) is used to lock the wheels and prevent th cleaner from rolling
away out of control.
ON/OFF Switch
The cleaner is OFF when the switch is in the "0" position. Turn the switch (5)
to position "1" to start the machine.
Vacuum regulation
The vacuum regulator (6) is used to steplessly adjust the power of the
vacuum. It allows precise adjustment for the task in hand.

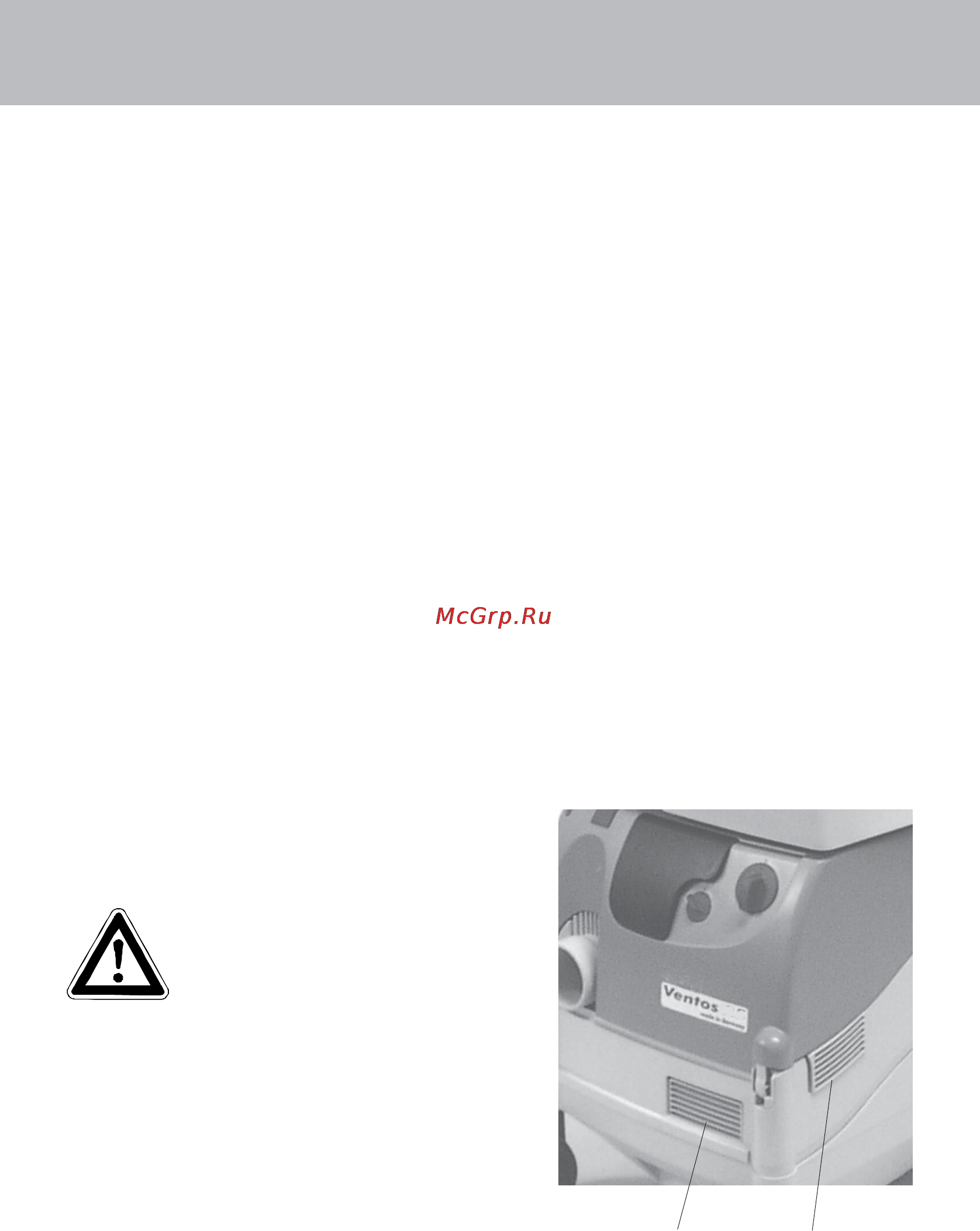

Cooling apertures
The cooling apertures (1) and (2) serve to cool the turbine.
CAUTION!!!
Never close or cover
the cooling
apertures.
