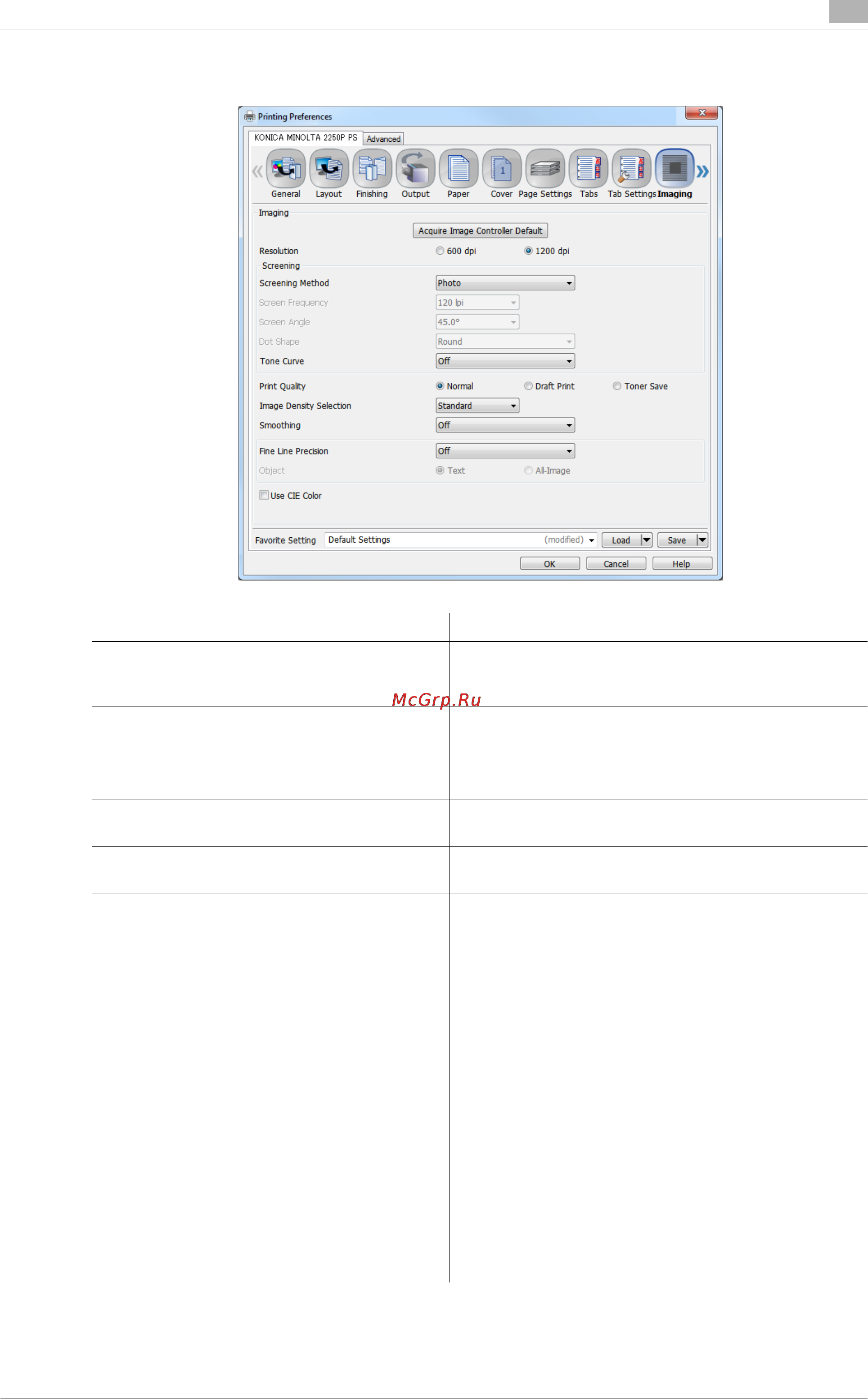

Konica Minolta bizhub PRESS 2250P [165/315] 0 imaging tab
![Konica Minolta bizhub PRESS 2250P [165/315] 0 imaging tab](/views2/1121983/page165/bga5.png)
bizhub PRESS 2250P 11-21
11.3 Parameter details
11
11.3.10 [Imaging] tab
Function Name Option Description
[Acquire Image
Controller De-
fault]
- Communicate with the machine to acquire the default
screening information of the image controller.
[Resolution] [600dpi], [1200dpi] Select a resolution.
[Screening Meth-
od]
[Photo], [Text],
[Text/Photo], [Dot
Screen]
Specify the screening method.
[Screen Frequen-
cy]
[40 lpi] to [300 lpi] Specify the screen frequency when you select the [Dot
Screen] in the [Screening Method].
[Screen Angle] [0.0°] to [172.5°] Specify the screen angle when you select the [Dot
Screen] in the [Screening Method].
[Dot Shape] [Simple Dot]
[Inverted Simple Dot]
[Double Dot]
[Inverted Double Dot]
[Cosine Dot]
[Double]
[Inverted Double]
[Line]
[Line X]
[Line Y]
[Round]
[Ellipse]
[Ellipse A]
[Inverted Ellipse A]
[Ellipse B]
[Ellipse C]
[Inverted Ellipse C]
[Square]
[Cross]
[Rhomboid]
[Diamond]
Specify the dot shape when you select the [Dot Screen]
in the [Screening Method].
Refer to help information of printer driver to confirm the
dot shape.
