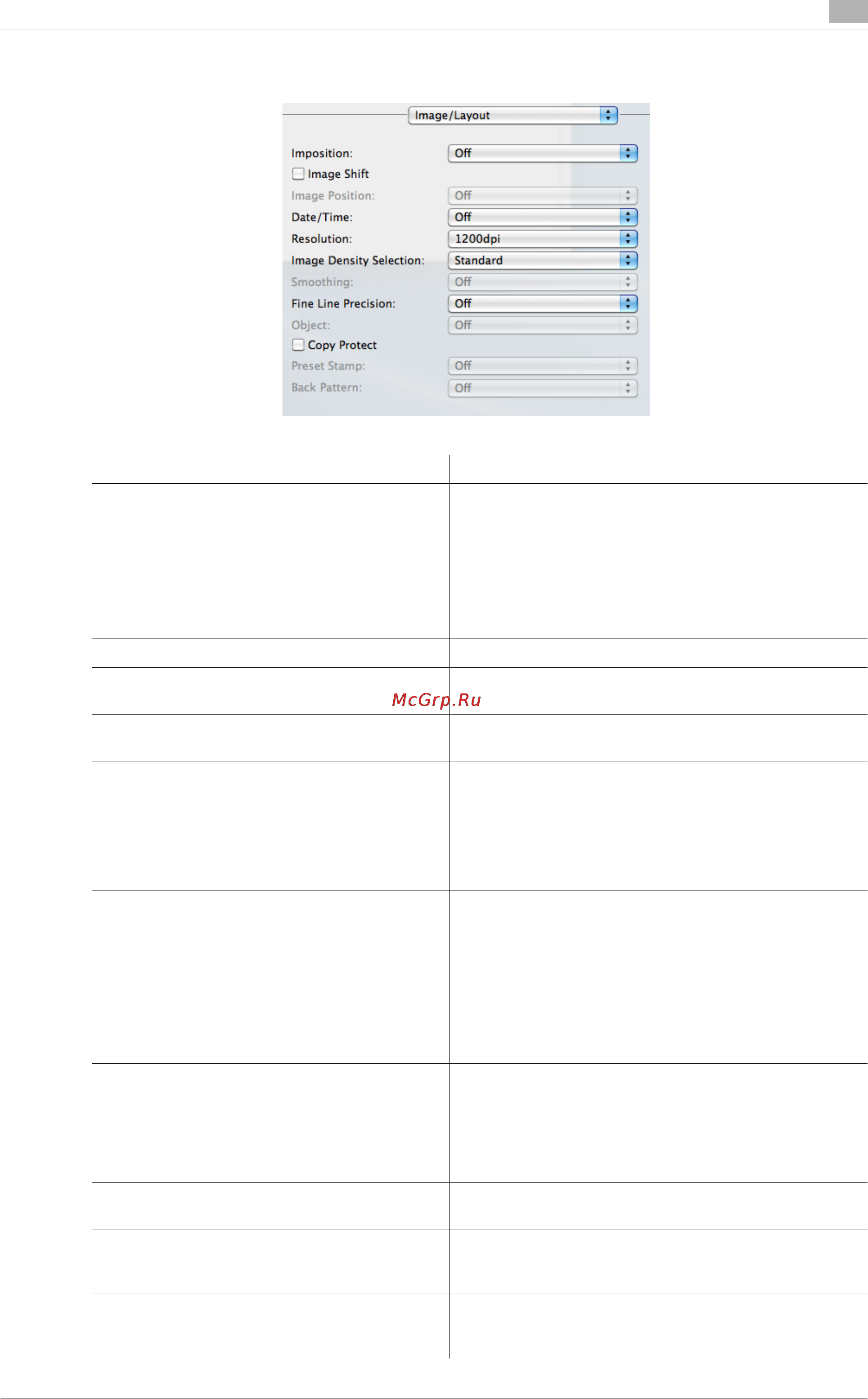

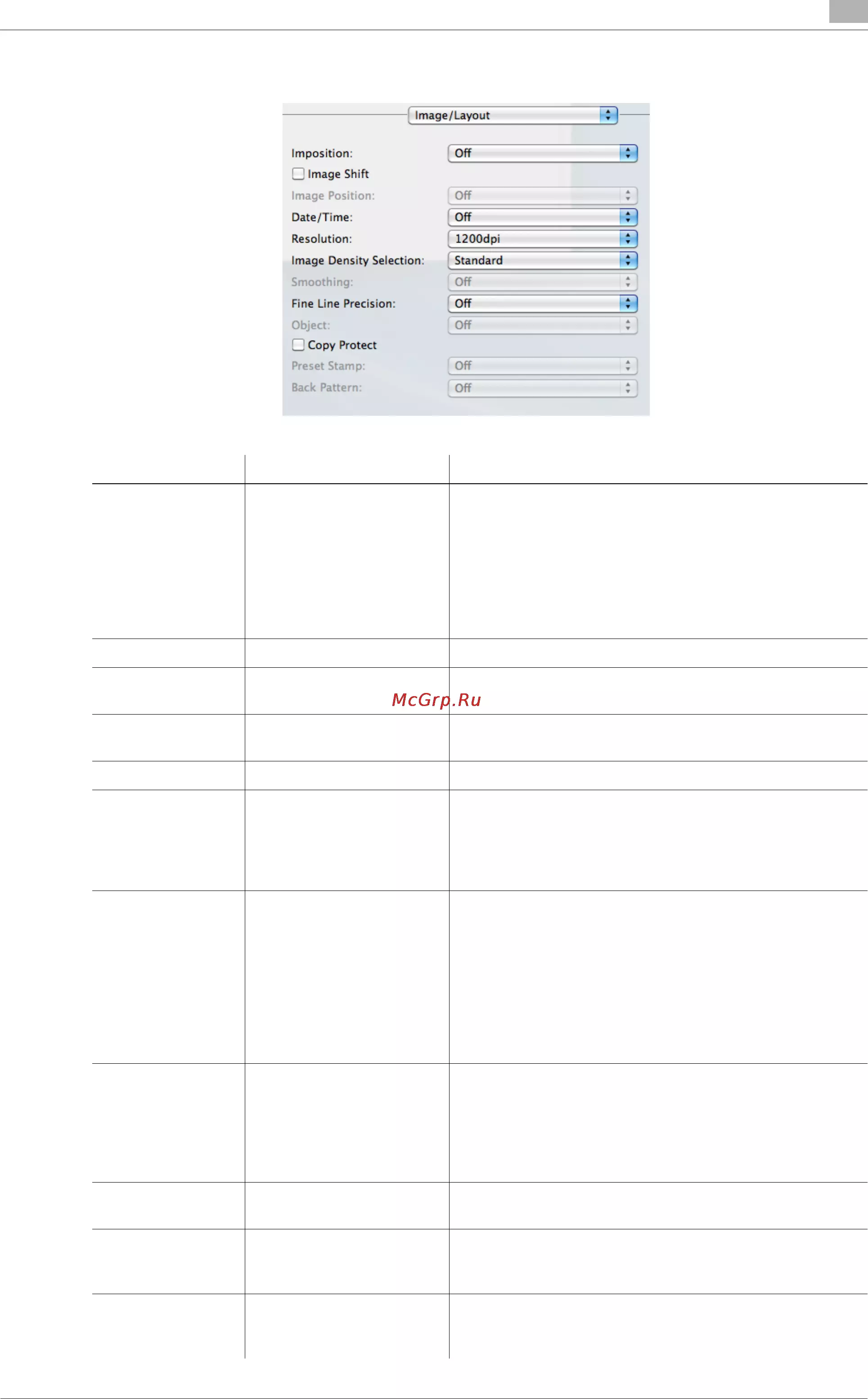

bizhub PRESS 2250P 13-10
13.4 Parameter details
13
13.4.4 [Image/Layout]
Function Name Option Description
[Imposition] [Off], [Booklet], [Adhe-
sive Binding], [2 in 1],
[Repeat], [2 Repeat Re-
versal (Left)], [2 Repeat
Reversal (Right)], [2 Re-
peat Reversal (Top)], [2
Repeat Reversal (Bot-
tom)]
Set this to perform an imposition printing.
[Image Shift] Off, On Specify the position of printing image.
[Image Pos.] [Off], [Top], [Center],
[Bottom]
Specify the print position.
[Date/Time] [Off], [All Pages], [1st
Page Only]
Set this when printing date/time.
[Resolution] [600dpi], [1200dpi] Select a resolution.
[Image Density] [+1], [Standard]
[-5] - [-1]
[Toner Save], [Draft Print]
Adjust the print density.
Move the slider toward plus to deepen the density and
move the slider toward minus to lighten the density.
[Draft Print] corresponds with [Image Density] - [-2] and
[Toner Save] corresponds with [Image Density] - [-4].
[Smoothing] [Off], [Type 1], [Type 2],
[Type 3]
Select this check box to set smoothing. [Smoothing] is
available only when [600 dpi] and Thinning are select-
ed.
• [Type 1]: Performs processing appropriate for diag-
onal lines in general text and diagram.
• [Type 2]: Performs processing appropriate for
curves in general text.
• [Type 3]: Performs processing appropriate for
curves in dingbat and small letters
[Fine line Preci-
sion]
[Off]
[Level 1]
[Level 2]
[Level 3]
[Level 4]
When you print small letters, printing result might be-
come illegible depending on the contents of the original
documents.
In this case, setting [Fine line Precision] enables to read
small letters. The higher you set the level, the line be-
comes thinner.
[Object] [Text ]
[All-image]
Specify the target when the [Fine line Precision] is set.
[Copy Protect] Off, On Set this to combines the selected document with the
copy protect pattern to protect from unauthorized cop-
ying
[Preset Stamp] [Off], [Copy], [Invalid], [Il-
legal Copy], [Invalid
Copy]
Select the background pattern that is used on settings
for the [Copy Protect].
