bizhub PRESS 2250P 2-7
2.2 Operating environment
2
2.2.2 Interfaces used for connection
To connect this printing system to a computer, the following interfaces can be used.
Ethernet
Use this interface to use this printing system via a network connection.
It supports 1000Base-T, 100Base-TX, and 10Base-T standards. In addition, TCP/IP (LPD/LPR, IPP, SMB),
Web services, IPX/SPX (NetWare), AppleTalk (EtherTalk) protocols are supported.
USB interface
Use this interface to use this printing system via a USB connection. The USB interface can be connected to
a computer running Windows. A USB cable is required for connection. Use a type A (4 pin, male) or type B
(4 pin, male) USB cable. A USB cable measuring three meters or less is recommended.

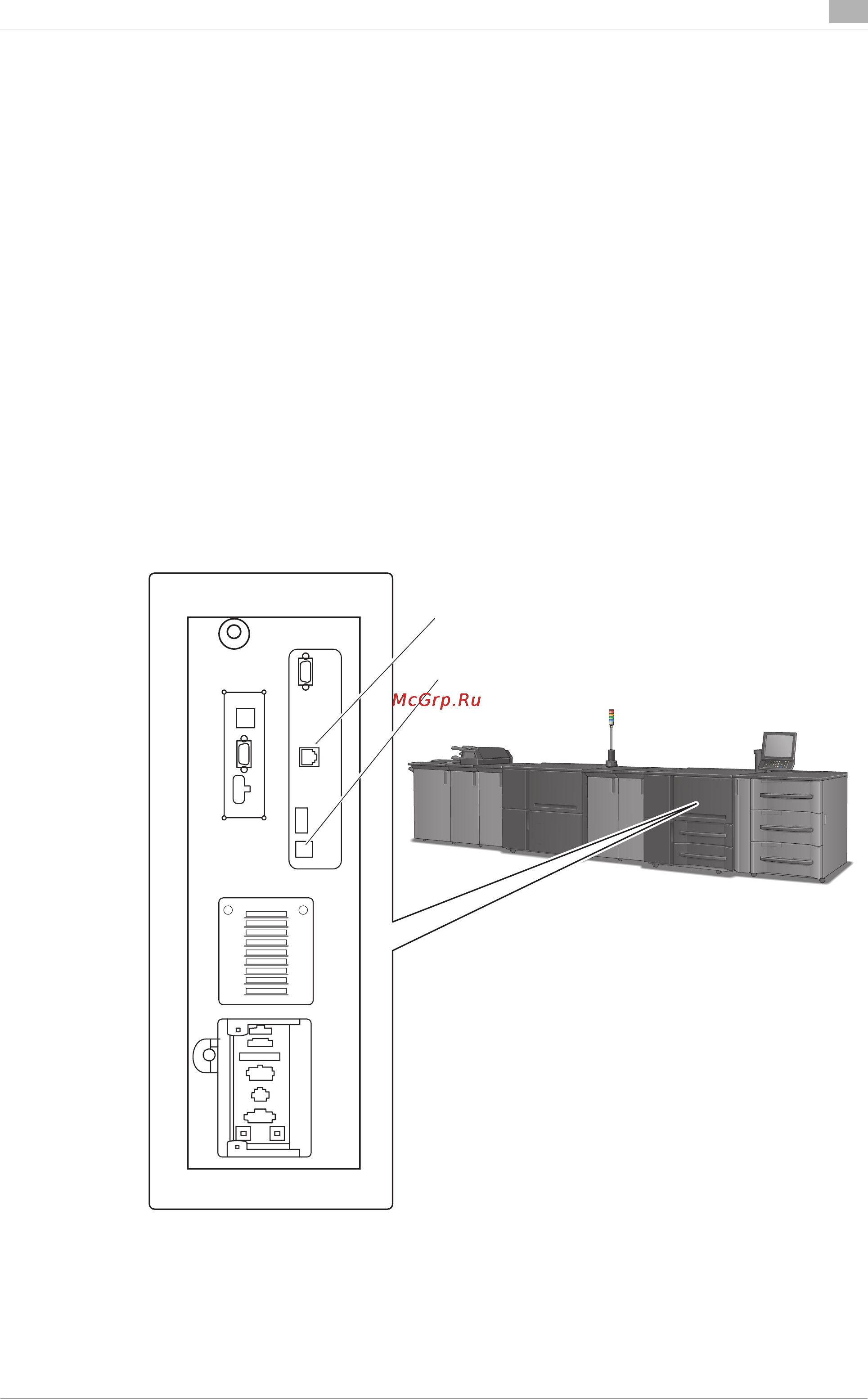

Connection diagram
The printer cables are connected to the each port of the image controller.
Back side of the machine
1. Ethernet port (1000Base-T/100Base-TX/10Base-T)
2. USB port
1
2
