bizhub PRESS 2250P 16-12
16.3 Structure of pages
16
16.3 Structure of pages

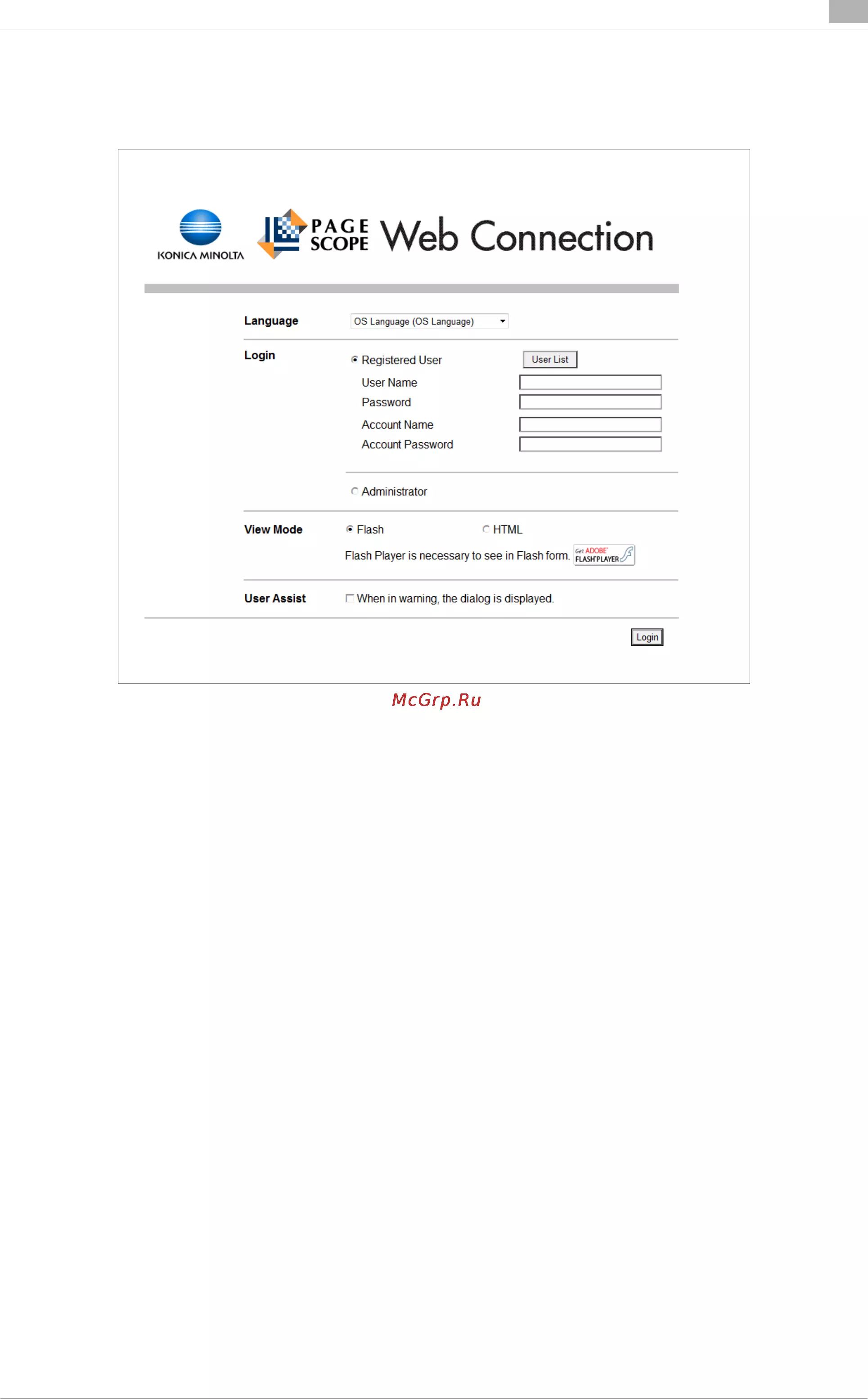

Logging in to PageScope Web Connection displays the page that is configured as shown below. The fol-

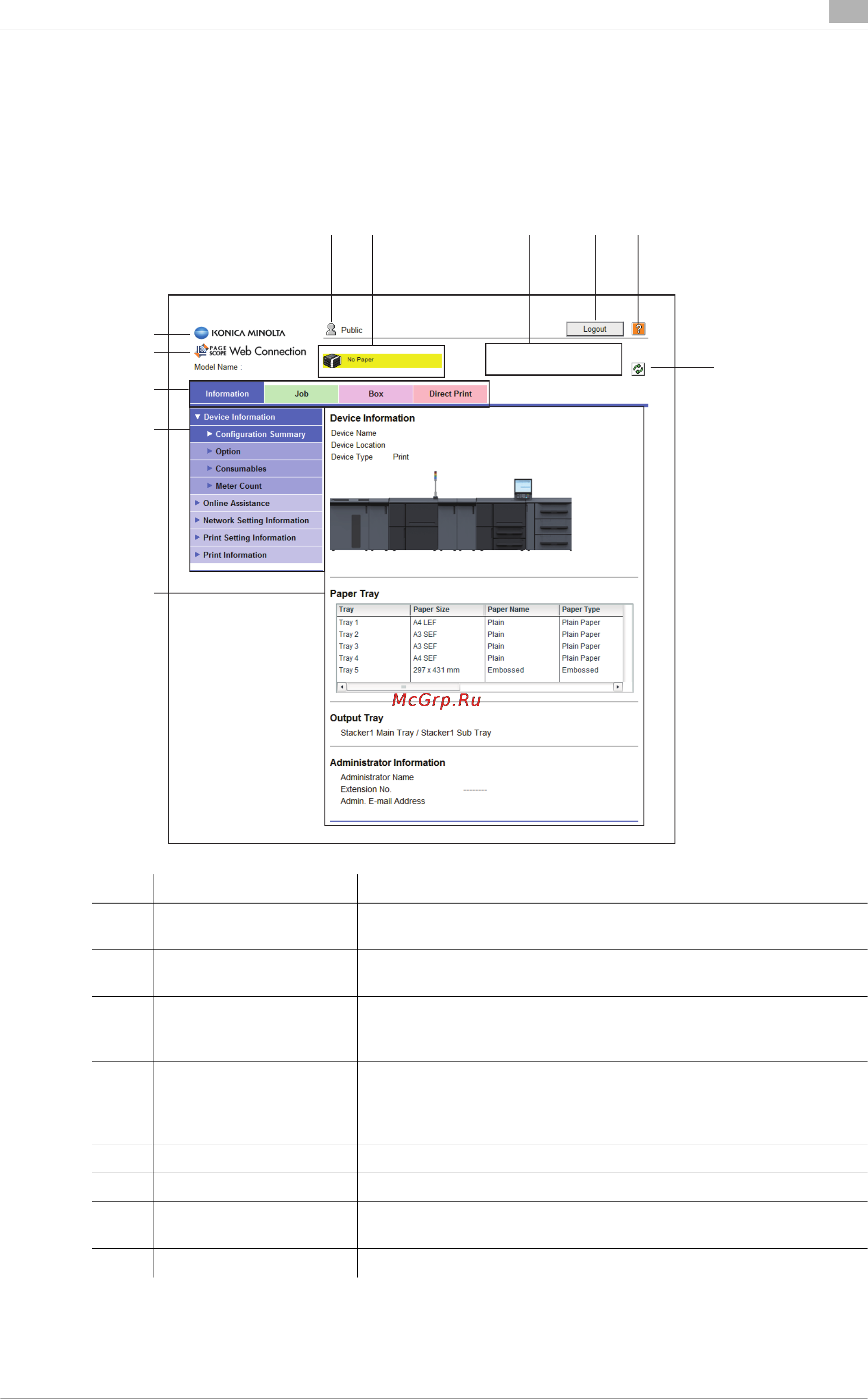

lowing shows an example of the page displayed when Device Information is selected in the Information tab.
Reference
- The contents of the PageScope Web Connection pages vary depending on the options installed in
this machine or the settings of this machine.
No. Item Description
1 KONICA MINOLTA logo Click this logo to jump to the Konica Minolta Web site at the follow-
ing URL. http://www.konicaminolta.com/
2 PageScope Web Con-
nection logo
Click this logo to display the version information of PageScope Web
Connection.
3 Login user name Displays the icon of the current mode and the name of the user who
is logged on (public, administrator, registered user, or account).
Click the user name to display the login user name.
4 Status display Displays the status of this machine with an icon and a message.
Clicking the desired icon when an error occurs displays the informa-
tion (Consumable Info, Paper Tray) associated with the icon to ena-
ble you to check the status.
5 Message display Displays the operating status of this machine.
6 [Logout] Click this button to log out the current mode and log in again.
7 Help You can display the online help for the currently configured function.
For the specified pages, refer to [Online Assistance] in page 16-14.
8 Refresh Click this icon to refresh the information displayed in the page.
2
1
9
8
3
6 7 4 5
10
11
