6
VP-440 - Overview
3.2 Defining the VP-440 Presentation Switcher/Scaler
This section defines the VP-440.

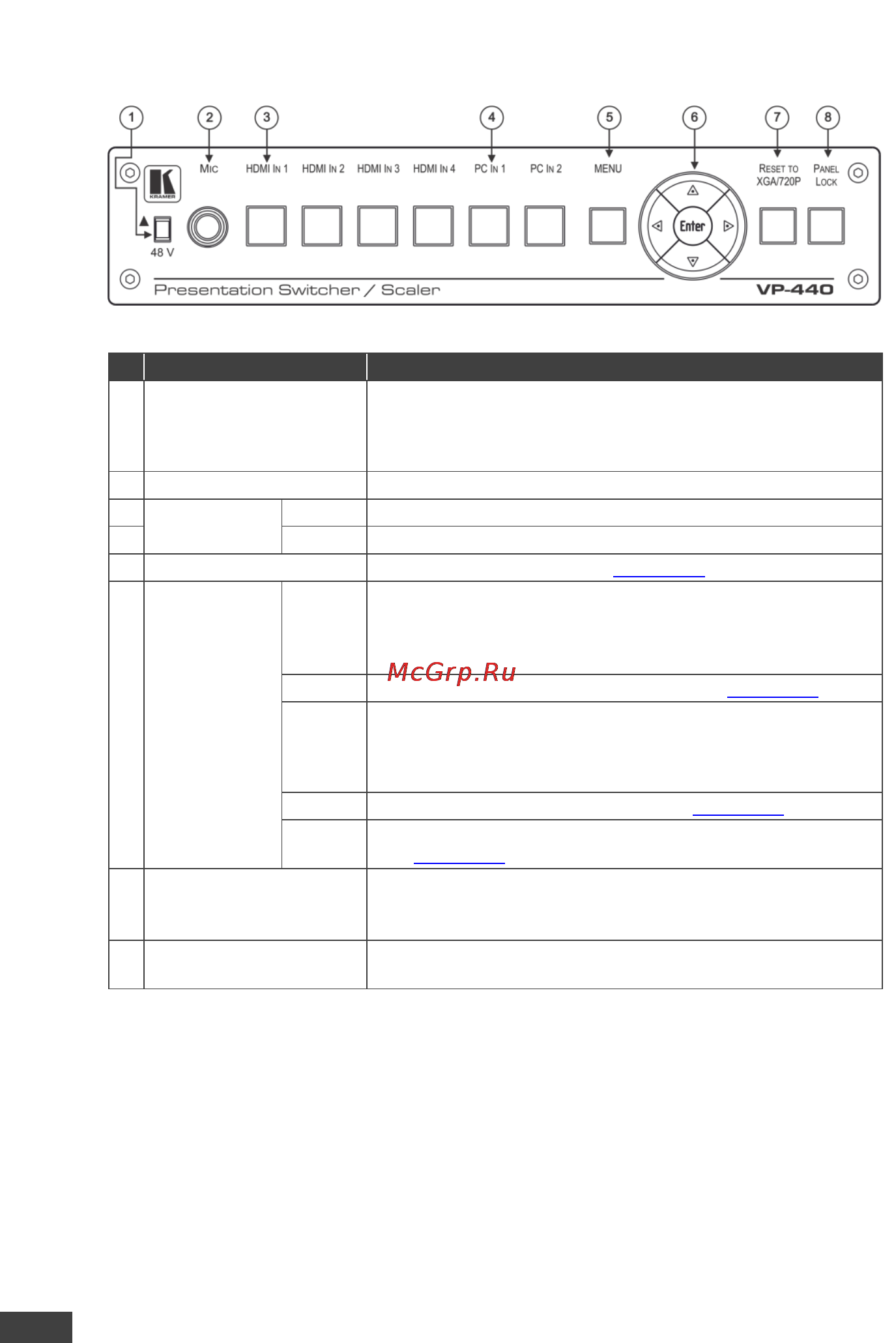

Figure 1: VP-440 Presentation Switcher/Scaler Front Panel
#
Feature
Function
1
/ 48 V
Move up (48V) to select a condenser type microphone; down
to select a dynamic type microphone. (We recommend
keeping the switch down if a microphone is not connected to
the VP-440)
2
MIC 6.3mm Jack
Connect to the microphone source
3
Input Selector
Buttons
HDMI IN
Press to select the HDMI input (from 1 to 4)
4
PC IN
Press to select the computer graphics input (from 1 to 2)
5
MENU Button
Displays the OSD menu (see Section 5.2)
6
Navigation
Buttons
Press to decrease numerical values or select from several
definitions
When not within the OSD menu mode, press to reduce the
output volume
Press to move up the menu list values (see Section 5.2)
Press to increase numerical values or select from several
definitions
When not within the OSD menu mode, press to increase the
output volume
Press to move down the menu list (see Section 5.2)
ENTER
Press to accept changes and change the SETUP parameters
(see Section 5.2)
7
RESET TO XGA/720p
Button
Press to reset the video resolution to XGA or 720p
Press and hold for about 5 seconds to toggle between
switching to XGA or 720p
8
PANEL LOCK Button
Press and hold for about 5 seconds to lock/unlock the front
panel buttons
