VP-440 - Using the Embedded Web Pages
25
25
6.3 The Device Settings Page
The device Settings window (Figure 17) lets you upgrade the firmware and set the
Ethernet parameters.

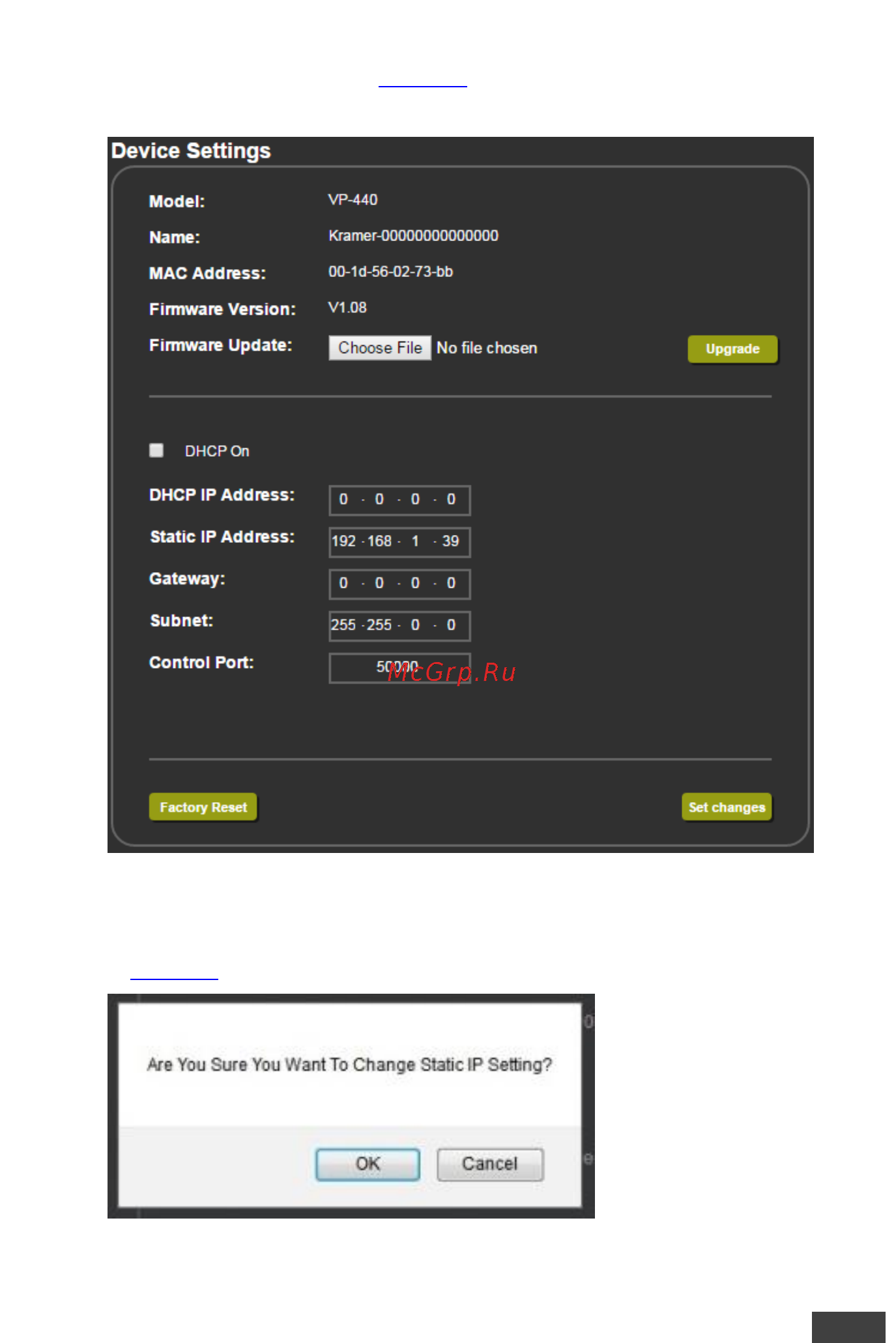

Figure 17: The Device Settings Page
Any change in the device settings requires confirmation, as illustrated in the example
in Figure 18.
Figure 18: The Device Settings Page – Static IP Confirmation
