24
VP-440 - Using the Embedded Web Pages
On the right side you can set the volume of the microphone and the output. The
speaker icon ( ) lets you mute ( ) or unmute the audio output level.

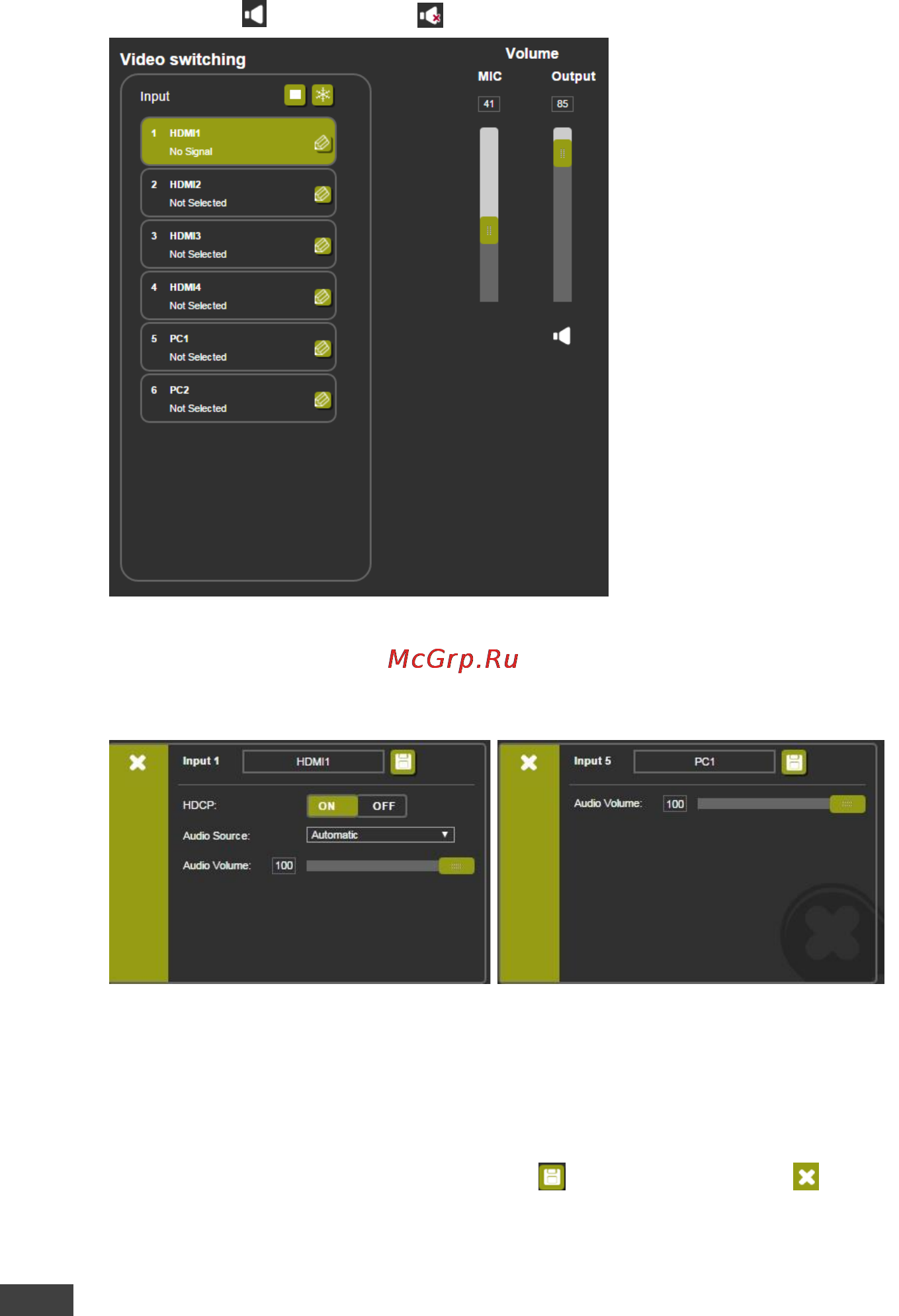

Figure 15: The Input Select Page – Mixer On/Off
To edit an input button, select that button and click the edit icon. The input edit
window appears:
Figure 16: The Input Select Page – Edit Input Buttons (HDMI and VGA Respectively)
The input edit window lets you set the HDCP, change the name of the input as it will
appear on the Web page and save it, and also set the audio source and its volume.
When selecting a PC input you can change the inputs’ name and set the input
volume. Upon completion, save the changes ( ) and click the exit icon ( ).
