32
VP-440 - Using the Embedded Web Pages

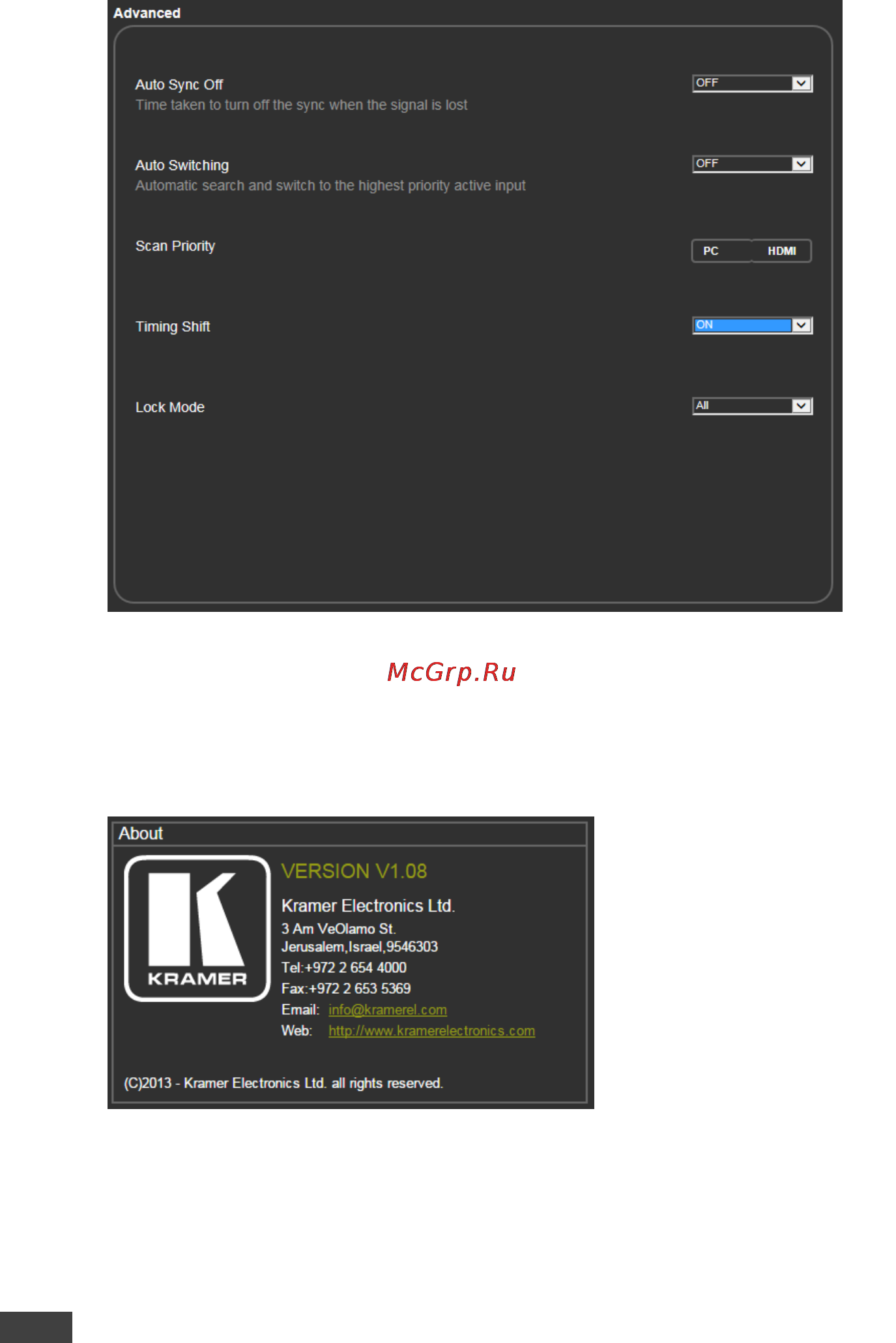

Figure 28: The Advanced Page
6.9 The About Page
The VP-440 About page lets you view the Web page version and Kramer Electronics
Ltd details.
Figure 29: The About Page
