VP-440 - Using the Embedded Web Pages
29
29
6.6 The EDID Page
The EDID page lets you copy a selected resolution (Native Timing) or the default
resolution (HDMI or VGA) to one or more selected inputs.

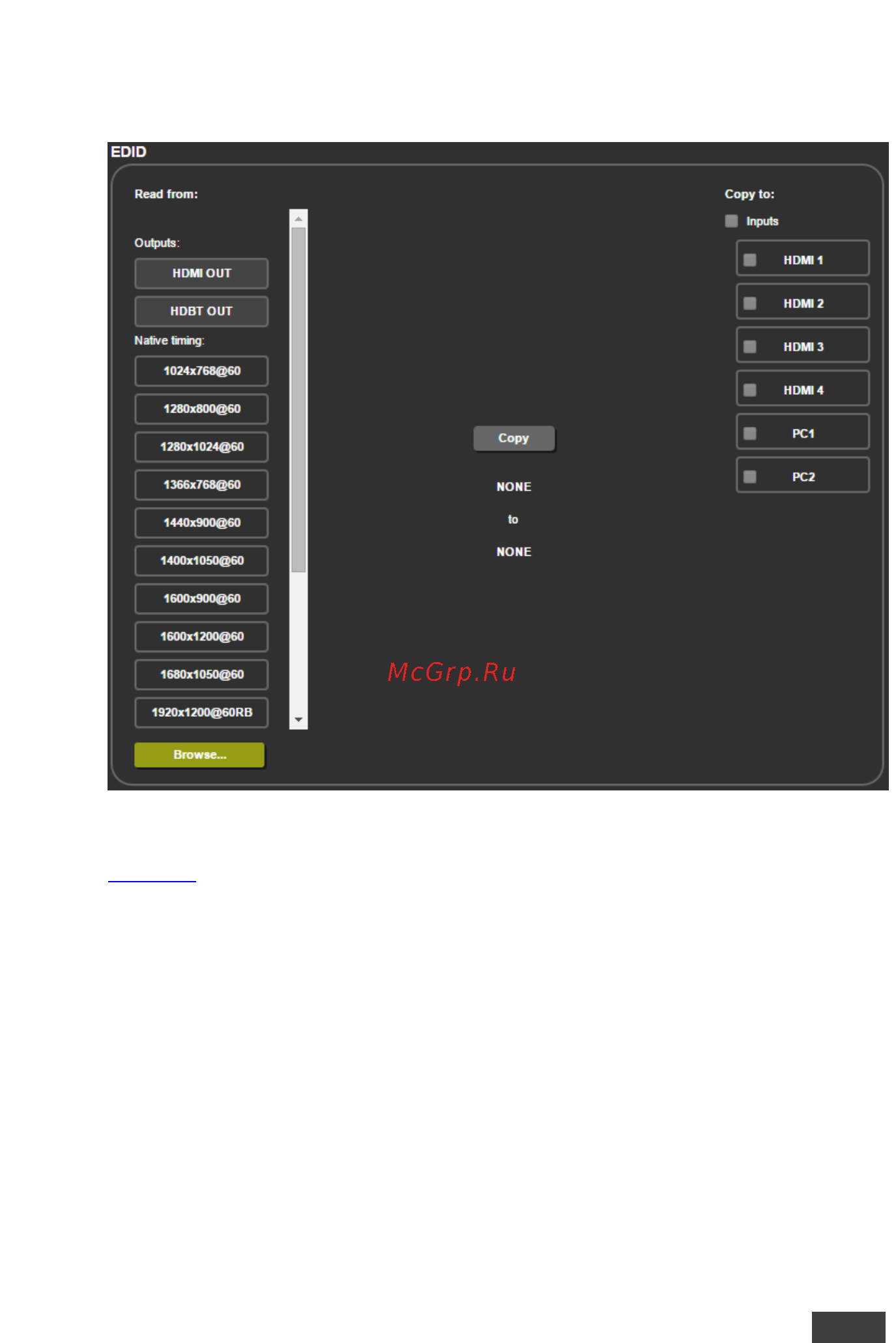

Figure 24: The EDID Page
Figure 25 shows how to select a resolution from the list and select one or more
inputs. To copy, click the Copy button:
