VP-440 - Using the Embedded Web Pages

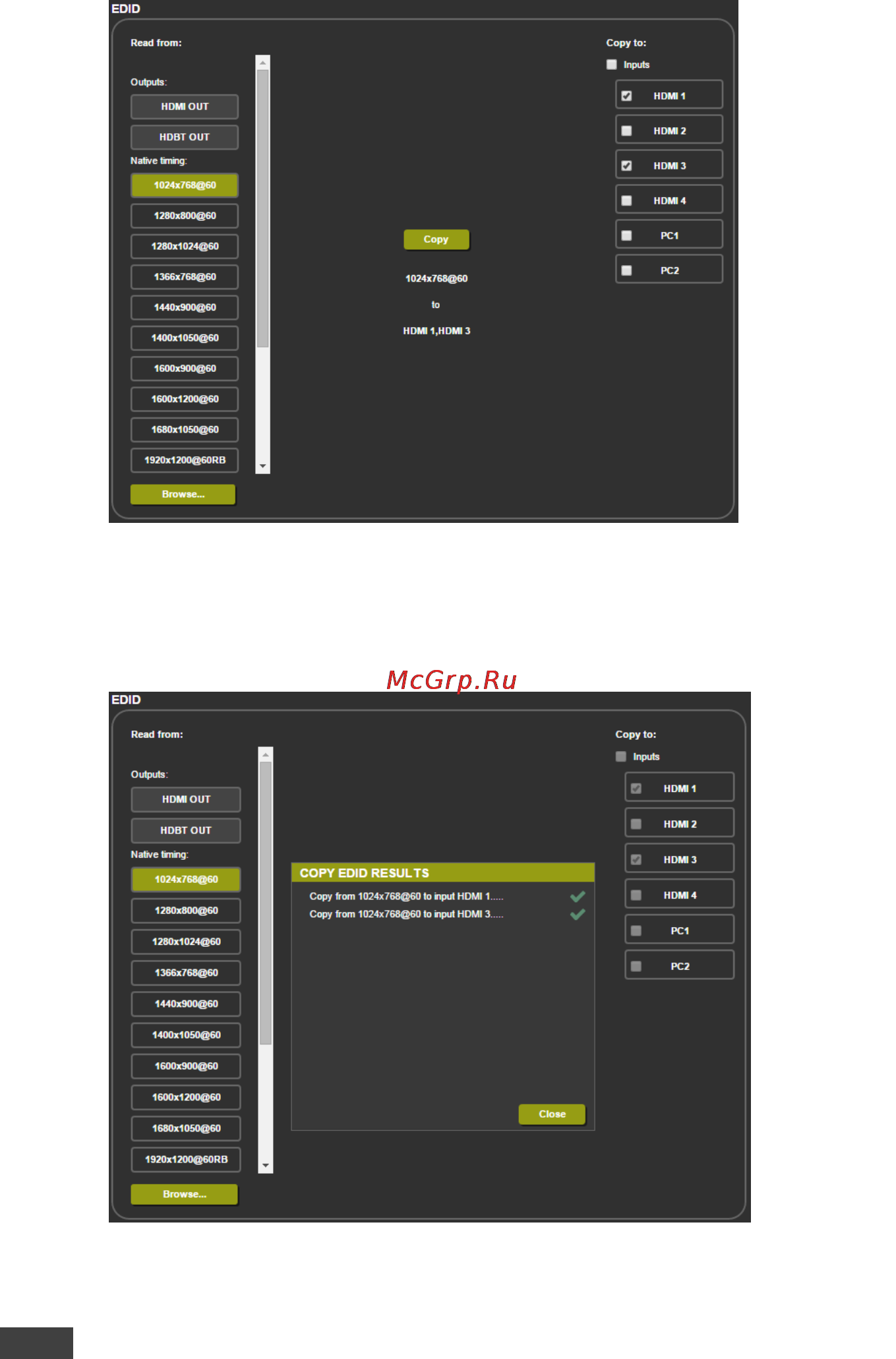

Figure 25: The EDID Page – Copying a Resolution
The EDID page displays the machine name, selected resolution, the audio channels
and deep color support.
After clicking the Copy button, the EDID page shows the copy EDID results:
Figure 26: The EDID Page –The Copy EDID Results
Click Close to complete the EDID procedure.
