10
VP-440 - Connecting the VP-440

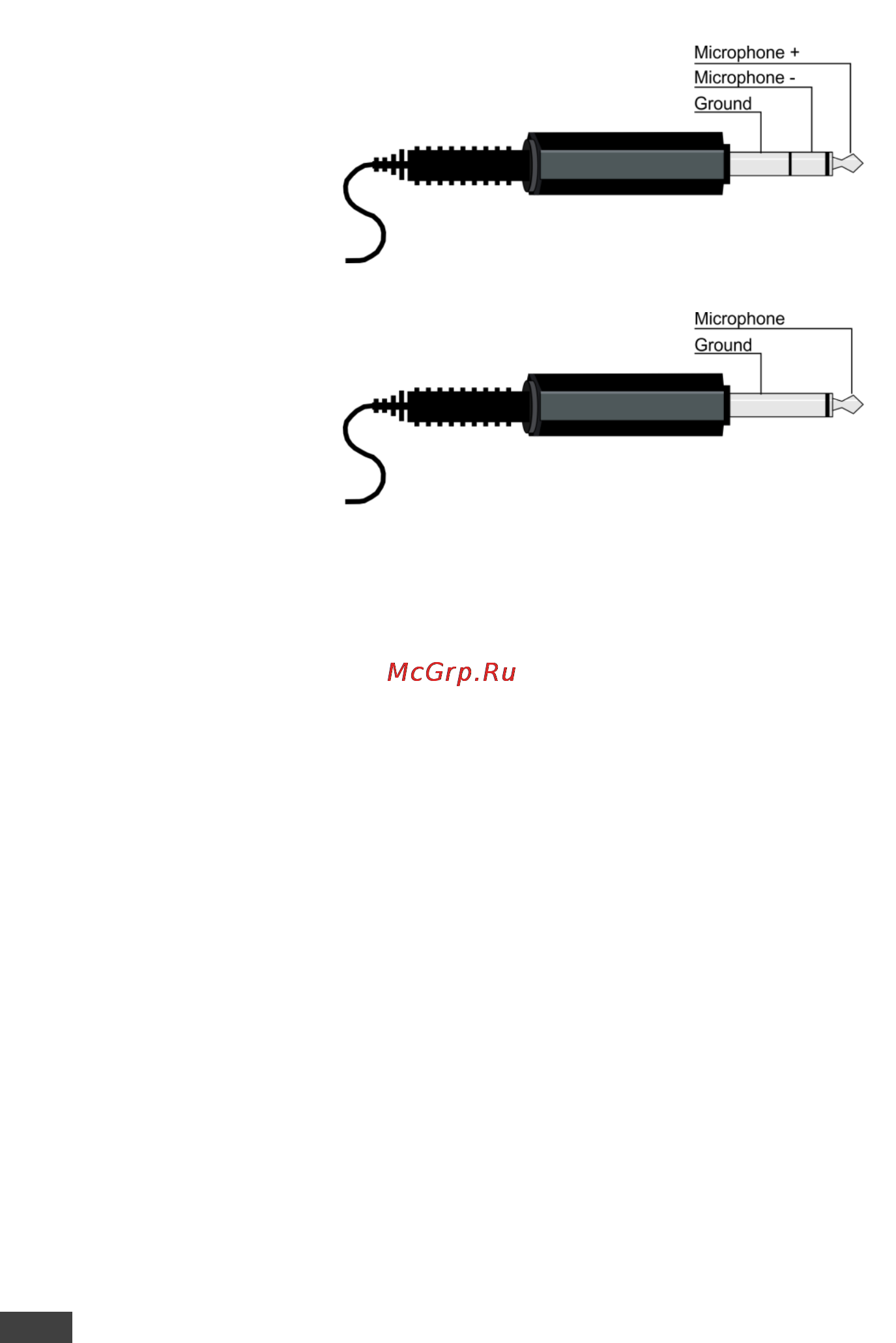

4.1 Microphone Pinout
The microphone
6.3mm jack pinout for a
condenser microphone.
Figure 4: Condenser Microphone Pinout
The microphone
6.3mm jack pinout for a
Dynamic microphone.
Figure 5: Dynamic Microphone Pinout
