26
VP-440 - Using the Embedded Web Pages
6.3.1 Firmware Upgrade
You can upgrade the firmware via the Device Settings page. To do so:
1. Choose the firmware file by clicking the Choose File button in the Firmware
upgrade line.
2. Click the Upgrade button.
The new firmware is uploaded:

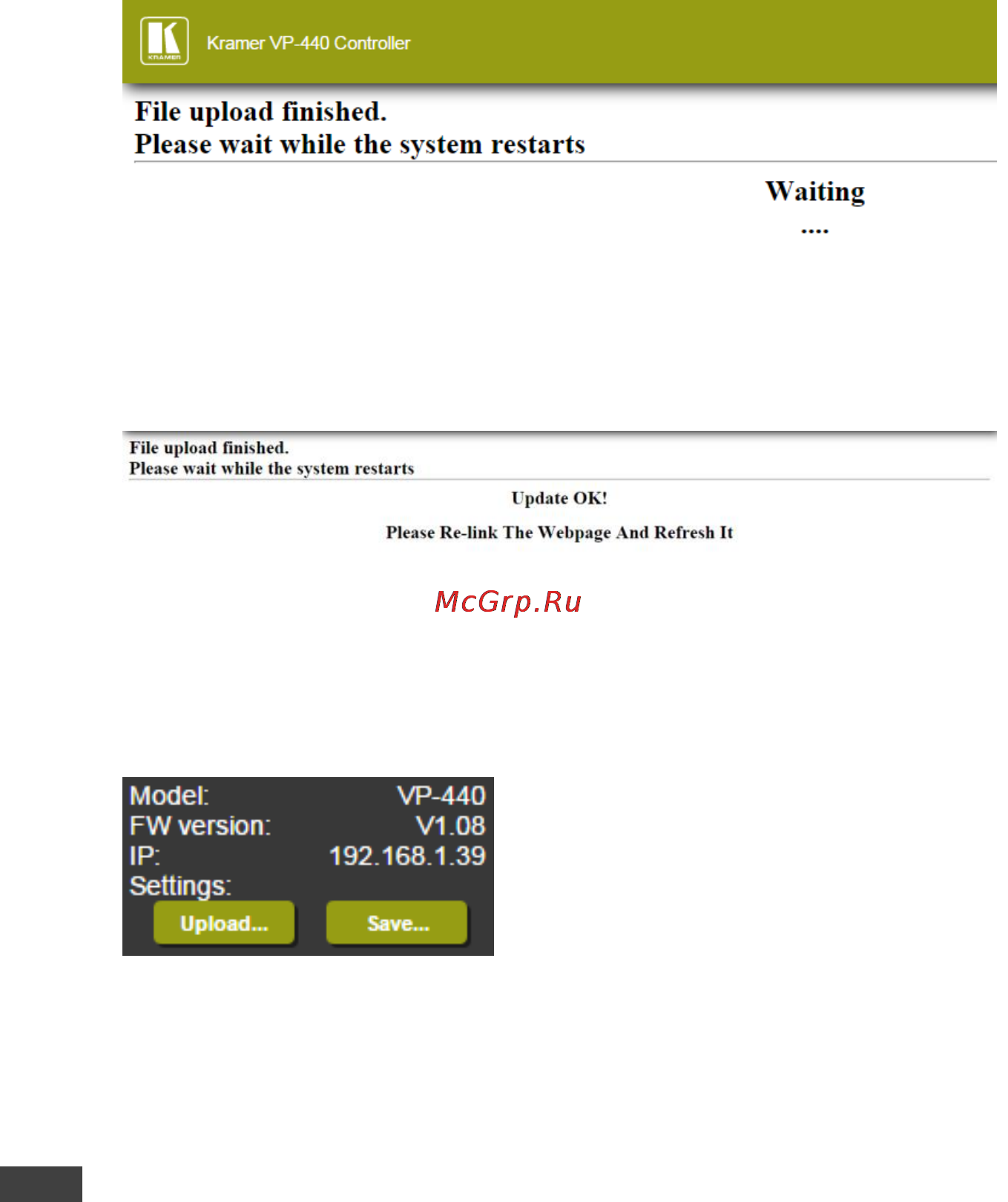

Figure 19: The Device Settings Page – Uploading the New Firmware File
3. Once the file is uploaded follow the instructions on the Web page:
The new firmware is uploaded:
Figure 20: The Device Settings Page – Uploading the New Firmware File
4. After restarting the system you need to re-enter the IP address of the device
and refresh the Web page.
5. Make sure that the new version appears on the Web page lower left side:
Figure 21: The Device Settings Page – New Firmware Updated
