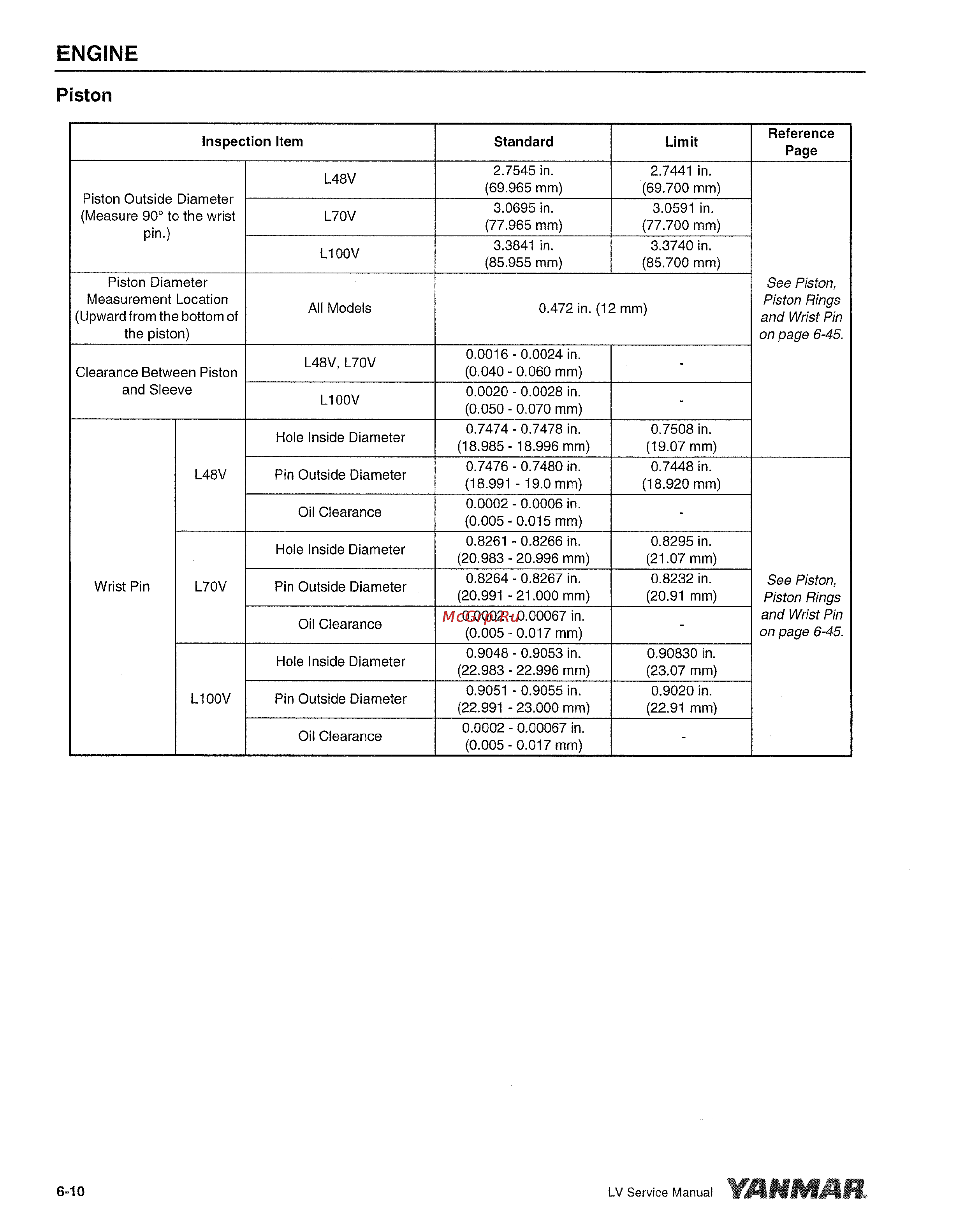

ENGINE Piston Inspection Item Piston Outside Diameter Measure 90 to the wrist Standard Limit L48V 2 7545 in 69 965 mm 2 7441 in 69 700 mm L70V 3 0695 in 77 965 mm 3 0591 in 77 700 mm L100V 3 3841 in 85 955 mm 3 3740 in 85 700 mm pin Piston Diameter Measurement Location Upward from the bottom of the piston Clearance Between Piston and Sleeve L48V All Models Wrist Pin L70V L100V 6 10 See Piston Piston Rings and Wrist Pin on page 6 45 0 472 in 12 mm L48V L70V 0 0016 0 0024 in 0 040 0 060 mm L100V 0 0020 0 0028 in 0 050 0 070 mm Hole Inside Diameter 0 7474 0 7478 in 18 985 18 996 mm 0 7508 in 19 07 mm Pin Outside Diameter 0 7476 0 7480 in 18 991 19 0 mm 0 7448 in 18 920 mm Oil Clearance 0 0002 0 0006 in 0 005 0 015 mm Hole Inside Diameter Pin Outside Diameter 0 8261 0 8266 in 20 983 20 996 mm 0 8264 0 8267 in 20 991 21 000 mm Reference Page 0 8295 in 21 07 mm 0 8232 in 20 91 mm Oil Clearance 0 0002 0 00067 in 0 005 0 017 mm Hole Inside Diameter 0 9048 0 9053 in 22 983 22 996 mm 0 90830 in 23 07 mm Pin Outside Diameter 0 9051 0 9055 in 22 991 23 000 mm 0 9020 in 22 91 mm Oil Clearance 0 0002 0 00067 in 0 005 0 017 mm LV Service Manual See Piston Piston Rings and Wrist Pin on page 6 45 YANMAR
