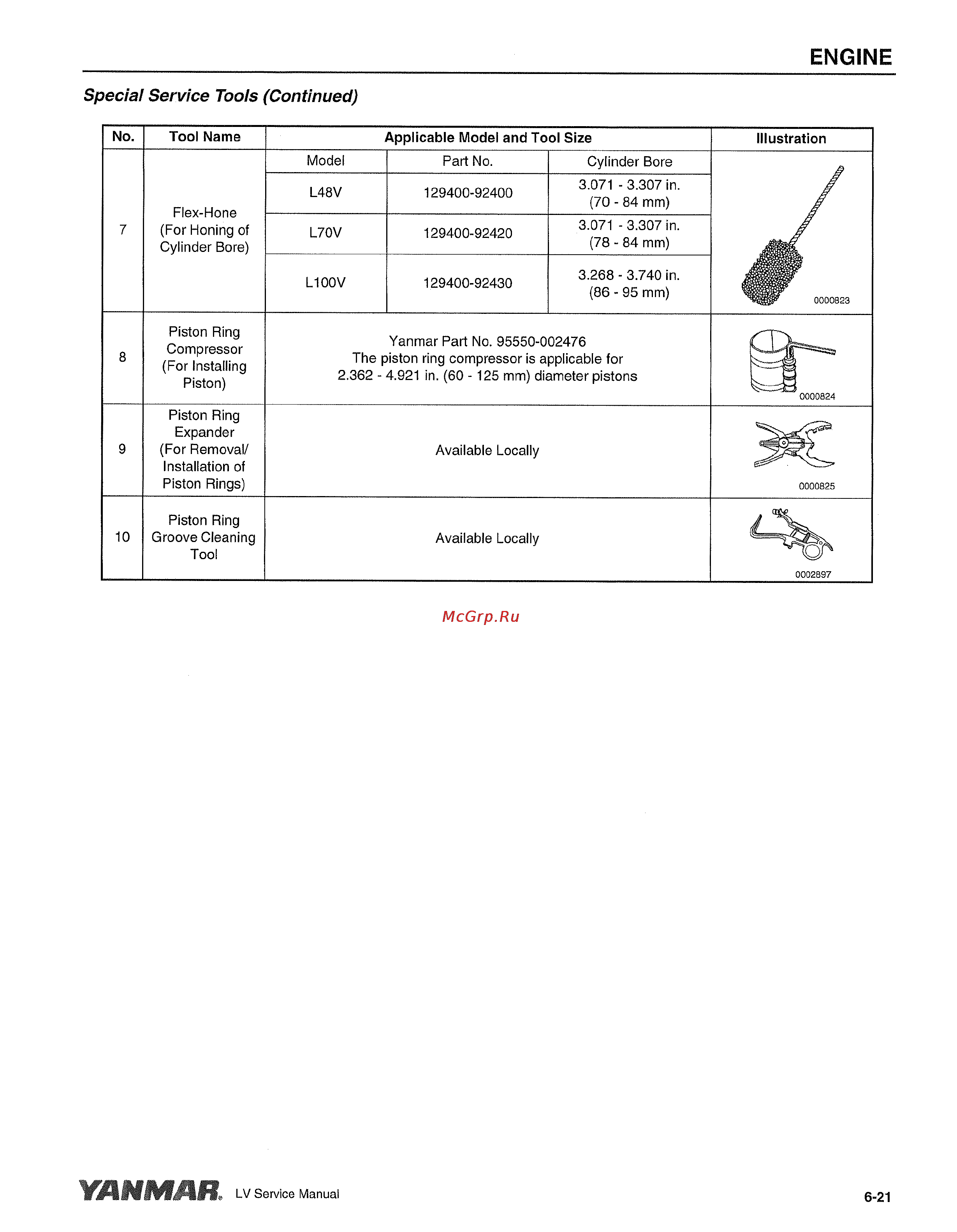

ENGINE Special Service Tools Continued No 7 8 Tool Name Flex Hone For Honing of Cylinder Bore Piston Ring Compressor For Installing Piston Applicable Model and Tool Size Illustration Model Part No Cylinder Bore L48V 129400 92400 3 071 3 307 in 70 84 mm L70V 129400 92420 3 071 3 307 in 78 84 mm L100V 129400 92430 3 268 3 740 in 86 95 mm Yanmar Part No 95550 002476 The piston ring compressor is applicable for 2 362 4 921 in 60 125 mm diameter pistons 0000823 10 g 3 0000824 9 10 Piston Ring Expander For Removal Installation of Piston Rings Available Locally Piston Ring Groove Cleaning Tool Available Locally 0000825 0002897 YANMAR LV Service Manual 6 21
