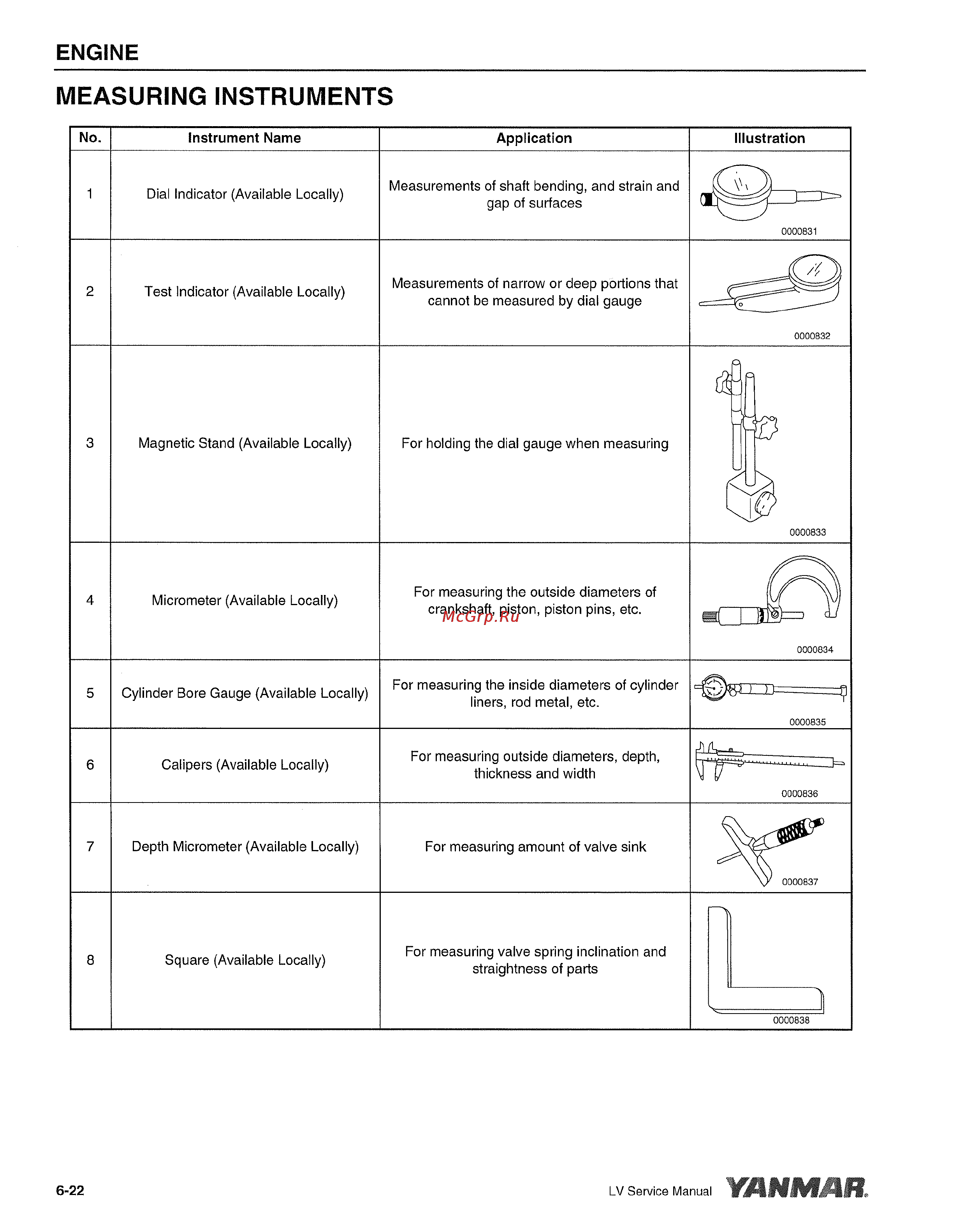

ENGINE MEASURING INSTRUMENTS No Instrument Name Application 1 Dial Indicator Available Locally Measurements of shaft bending and strain and gap of surfaces Illustration 0000831 2 Test Indicator Available Locally Measurements of narrow or deep portions that cannot be measured by dial gauge 0000832 J 3 Magnetic Stand Available Locally For holding the dial gauge when measuring By 0000833 4 Micrometer Available Locally For measuring the outside diameters of crankshaft piston piston pins etc j 0000834 5 Cylinder Bore Gauge Available Locally For measuring the inside diameters of cylinder liners rod metal etc 0000835 6 Calipers Available Locally For measuring outside diameters depth thickness and width 1 0000836 7 Depth Micrometer Available Locally For measuring amount of valve sink 8 Square Available Locally For measuring valve spring inclination and straightness of parts 0000838 6 22 LV Service Manual YANMAR
