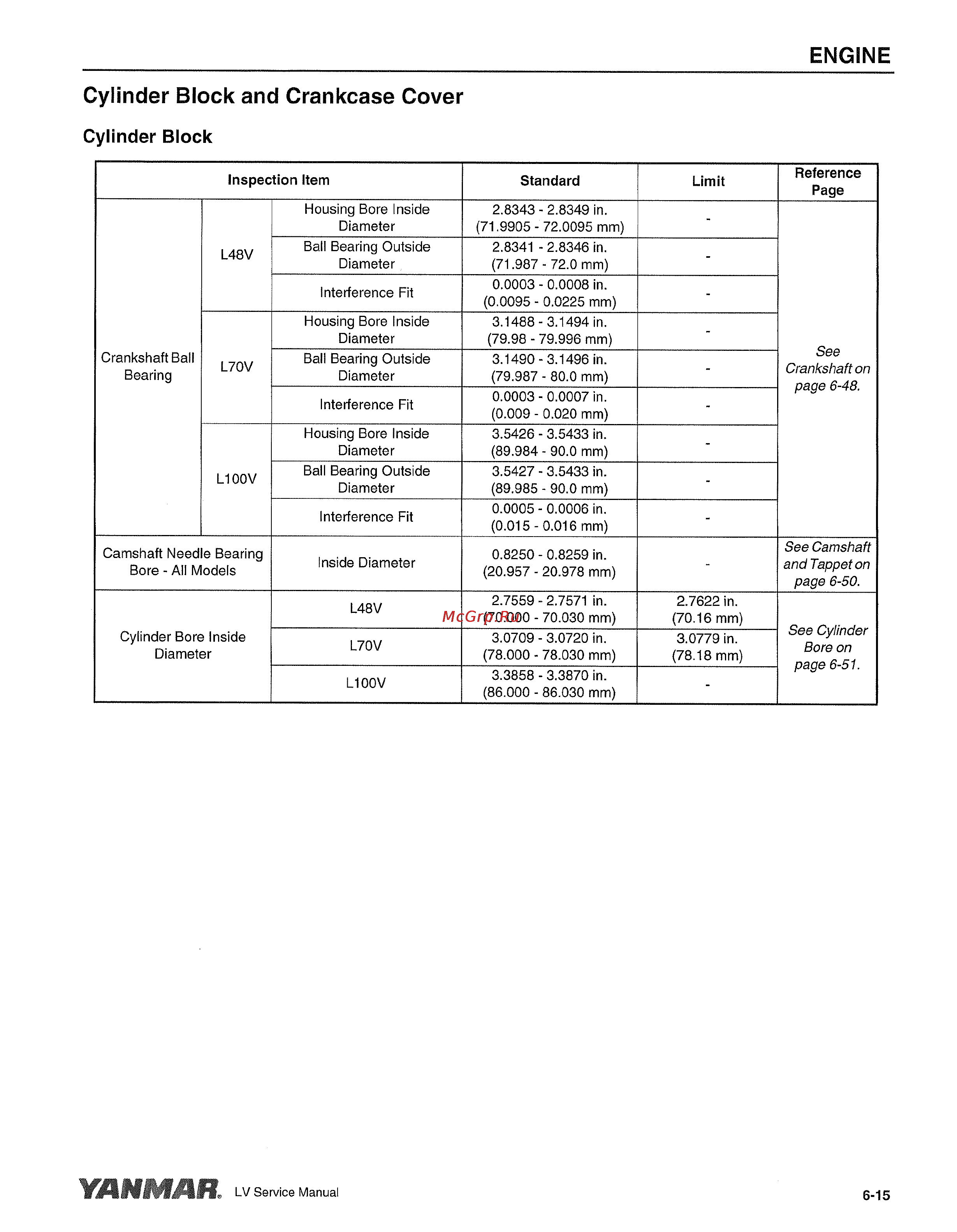

ENGINE Cylinder Block and Crankcase Cover Cylinder Block Inspection Item L48V Crankshaft Ball Bearing L70V L100V Camshaft Needle Bearing Bore All Models Standard Limit Housing Bore Inside Diameter 2 8343 2 8349 in 71 9905 72 0095 mm Ball Bearing Outside Diameter 2 8341 2 8346 in 71 987 72 0 mm Interference Fit 0 0003 0 0008 in 0 0095 0 0225 mm Housing Bore Inside Diameter 3 1488 3 1494 in 79 98 79 996 mm Ball Bearing Outside Diameter 3 1490 3 1496 in 79 987 80 0 mm Interference Fit 0 0003 0 0007 in 0 009 0 020 mm Housing Bore Inside Diameter 3 5426 3 5433 in 89 984 90 0 mm Ball Bearing Outside Diameter 3 5427 3 5433 in 89 985 90 0 mm Interference Fit 0 0005 0 0006 in 0 015 0 016 mm Inside Diameter 0 8250 0 8259 in 20 957 20 978 mm L48V 2 7559 2 7571 in 70 000 70 030 mm 2 7622 in 70 16 mm L70V 3 0709 3 0720 in 78 000 78 030 mm 3 0779 in 78 18 mm L100V 3 3858 3 3870 in 86 000 86 030 mm Cylinder Bore Inside Diameter LV Service Manual Reference Page See Crankshaft on page 6 48 See Camshaft and Tappet on page 6 50 See Cylinder Bore on page 6 51 6 15
