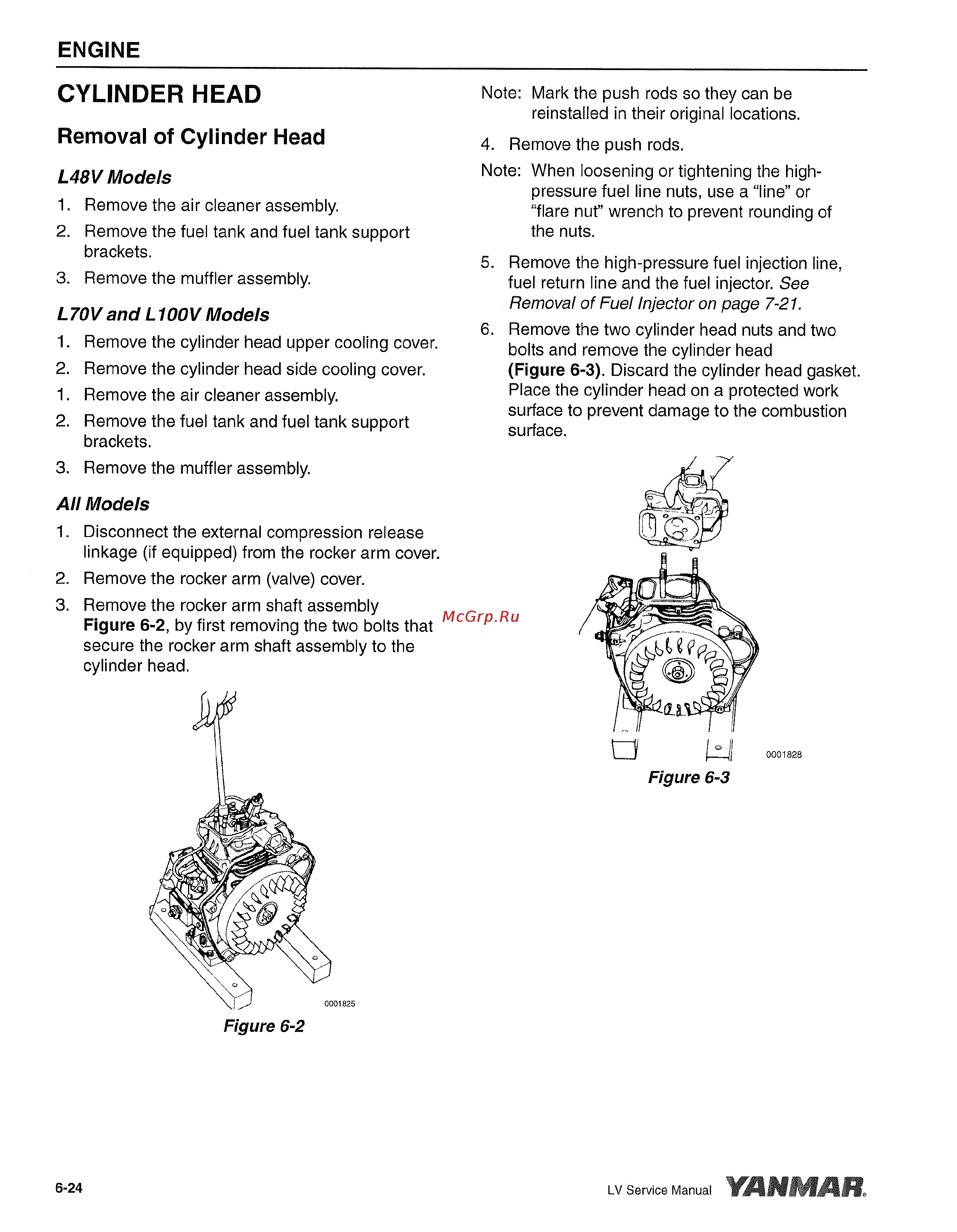

ENGINE CYLINDER HEAD Note Mark the push rods so they can be reinstalled in their original locations Removal of Cylinder Head 4 Remove the push rods L48V Models Note When loosening or tightening the highpressure fuel line nuts use a line or flare nut wrench to prevent rounding of the nuts 1 Remove the air cleaner assembly 2 Remove the fuel tank and fuel tank support brackets 3 Remove the muffler assembly L70V and L100V Models 1 Remove the cylinder head upper cooling cover 2 Remove the cylinder head side cooling cover 1 Remove the air cleaner assembly 2 Remove the fuel tank and fuel tank support brackets 5 Remove the high pressure fuel injection line fuel return line and the fuel injector See Removal of Fuel Injector on page 7 21 6 Remove the two cylinder head nuts and two bolts and remove the cylinder head Figure 6 3 Discard the cylinder head gasket Place the cylinder head on a protected work surface to prevent damage to the combustion surface 3 Remove the muffler assembly All Models 1 Disconnect the external compression release linkage if equipped from the rocker arm cover 2 Remove the rocker arm valve cover 3 Remove the rocker arm shaft assembly Figure 6 2 by first removing the two bolts that secure the rocker arm shaft assembly to the cylinder head iI 0001828 Figure 6 3 x v X X 0001825 Figure 6 2 6 24 LV Service Manual WlfOAB
