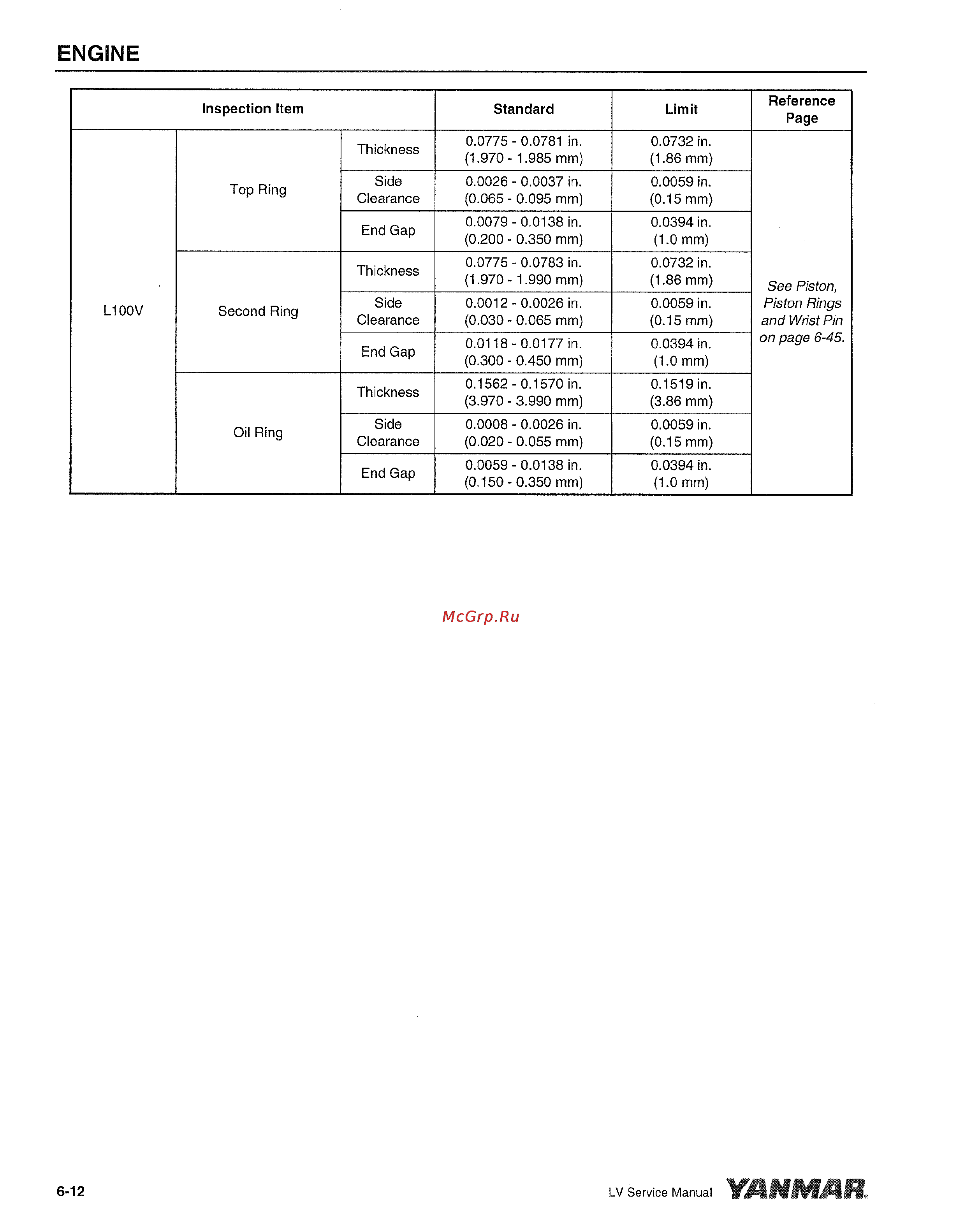

ENGINE Inspection Item Top Ring L1OOV Second Ring Oil Ring 6 12 Standard Limit Thickness 0 0775 0 0781 in 1 970 1 985 mm 0 0732 in 1 86 mm Side Clearance 0 0026 0 0037 in 0 065 0 095 mm 0 0059 in 0 15 mm End Gap 0 0079 0 0138 in 0 200 0 350 mm 0 0394 in 1 0 mm Thickness 0 0775 0 0783 in 1 970 1 990 mm 0 0732 in 1 86 mm Side Clearance 0 0012 0 0026 in 0 030 0 065 mm 0 0059 in 0 15 mm End Gap 0 0118 0 0177 in 0 300 0 450 mm 0 0394 in 1 0 mm Thickness 0 1562 0 1570 in 3 970 3 990 mm 0 1519 in 3 86 mm Side Clearance 0 0008 0 0026 in 0 020 0 055 mm 0 0059 in 0 15 mm End Gap 0 0059 0 0138 in 0 150 0 350 mm 0 0394 in 1 0 mm LV Service Manual Reference Page See Piston Piston Rings and Wrist Pin on page 6 45
