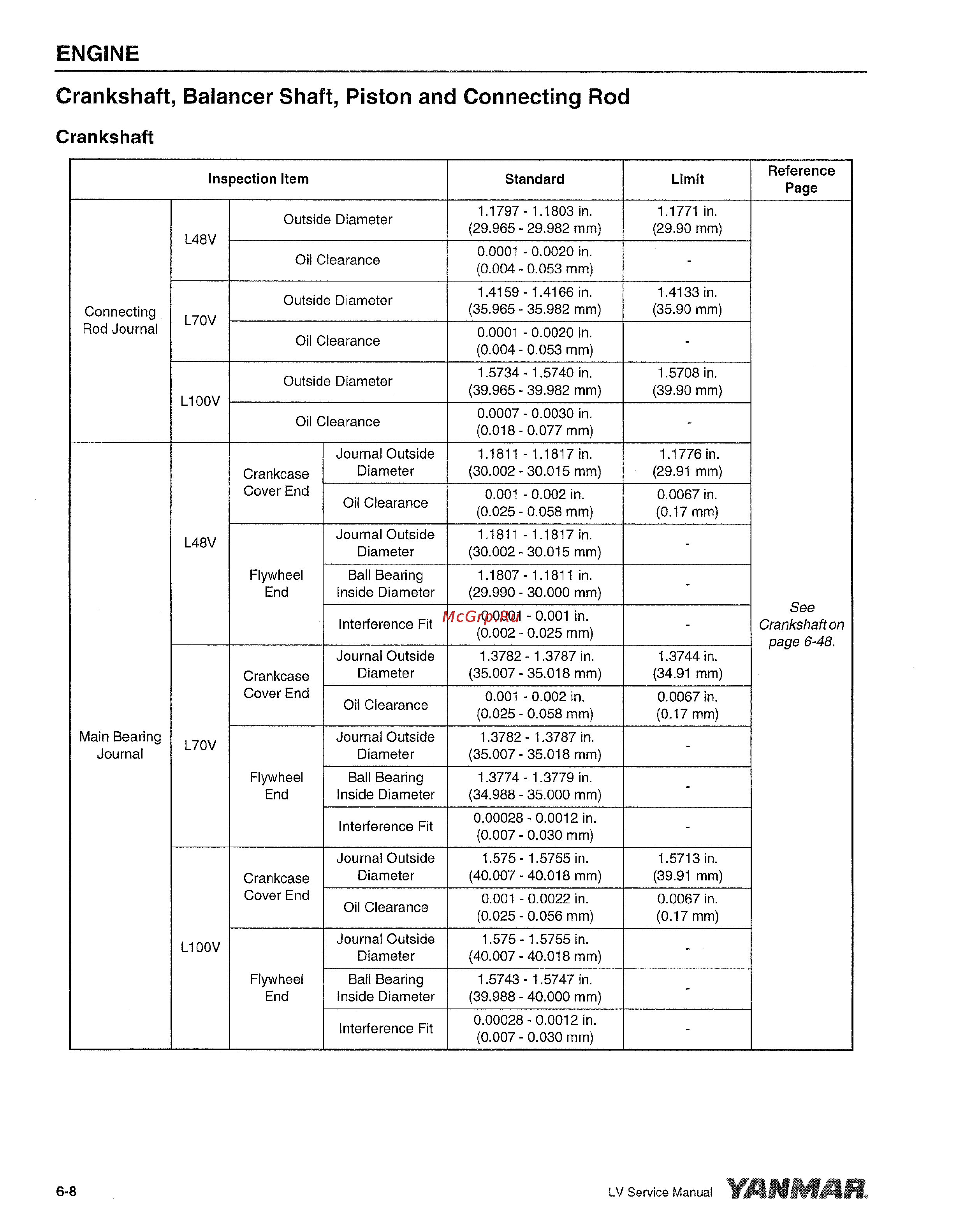

ENGINE Crankshaft Balancer Shaft Piston and Connecting Rod Crankshaft Inspection Item Standard Limit Outside Diameter 1 1797 1 1803 in 29 965 29 982 mm 1 1771 in 29 90 mm Oil Clearance 0 0001 0 0020 in 0 004 0 053 mm Outside Diameter 1 4159 1 4166 in 35 965 35 982 mm 1 4133 in 35 90 mm Oil Clearance 0 0001 0 0020 in 0 004 0 053 mm Outside Diameter 1 5734 1 5740 in 39 965 39 982 mm 1 5708 in 39 90 mm Oil Clearance 0 0007 0 0030 in 0 018 0 077 mm Journal Outside Diameter 1 1811 1 1817 in 30 002 30 015 mm 1 1776 in 29 91 mm Oil Clearance 0 001 0 002 in 0 025 0 058 mm 0 0067 in 0 17 mm Journal Outside Diameter 1 1811 1 1817 in 30 002 30 015 mm Ball Bearing Inside Diameter 1 1807 1 1811 in 29 990 30 000 mm Interference Fit 0 0001 0 001 in 0 002 0 025 mm Journal Outside Diameter 1 3782 1 3787 in 35 007 35 018 mm 1 3744 in 34 91 mm 0 001 0 002 in 0 025 0 058 mm 0 0067 in 0 17 mm L48V Connecting Rod Journal L70V L100V Crankcase Cover End L48V Flywheel End Crankcase Cover End Main Bearing Journal L70V Flywheel End Crankcase Cover End L100V Flywheel End 6 8 Oil Clearance Journal Outside Diameter 1 3782 1 3787 in 35 007 35 018 mm Ball Bearing Inside Diameter 1 3774 1 3779 in 34 988 35 000 mm Interference Fit 0 00028 0 0012 in 0 007 0 030 mm Journal Outside Diameter 1 575 1 5755 in 40 007 40 018 mm 1 5713 in 39 91 mm Oil Clearance 0 001 0 0022 in 0 025 0 056 mm 0 0067 in 0 17 mm Journal Outside Diameter 1 575 1 5755 in 40 007 40 018 mm Ball Bearing Inside Diameter 1 5743 1 5747 in 39 988 40 000 mm Interference Fit 0 00028 0 0012 in 0 007 0 030 mm LV Service Manual Reference Page See Crankshaft on page 6 48
