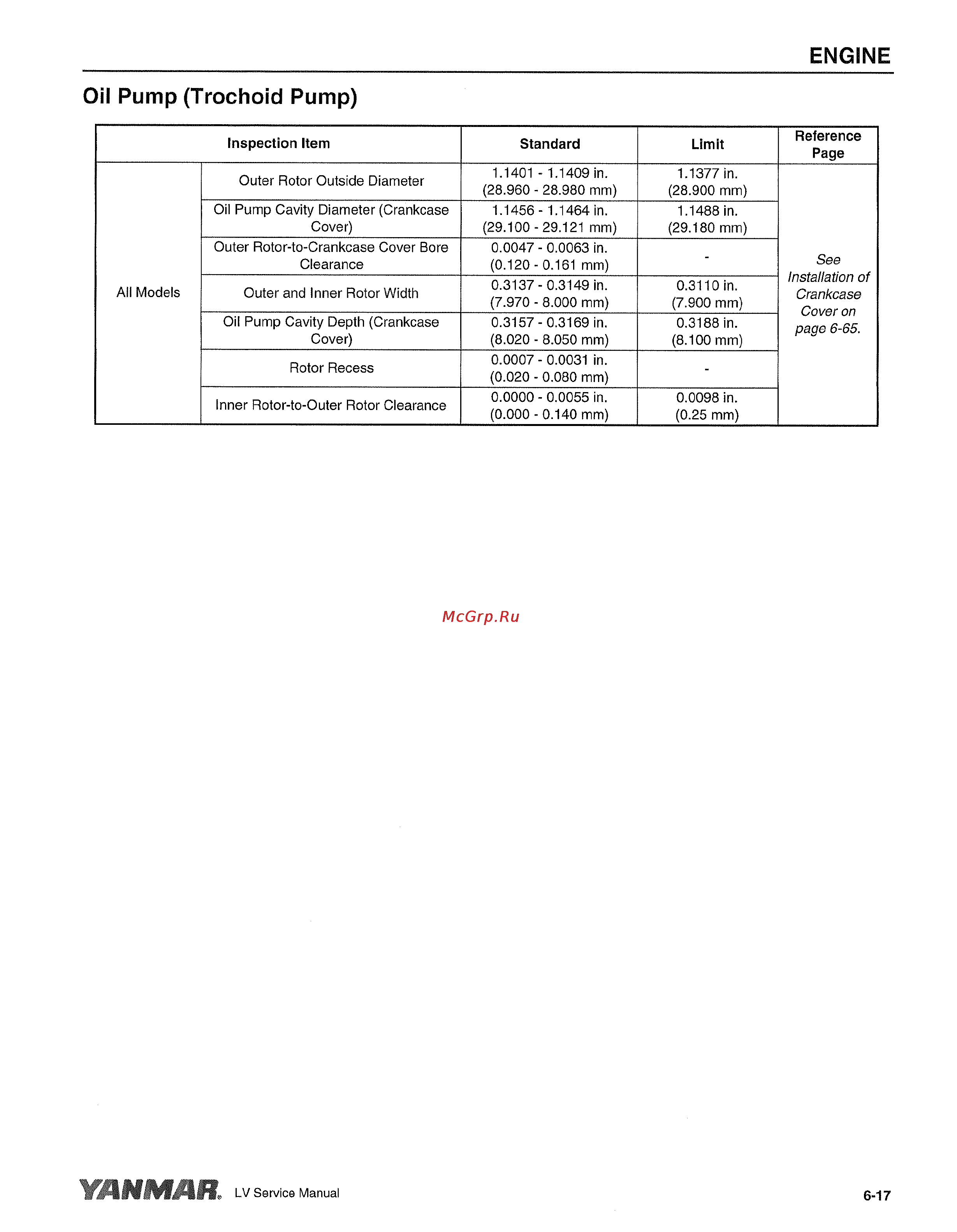

ENGINE Oil Pump Trochoid Pump Inspection Item All Models YANMML Standard Limit Outer Rotor Outside Diameter 1 1401 1 1409 in 28 960 28 980 mm 1 1377 in 28 900 mm Oil Pump Cavity Diameter Crankcase Cover 1 1456 1 1464 in 29 100 29 121 mm 1 1488 in 29 180 mm Outer Rotor to Crankcase Cover Bore Clearance 0 0047 0 0063 in 0 120 0 161 mm Outer and Inner Rotor Width 0 3137 0 3149 in 7 970 8 000 mm 0 3110 in 7 900 mm Oil Pump Cavity Depth Crankcase Cover 0 3157 0 3169 in 8 020 8 050 mm 0 3188 in 8 100 mm Rotor Recess 0 0007 0 0031 in 0 020 0 080 mm Inner Rotor to Outer Rotor Clearance 0 0000 0 0055 in 0 000 0 140 mm 0 0098 in 0 25 mm LV Service Manual Reference Page See Installation of Crankcase Cover on page 6 65 6 17
