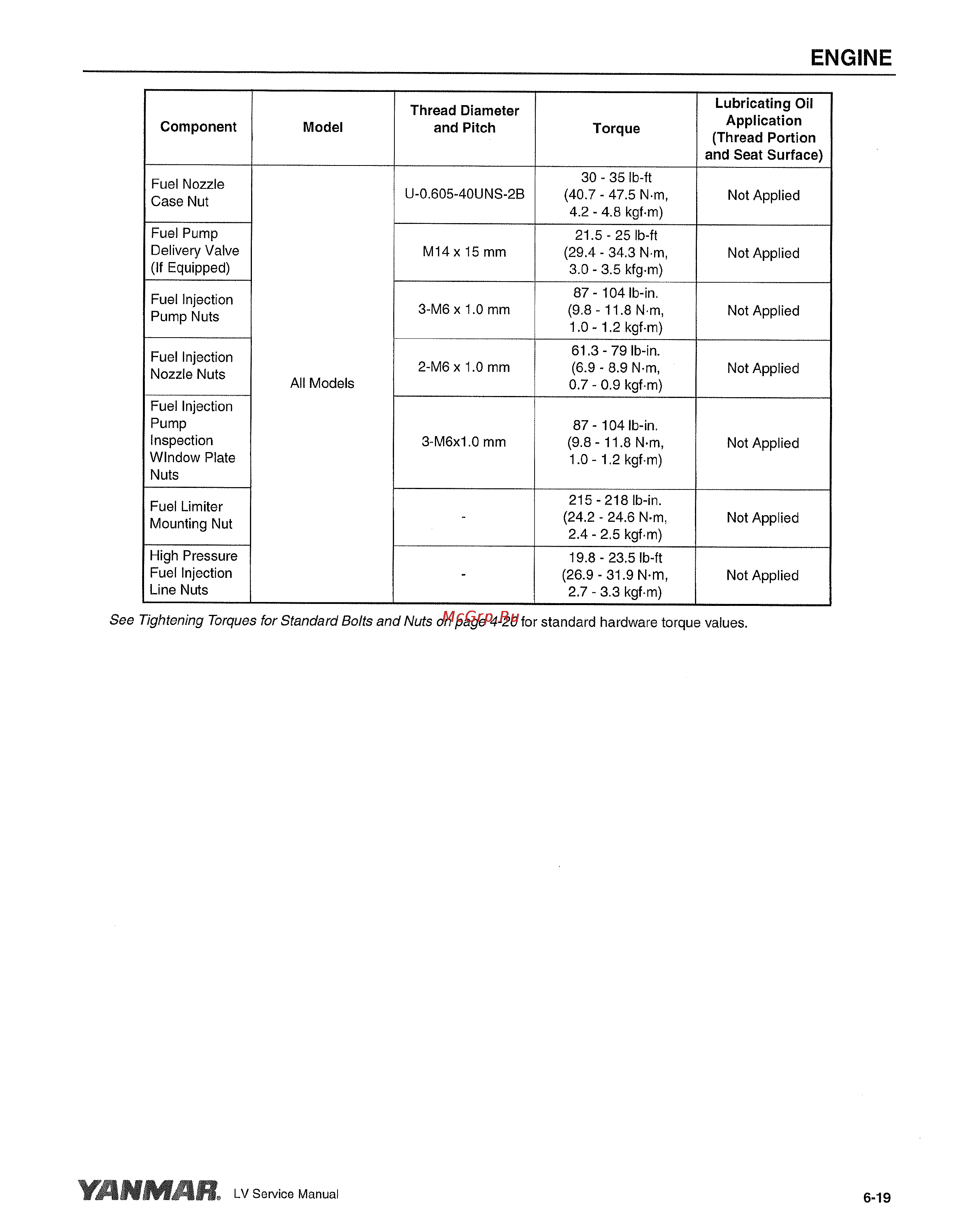

ENGINE Torque Lubricating Oil Application Thread Portion and Seat Surface U 0 605 40UNS 2B 30 35 Ib ft 40 7 47 5 N m 4 2 4 8 kgf m Not Applied Fuel Pump Delivery Valve If Equipped M14 x 15 mm 21 5 25 Ib ft 29 4 34 3 N m 3 0 3 5 kfg m Not Applied Fuel Injection Pump Nuts 3 M6 x 1 0 mm 87 104 lb in 9 8 11 8 N m 1 0 1 2 kgf m Not Applied Fuel Injection Nozzle Nuts 2 M6 x 1 0 mm 61 3 79 lb in 6 9 8 9 N m 0 7 0 9 kgf m Not Applied Fuel Injection Pump Inspection Window Plate Nuts 3 M6x1 0 mm 87 104 lb in 9 8 11 8 N m 1 0 1 2 kgf m Not Applied Fuel Limiter Mounting Nut 215 218 lb in 24 2 24 6 N m 2 4 2 5 kgf m Not Applied 19 8 23 5 Ib ft 26 9 31 9 N m 2 7 3 3 kgf m Not Applied Component Model Fuel Nozzle Case Nut Thread Diameter and Pitch All Models High Pressure Fuel Injection Line Nuts See Tightening Torques for Standard Bolts and Nuts on page 4 20 for standard hardware torque values LV Service Manual 6 19
