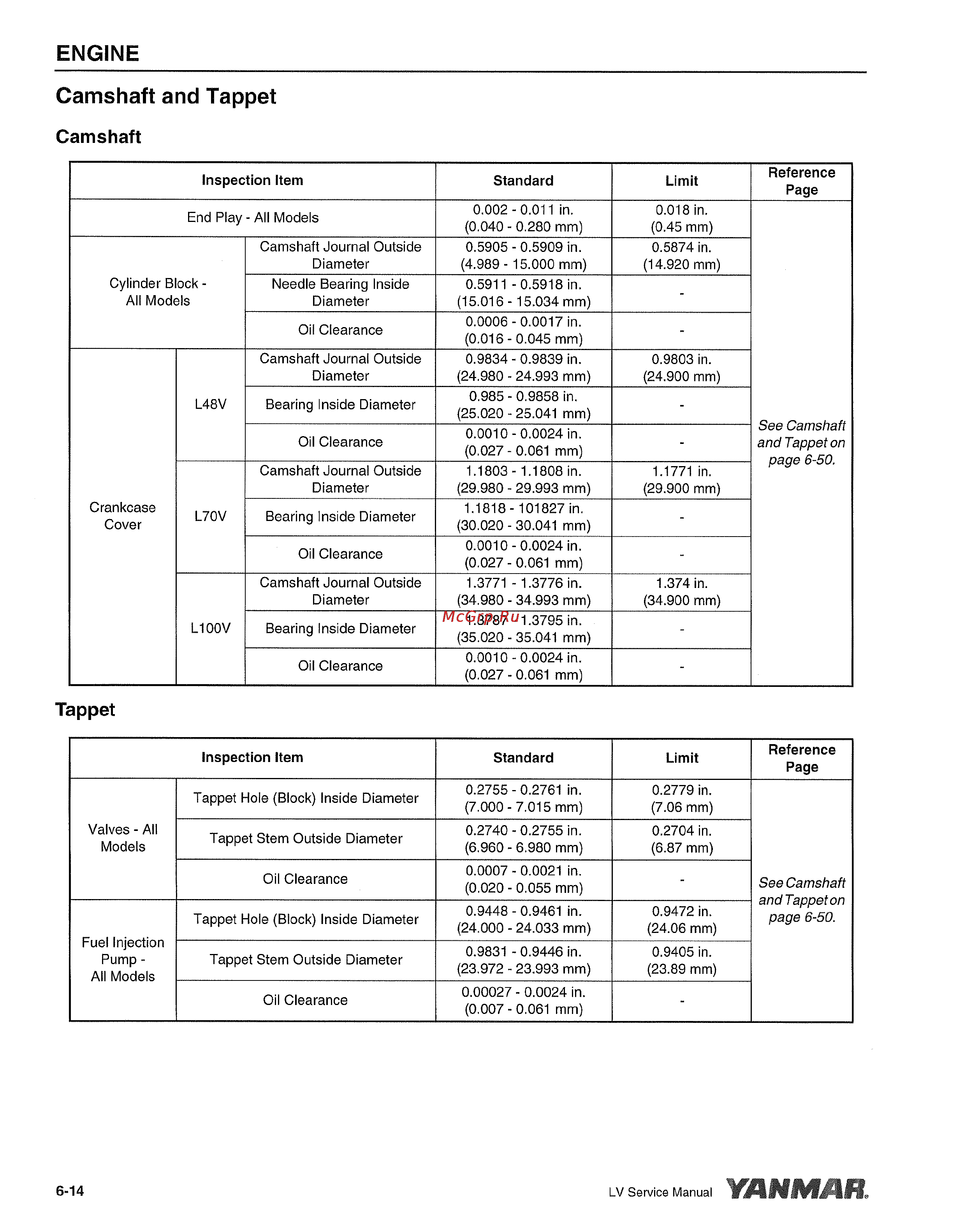

ENGINE Camshaft and Tappet Camshaft Standard Limit End Play All Models 0 002 0 011 in 0 040 0 280 mm 0 018 in 0 45 mm Camshaft Journal Outside Diameter 0 5905 0 5909 in 4 989 15 000 mm 0 5874 in 14 920 mm Needle Bearing Inside Diameter 0 5911 0 5918 in 15 016 15 034 mm Oil Clearance 0 0006 0 0017 in 0 016 0 045 mm Camshaft Journal Outside Diameter 0 9834 0 9839 in 24 980 24 993 mm 0 9803 in 24 900 mm Bearing Inside Diameter 0 985 0 9858 in 25 020 25 041 mm Oil Clearance 0 0010 0 0024 in 0 027 0 061 mm Camshaft Journal Outside Diameter 1 1803 1 1808 in 29 980 29 993 mm 1 1771 in 29 900 mm Bearing Inside Diameter 1 1818 101827 in 30 020 30 041 mm Oil Clearance 0 0010 0 0024 in 0 027 0 061 mm Camshaft Journal Outside Diameter 1 3771 1 3776 in 34 980 34 993 mm 1 374 in 34 900 mm Bearing Inside Diameter 1 3787 1 3795 in 35 020 35 041 mm Oil Clearance 0 0010 0 0024 in 0 027 0 061 mm Standard Limit Tappet Hole Block Inside Diameter 0 2755 0 2761 in 7 000 7 015 mm 0 2779 in 7 06 mm Tappet Stem Outside Diameter 0 2740 0 2755 in 6 960 6 980 mm 0 2704 in 6 87 mm Oil Clearance 0 0007 0 0021 in 0 020 0 055 mm Tappet Hole Block Inside Diameter 0 9448 0 9461 in 24 000 24 033 mm 0 9472 in 24 06 mm Tappet Stem Outside Diameter 0 9831 0 9446 in 23 972 23 993 mm 0 9405 in 23 89 mm Oil Clearance 0 00027 0 0024 in 0 007 0 061 mm Cylinder Block All Models L48V Crankcase Cover Reference Page Inspection Item L70V L100V See Camshaft and Tappet on page 6 50 Tappet Inspection Item Valves All Models Fuel Injection Pump All Models 6 14 Reference Page See Camshaft and Tappet on page 6 50 LV Service Manual YMNM IR
