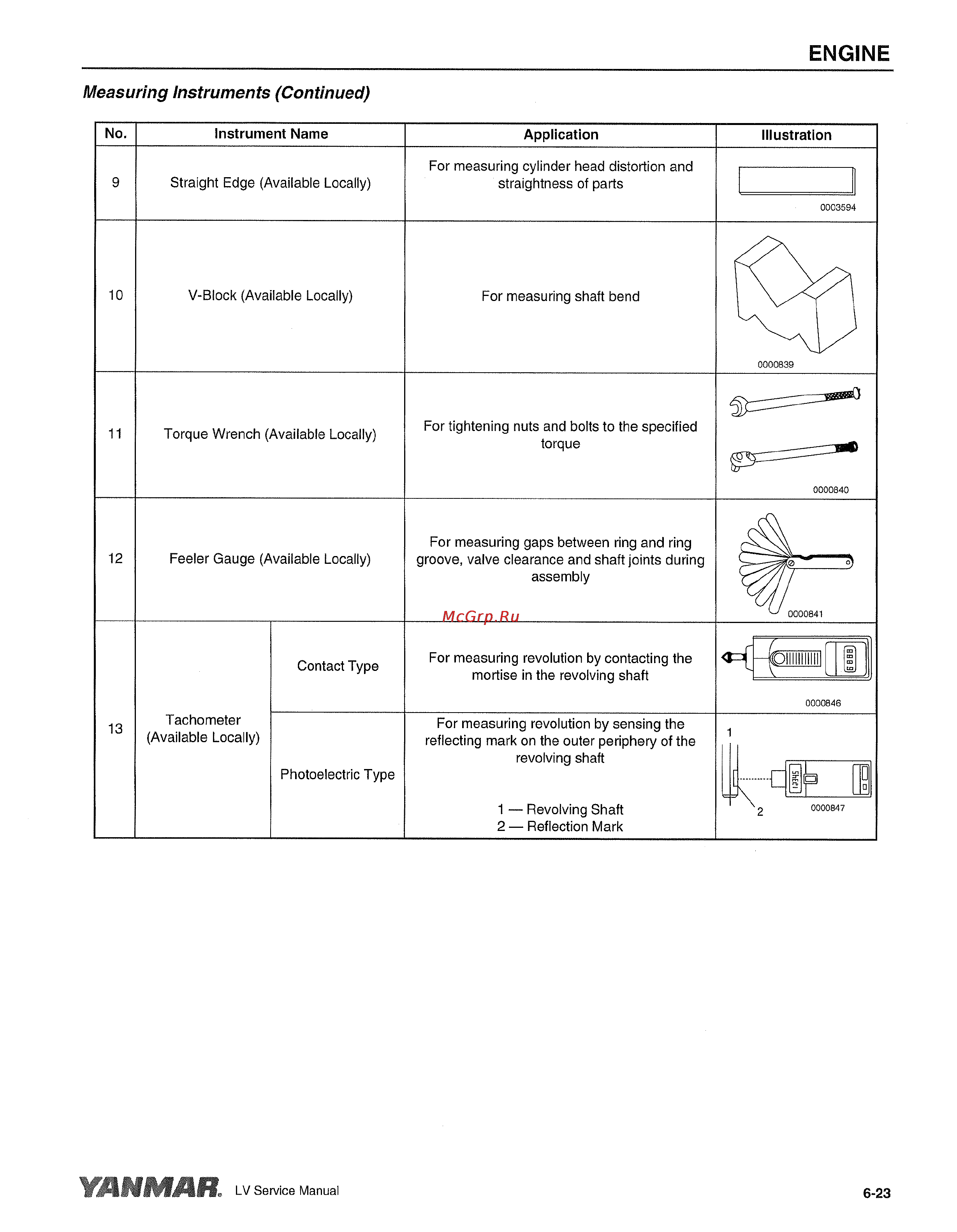

ENGINE Measuring Instruments Continued No Instrument Name Application 9 Straight Edge Available Locally For measuring cylinder head distortion and straightness of parts Illustration 0003594 10 V Block Available Locally For measuring shaft bend 0000839 11 Torque Wrench Available Locally For tightening nuts and bolts to the specified torque 0000840 12 Feeler Gauge Available Locally For measuring gaps between ring and ring groove valve clearance and shaft joints during assembly 0000841 Contact Type For measuring revolution by contacting the mortise in the revolving shaft 0000846 13 Tachometer Available Locally 00 o LV Service Manual cxi 1 Revolving Shaft 2 Reflection Mark s u Photoelectric Type _DL 8 ShEei 1 For measuring revolution by sensing the reflecting mark on the outer periphery of the revolving shaft 6 23
