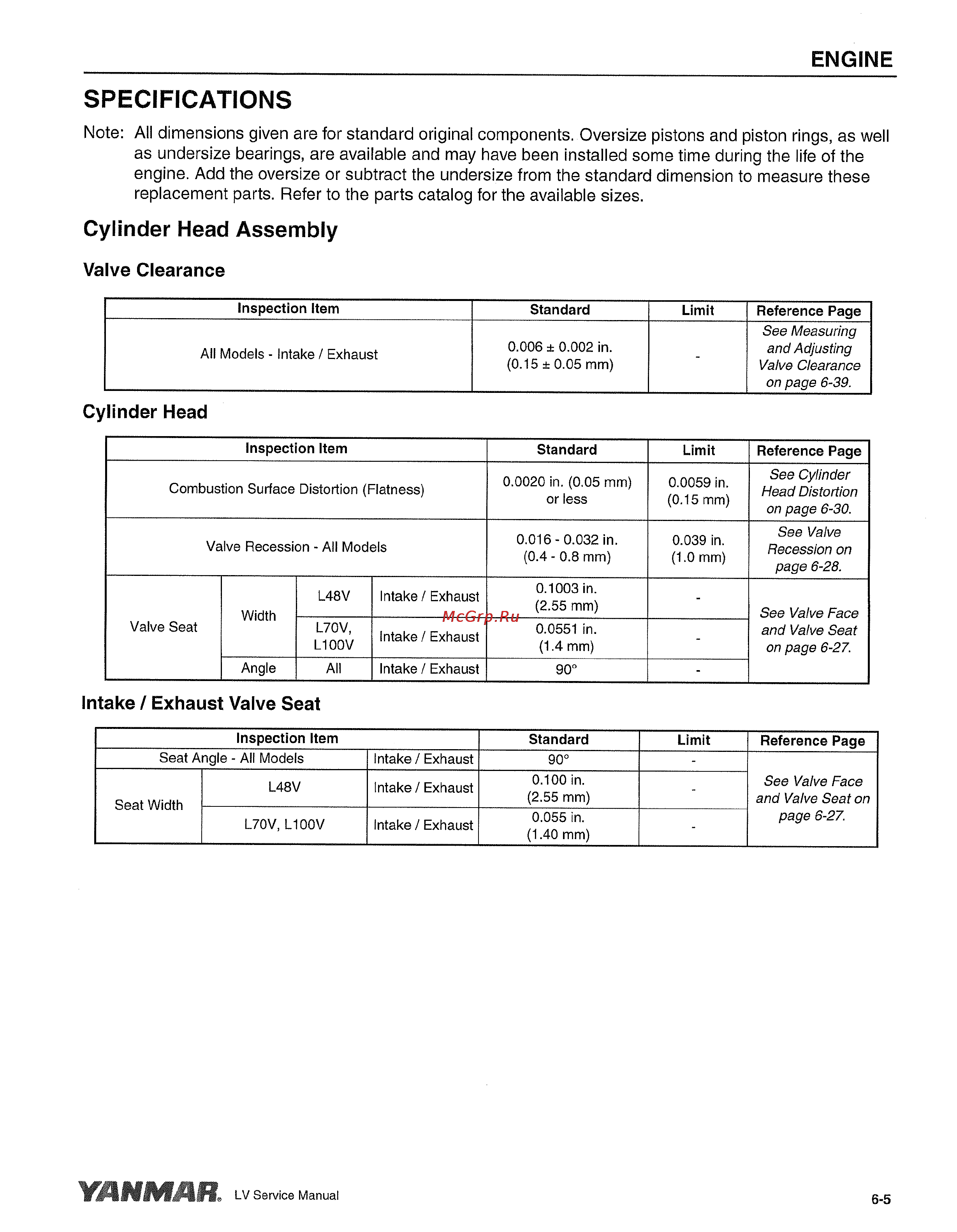

ENGINE SPECIFICATIONS Note All dimensions given are for standard original components Oversize pistons and piston rings as well as undersize bearings are available and may have been installed some time during the life of the engine Add the oversize or subtract the undersize from the standard dimension to measure these replacement parts Refer to the parts catalog for the available sizes Cylinder Head Assembly Valve Clearance Inspection Item Standard All Models Intake Exhaust 0 006 0 002 in 0 15 0 05 mm Limit Reference Page See Measuring and Adjusting Valve Clearance on page 6 39 Cylinder Head Inspection Item Standard Limit Reference Page Combustion Surface Distortion Flatness 0 0020 in 0 05 mm or less 0 0059 in 0 15 mm See Cylinder Head Distortion on page 6 30 Valve Recession All Models 0 016 0 032 in 0 4 0 8 mm 0 039 in 1 0 mm See Valve Recession on page 6 28 Intake Exhaust 0 1003 in 2 55 mm L70V L100V Intake Exhaust 0 0551 in 1 4 mm All Intake Exhaust 90 L48V Valve Seat Width Angle See Valve Face and Valve Seat on page 6 27 Intake Exhaust Valve Seat Inspection Item Seat Angle All Models Standard Limit Intake Exhaust 90 L48V Intake Exhaust 0 100 in 2 55 mm L70V L100V Intake Exhaust 0 055 in 1 40 mm Seat Width YANMAR LV Service Manual Reference Page See Valve Face and Valve Seat on page 6 27 6 5
