Asus z97-pro gamer [56/102] Configuring fans manually
![Asus z97-pro gamer [56/102] Configuring fans manually](/views2/1161715/page56/bg38.png)
2-12
Chapter 2: Getting started
Conguring fans manually

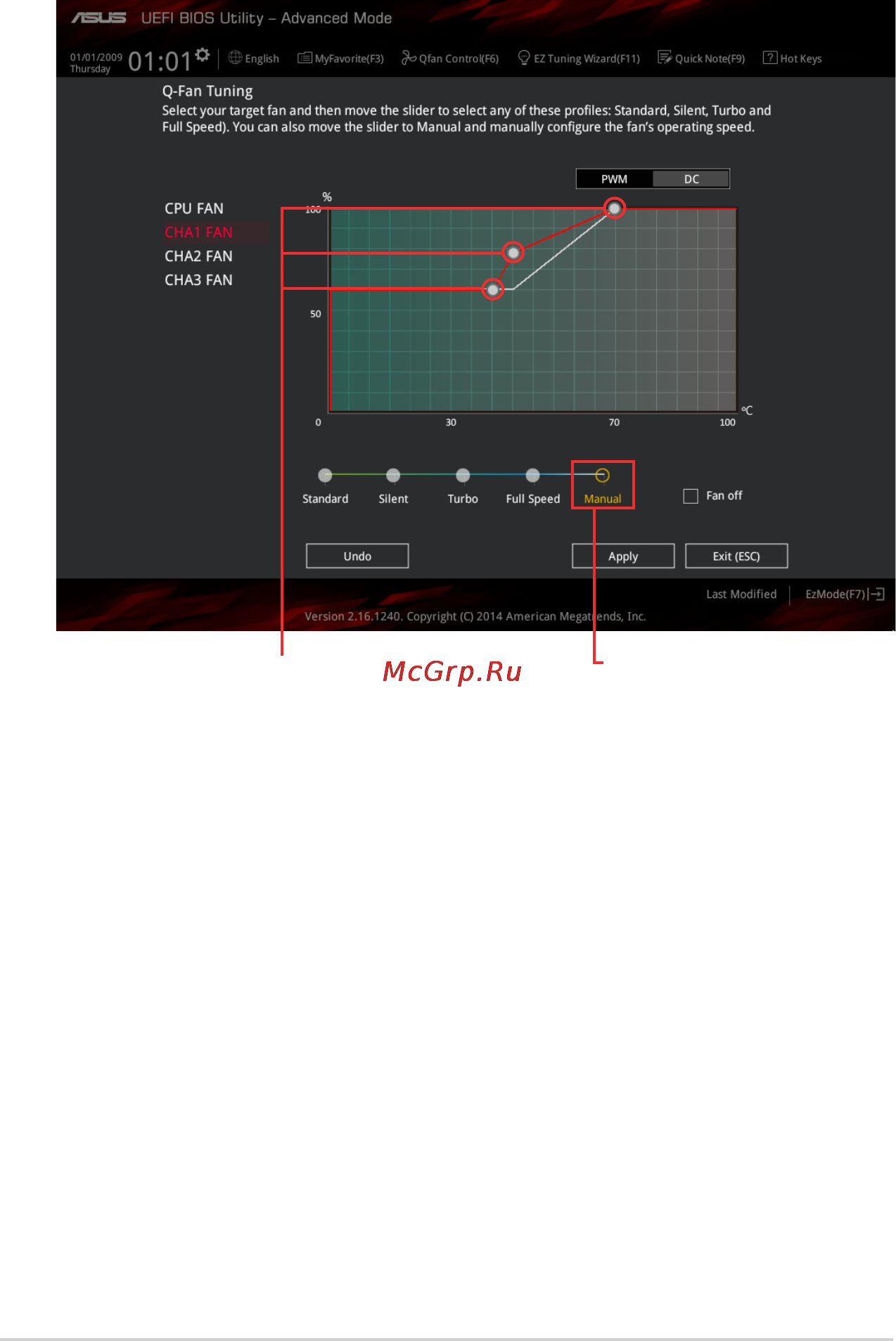

Select Manual from the list of proles to manually congure your fans’ operating speed.
To congure your fans:
1. Select the fan that you want to congure and to view its current status.
2. Click and drag the speed points to adjust the fans’ operating speed.
3. Click Apply to save the changes then click Exit (ESC).
Speed points
Click to manually congure
your fans
