ASUS TS700-E8-PS4, TS700-E8-RS8 7-7

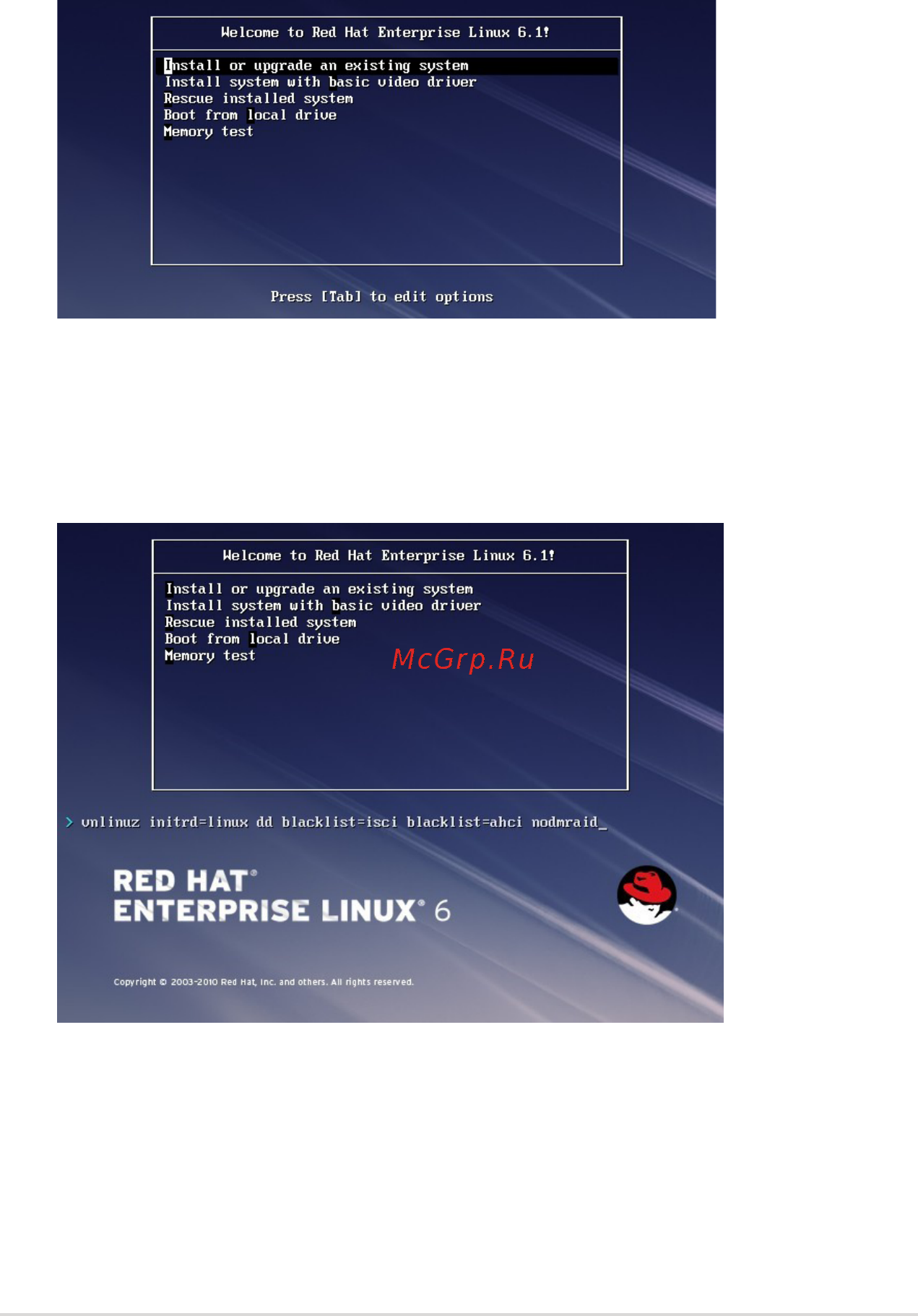

3. While booting from DVD, press <ESC> to give the third party driver. Enter the following
command at the boot: Linux dd blacklist=isci blacklist=ahci nodmraid,
then press <ENTER>.
Red Hat
®
Enterprise Linux OS 6.x
To install the LSI MegaRAID controller driver when installing Red Hat
®
Enterprise OS:
1. Boot the system from the Red Hat
®
OS installation CD.
2. Press <Tab> to edit options.
