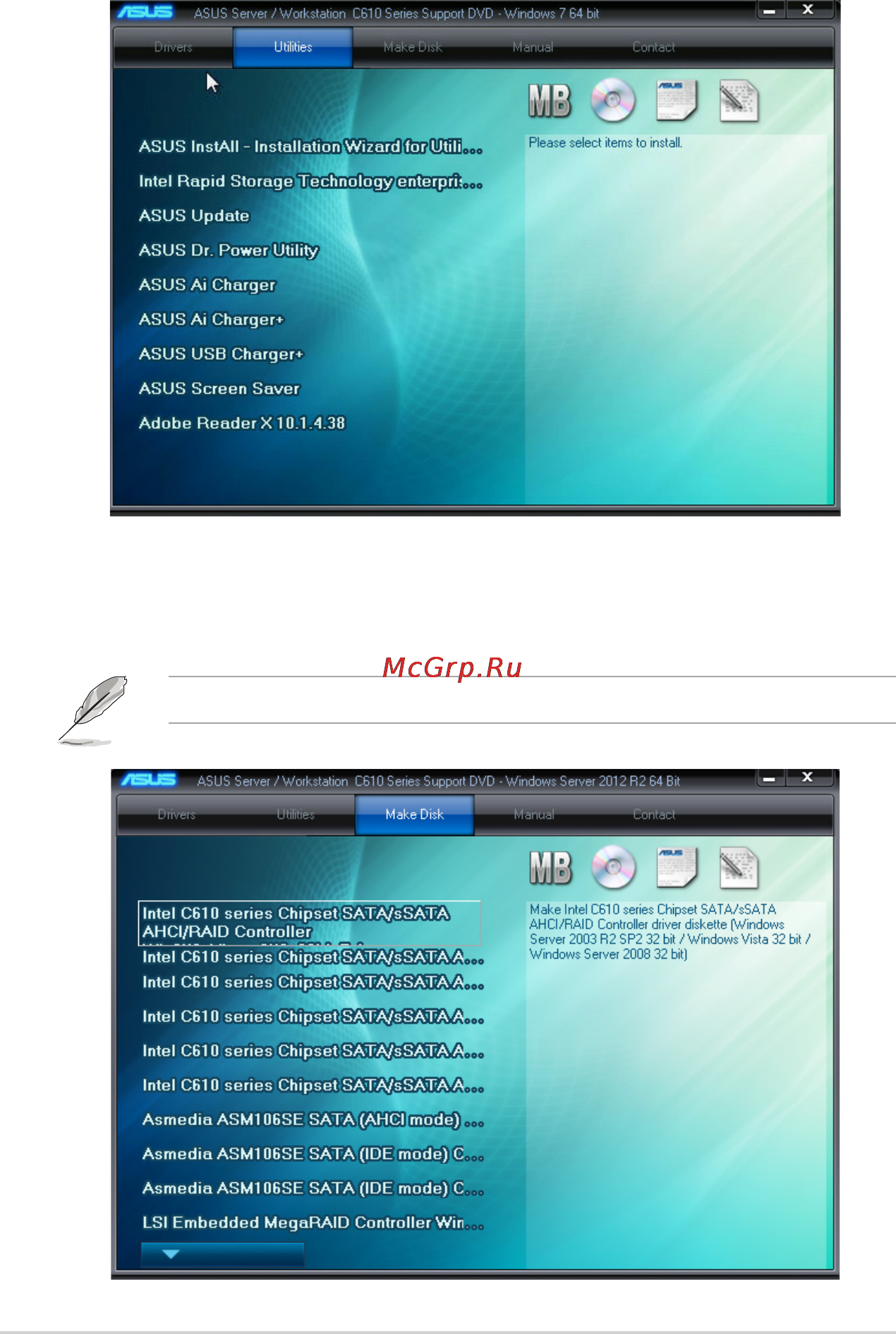

7-14 Chapter 7: Driver installation
The MakeDisk menu contains items to create the Intel RAID driver disks.
7.3.3 Make Disk menu
Press the arrow down button in the lower left part of the menu to view more items.
7.3.2 Utilities menu
The Utilities menu displays the software applications and utilities that the motherboard
supports.
