ASUS TS700-E8-PS4, TS700-E8-RS8
1-9

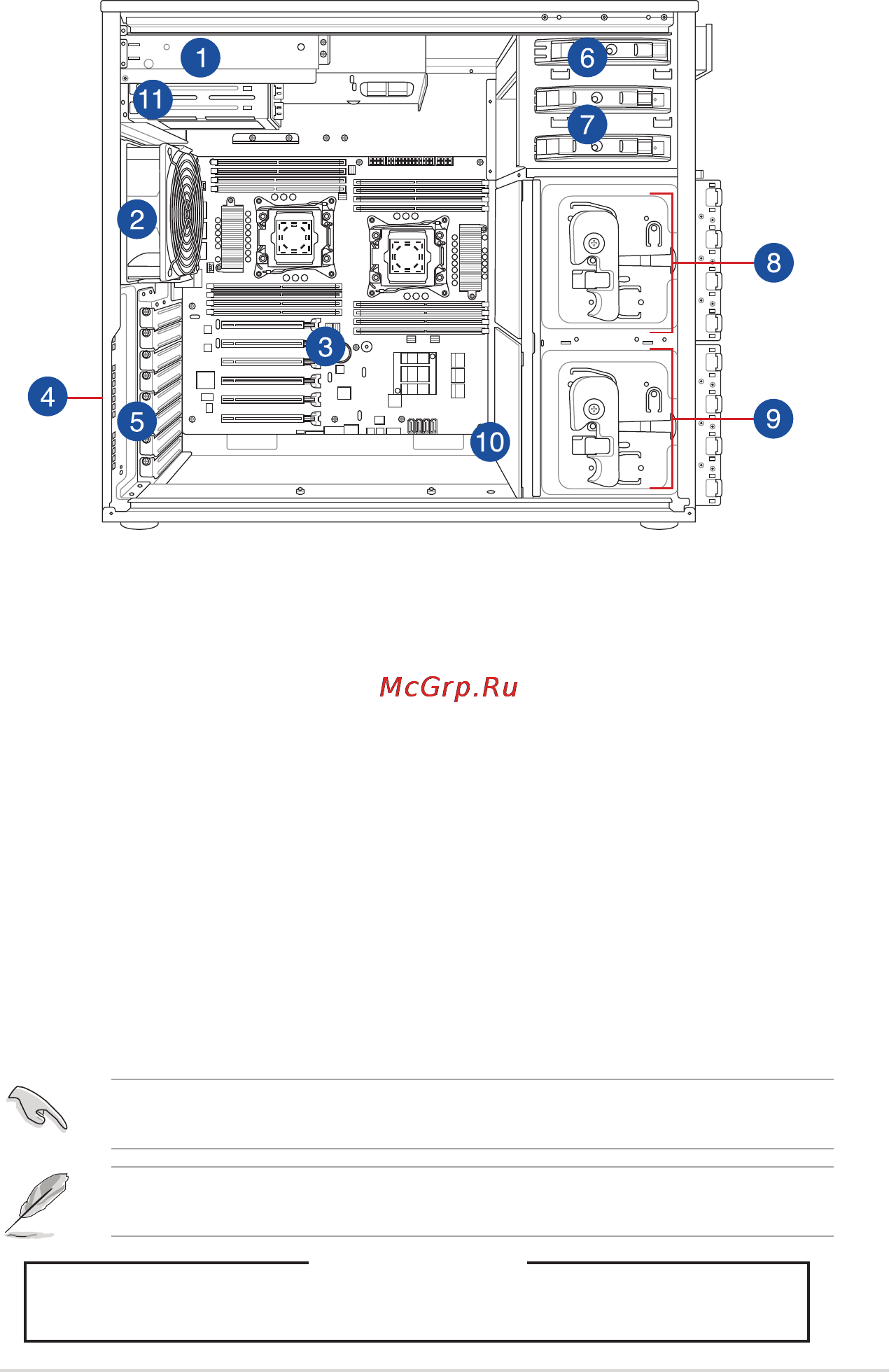

1.6 Internal features
The barebone server includes the basic components as shown.
1. 1200W 80PLUS Platinum Single Power Supply Module (TS700-E8-PS4) or
800W 80PLUS Gold 1+1 Redundant Power Supply Module (TS700-E8-RS8)
2. 120mm x 38mm system fan
3. ASUS Z10PE-D16 WS Server Board
4. Chassis intrusion switch
5. Expansion card locks
6. Optical drive (optional)
7. 2 x 5.25-inch drive bays
8. 4-bay HDD module (First set with backplane; TS700-E8-PS4 only supports this set)
9. 4-bay HDD module (Second set with backplane, TS700-E8-RS8 only)
10. 2 x 80mm x 38mm system fans (hidden beside the backplane)
11. 2 x 2.5-inch SSD bays (TS700-E8-RS8 only)
The barebone server does not include a oppy disk drive drive. Connect a USB oppy disk
drive to any of the USB ports on the front or rear panel if you need to use a oppy disk.
*WARNING
HAZARDOUS MOVING PARTS
KEEP FINGERS AND OTHER BODY PARTS AWAY
Turn off the system power and detach the power supply before removing or replacing any
system component.
