Chapter 2: Hardware setup
2-4
2.2 Central Processing Unit (CPU)
ThemotherboardcomeswithtwosurfacemountLGA2011-3socketsdesignedfortheIntel
®
XeonE5-2600v3familyprocessor.
• Uponpurchaseofthemotherboard,ensurethatthePnPcapisonthesocketand
thesocketcontactsarenotbent.ContactyourretailerimmediatelyifthePnPcap
ismissing,orifyouseeanydamagetothePnPcap/socketcontacts/motherboard
components.
• Keepthecapafterinstallingthemotherboard.ASUSwillprocessReturnMerchandise
Authorization(RMA)requestsonlyifthemotherboardcomeswiththecapontheLGA
2011-3socket.
• Theproductwarrantydoesnotcoverdamagetothesocketcontactsresultingfrom
incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP
cap.
2.2.1 Installing the CPU
To install a CPU:
1. LocatetheCPUsocketonthemotherboard.

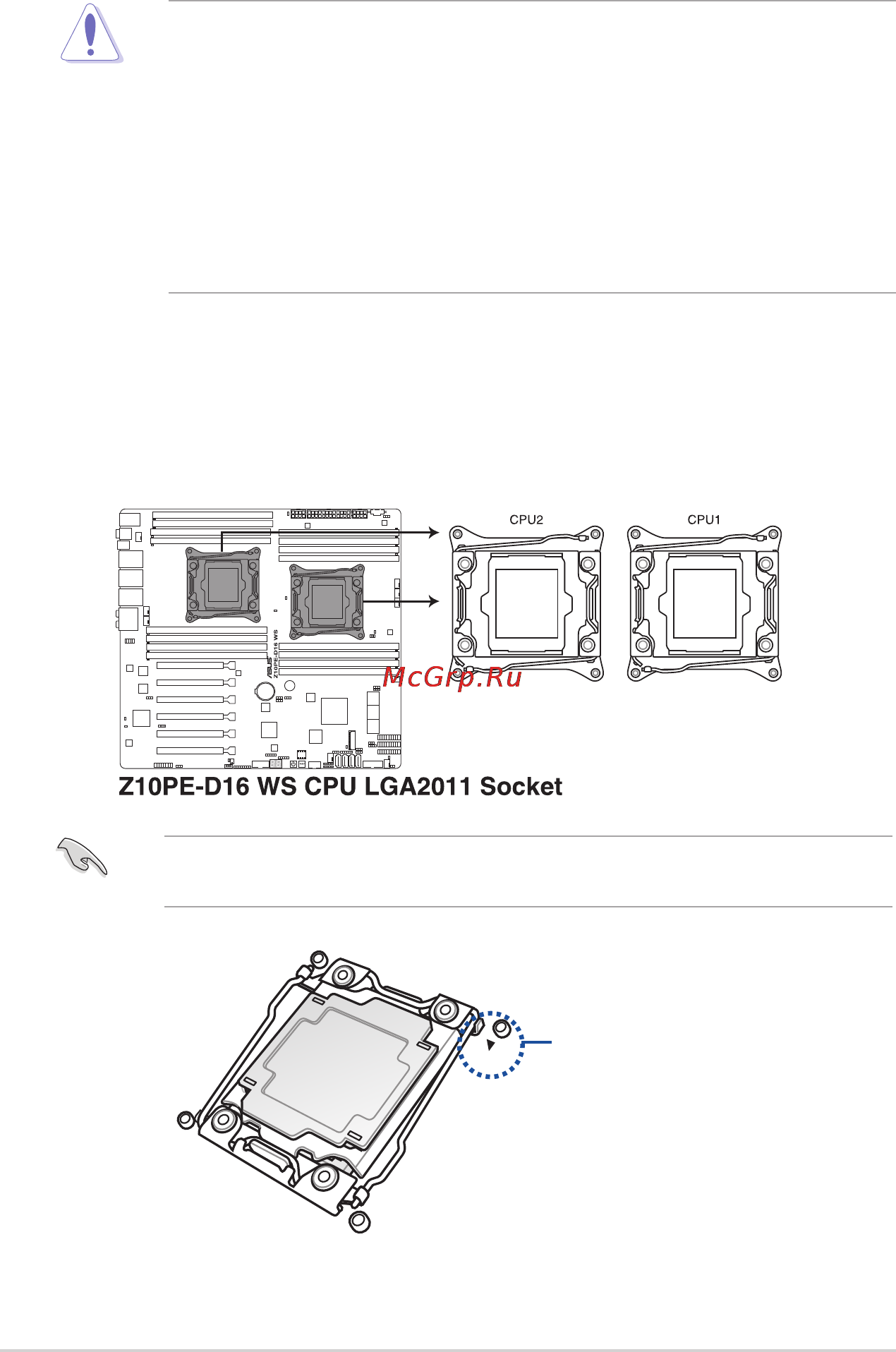

BeforeinstallingtheCPU,ensurethatthesocketboxisfacingtowardyouandthetriangle
mark is on the top-right position.
Triangle mark
