2-13
ASUS TS700-E8-PS4, TS700-E8-RS8
2.4 Front panel assembly
Beforeyoucaninstalla5.25-inchdrive,youshouldrstremovethefrontpanelassembly(front
bezelandfrontpanelcover).

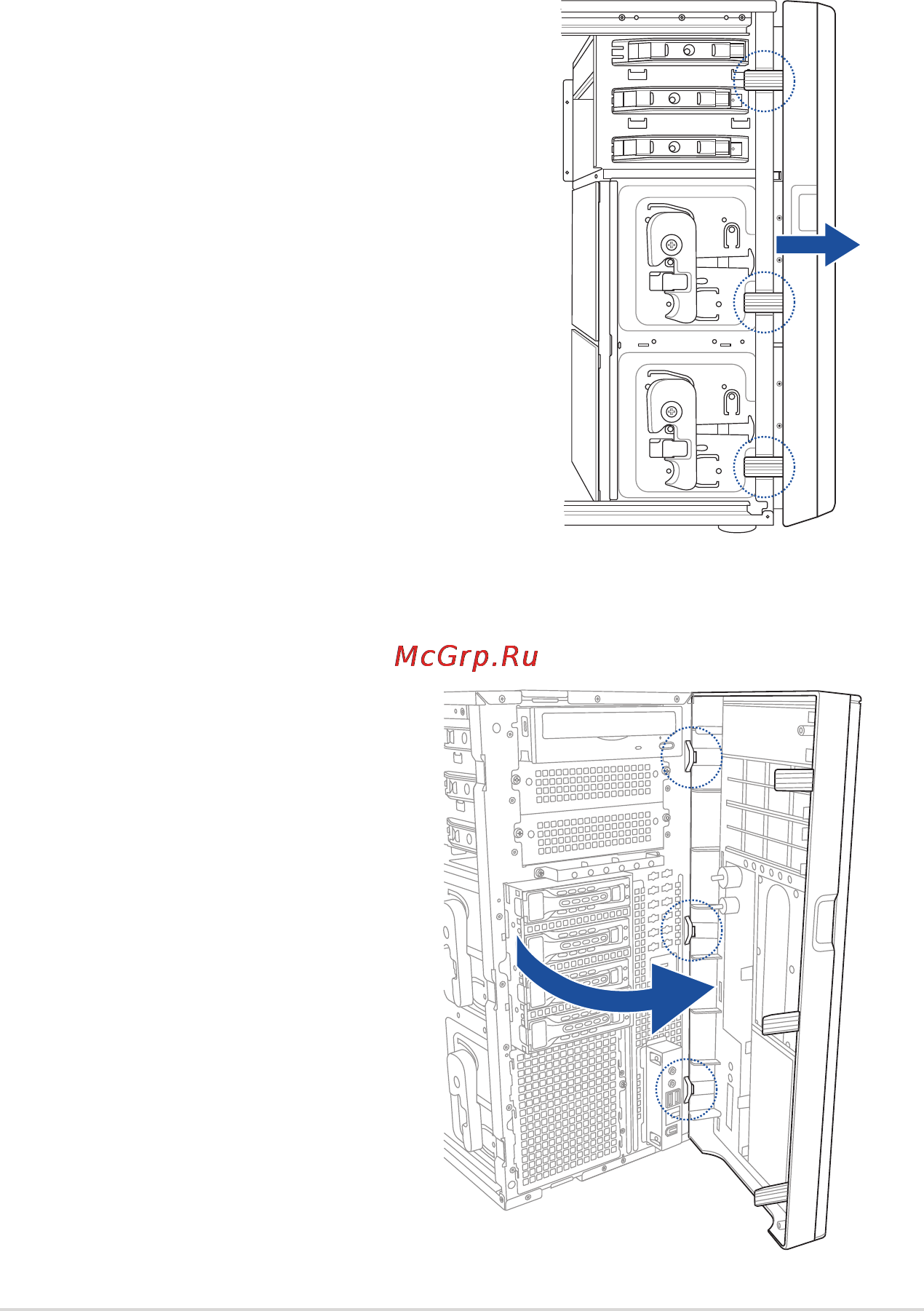

2.4.1 Removing the front panel assembly
To remove the front panel assembly
1. Locatethethreehookedtabsonthechassisside
rail.
2. Shiftthehookedtabsandtakeoffthefrontbezel.
2.4.2 Reinstalling the front panel assembly
To reinstall the front panel assembly:
1. Hooktheothersideofthefrontpanel
assemblytothechassis.
2. Swingthefrontpanelassemblyand
snapitbackintoplace.
